Home > Products > Beveling machine > Fully hydraulic internal expansion pipe end face beveling machine
Fully hydraulic internal expansion pipe end face beveling machine
- 100 Unit / Units per Month
- Tianjin
- T/T
- 5 days
- DENOH T-type internal expansion pipe beveling machine
- DENOH Electric steel plate beveling machine
- DENOH,Y-type internal expansion pipe beveling machine
- DENOH Electric steel plate beveling machine,Bevel the end face of the pipeline
- DENOH CNC system Pipeline oblique cutting machine
- DENOH Pipeline flame cutting beveling machine,V-shaped hot cutting grooves
Product Details
Brand Name: | Denoh | Place of Origin: | China | Model Number: | DW-PK48 |
After-sales Service Provided: | Engineers available to service machinery overseas | Warranty: | 1 Year |
Packaging Details
wooden framed case
Product Description
Beveling machine
The PK series pipeline end face beveling machine is suitable for pipes with diameters ranging from 323mm to 1422mm, with a maximum beveling wall thickness of 31.75mm
The product is applied to; Pipeline field construction in industries such as petroleum, chemical, natural gas, electricity, water conservancy, medical, and marine industries.Long distance pipelines, prefabricated pipeline production lines, internal expansion grooves, and end face grooves
2. Internal expansion hydraulic tightening mechanism: fast automatic centering and positioning, strong tightening force, replaceable tightening module to achieve cross pipe diameter tightening and centering;

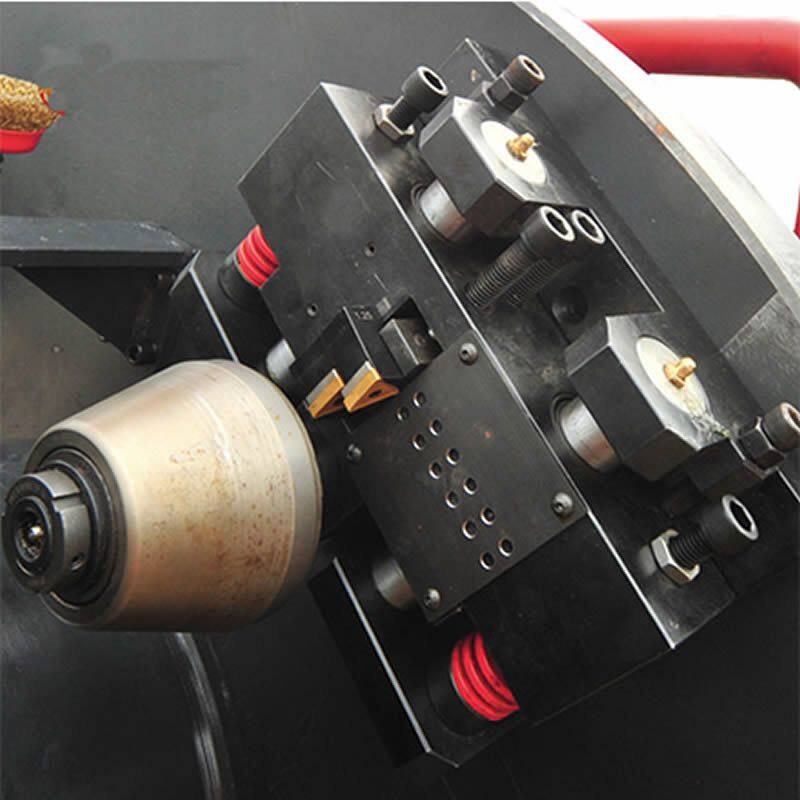

3. Inner wall tracking floating tool holder: The tool floats and cuts along the inner wall of the pipe, effectively ensuring an accuracy of ± 0.05mm on the groove surface of the processed pipeline
4. Triangle alloy blade: The three edges can be cut to effectively increase the service life; Blade cutting speed 110m/min, cutting thickness 0.2-1.0mm
5. No need for cutting liquid cold cutting;
6. Modular control system: easy to operate, beautiful and elegant panel.
7. Cutting feed: Independent module control achieves stable and reliable cutting feed and reverse movement
8. Cutting power source: Adopting double large torque cycloidal hydraulic motor internal gear transmission, it has small volume, strong power, low energy consumption, low noise, and strong reliability.
9. Inner and outer wall polishing brush: One process simultaneously completes the welding seam joint groove and polishing
10. Suitable for groove processing before fully automatic welding of long-distance pipelines;
11. Suitable for prefabrication production lines, onboard and field construction operations

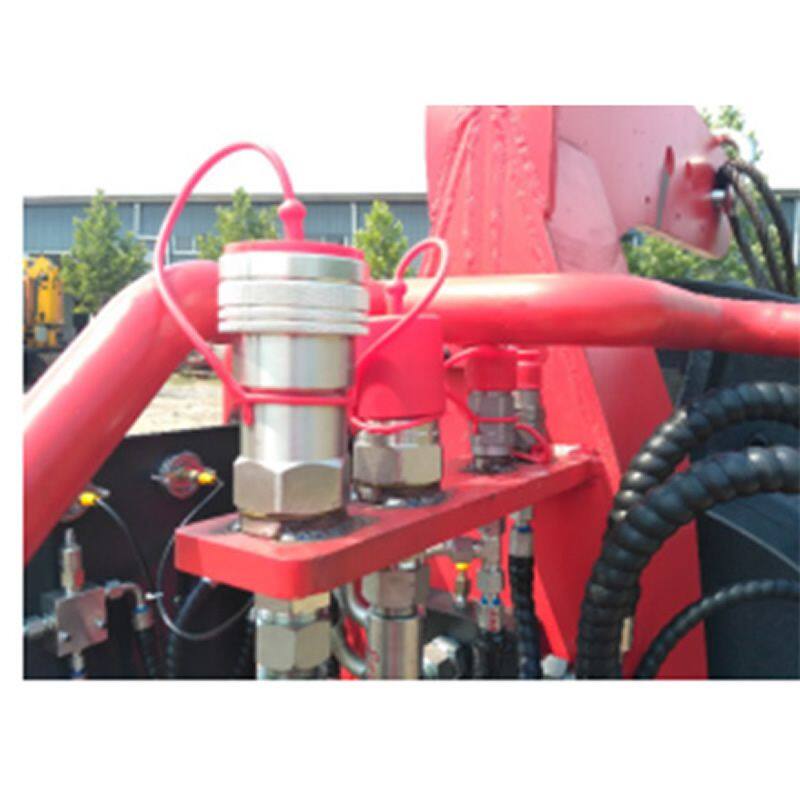

12. Hydraulic pump station: It is the power source provided by the hydraulic pipeline end face beveling machine. Our company adopts a pry mounted hydraulic station, which can be either internal combustion or electric. The internal combustion type is suitable for outdoor operations, and the electric type is mainly used for ship or prefabricated pipeline operations.
13. The end face beveling machine can be customized with pure electric (motor) drive
