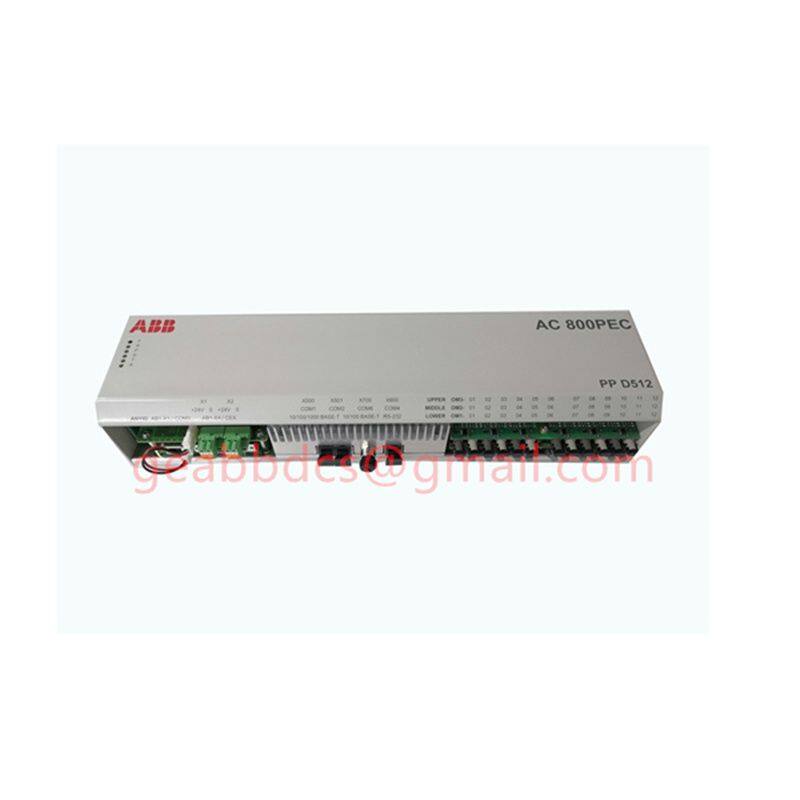

PPD512 A10-454000 Control card processor frequency converter module

Bus data interface

*9-pin Sub_ D-jack connector, pin definition in accordance with Profibus DP protocol specifications

*Supports Profibus DP bus standard

*Signal delay (electrical port): ≤ 4Bit

*Communication speed: 9.6Kbps, 19.2 Kbps, 45.45Kbps, 93.75Kbps, 187.5Kbps, 500Kbps, 1.5Mbps, 3Mbps, 6Mbps, 12Mbps

*Equipped with 4000V lightning protection, 1.5A overcurrent protection, and 600W surge protection functions

*Terminal resistance: This device does not come with a terminal resistance, please connect it externally as needed

*Terminal resistance: This device does not come with a terminal resistance, please connect it externally as needed

Power supply and protection

*Power supply: Dual power redundant input, DC (12-36V), typical DC24V, power consumption less than 4W, with reverse protection function, industrial terminal interface

*Relay alarm output: Bus data interface fault alarm output, contact capacity: DC48V/1 A, industrial terminal interface

mechanical properties

*External dimensions: (136x106x54) mm

*Shell: IP30 protection level, corrugated aluminum reinforced casing

*Installation method: 35mm guide rail installation

*Net weight: 800g

work environment

*Working temperature: -10 ℃~70 ℃, optional wide temperature product (-40~85 ℃)

*Storage temperature: -40 ℃~85 ℃

*Relative humidity: ≤ 90% (non condensing)
