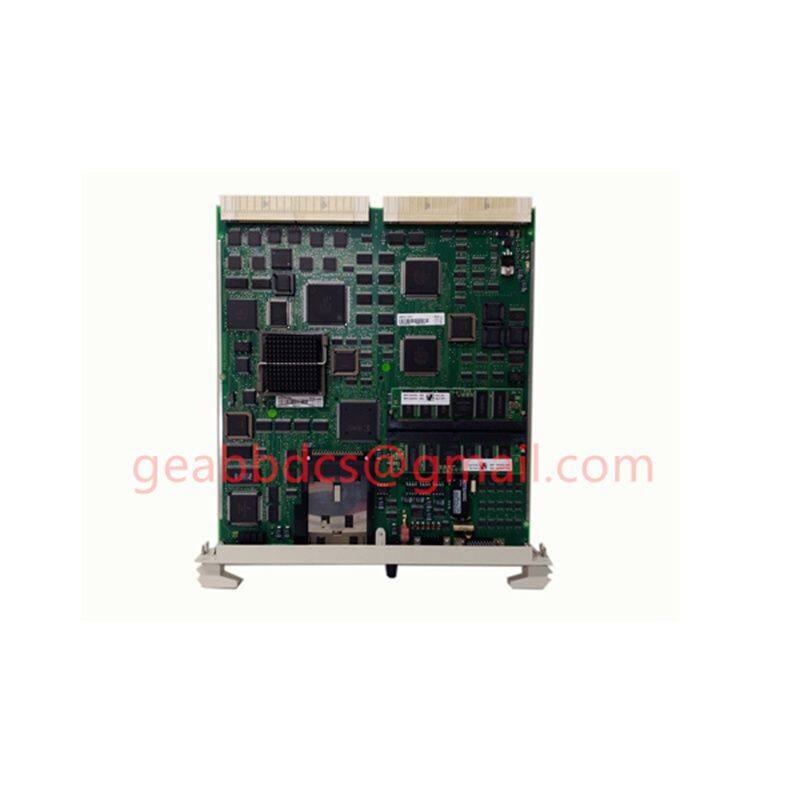

PM876 Input/output Processor

This product is a Profibus DP protocol type fieldbus redundant link module that enables the mutual conversion of single bus (M port) and dual redundant bus (A, B port). It can convert a single cable bus into a redundant Profibus DP bus or a redundant Profibus DP main line into a single cable bus. The data received from port M is broadcasted to ports A and B, but the data from ports A or B is forwarded to port M on a first come selection basis, establishing only one working path at the same time. The device monitors communication status in real-time, and when the receiver of the working port detects a bus fault, it switches to a redundant port, and vice versa. The device supports setting fixed or adaptive rates with dial switches, and supports 10 commonly used rates on the Profibus DP bus.

This device can be directly placed behind the Profibus DP master station to convert a single cable bus into a redundant bus; It can also be placed at the slave station to convert redundant buses into non redundant cables, while also having performance such as photoelectric isolation and reducing interference. The product features industrial grade design, IP30 protection level, corrugated aluminum reinforced casing, 35mm guide rail installation, DC (12-36V) wide power input, relay alarm output, dual power redundancy protection, and other advantages.

characteristic

*Supports logically independent dual CAN buses, including CAN2.0 A and CAN2.0 B, with 32 predetermined communication rates

*DeviceNet and CANOoen buses support rate adaptation or manual setting of all their standard rates

*Flexible selection of 1-2 CAN ports and 1-2 155M fiber optic interfaces, supporting redundant dual network fiber optic ring topology

*A fiber optic distance of over 60km, 155Mb/s, and a high-speed optical interface better support long-distance reliable transmission of burst data

*Six dual color LED status indicators, fiber optic link and power failure relay output alarms

*Lightning protection for 4000V electrical interface, 1.5 A overcurrent, 600W surge protection. Industrial grade design, EMC testing certification

*DC9-36V wide redundant dual power supply, DC1500V power isolation, reverse protection

*IP30 protection level, corrugated aluminum reinforced casing, using standard industrial 35mm guide rail installation method
