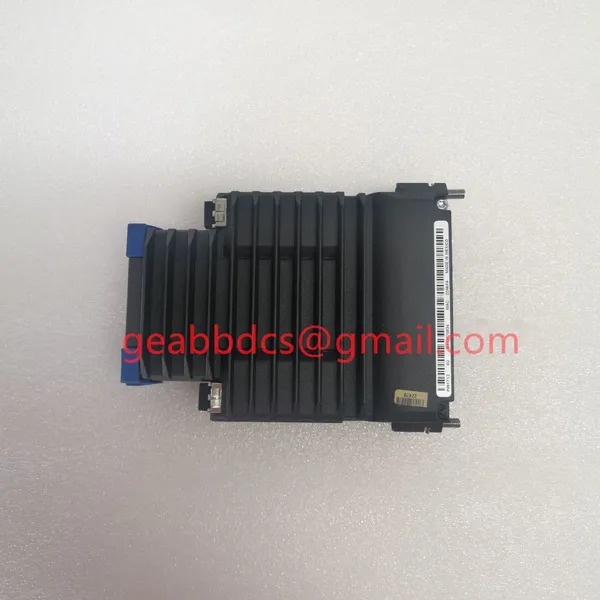

FCP270 High Performance Processors

Performance indicators:

Data electrical interface:

*The BNC-F coaxial interface form complies with the protocol specifications of ControlNet

*Supports the ControlNet bus standard

*Communication rate: 5Mbit/s

*Equipped with 4000V lightning protection, 1.5A overcurrent protection, and 600W surge protection functions;

*Terminal resistance: This product has a built-in 75 ohm terminal resistance

*Signal delay (electrical port) 5us

Fiber optic interface:

*Fiber wavelength: multimode 850nm, 1310 nm; Single mode 1310 nm, 1550 nm.

*Transmission fiber: multimode 50/125 um, 62.5/125 um, 100/140 um; Single mode 8.3/125um, 9/125um, 10/125um.

*Transmission distance: Multi mode 2Km, single mode 20Km, optional for further distances.

*Fiber optic interface types: SC, FC, ST optional, standard SC optical interface.

*Optical path error rate:<10-9

*Signal delay (optical port): 2.3us

Power supply and protection:

*Power supply: Dual power redundant input, DC (9-36) V, typical DC24V, power consumption less than 4W, with DC1500V voltage isolation and reverse protection function, industrial terminal interface

*Relay alarm output: Fiber optic link fault and power supply fault alarm output, contact capacity: DC48V/1 A, industrial terminal interface

Mechanical characteristics:

*External dimensions: (147x118x54) mm

*Shell: IP30 protection level, corrugated aluminum reinforced casing

*Installation method: 35mm guide rail installation

*Net weight: 800g

Work environment:

*Working temperature: (-10~+70) ℃, optional wide temperature (-40~+85) ℃

*Relative humidity: ≤ 90% (non condensing)

*Storage temperature: (-40~+85) ℃
