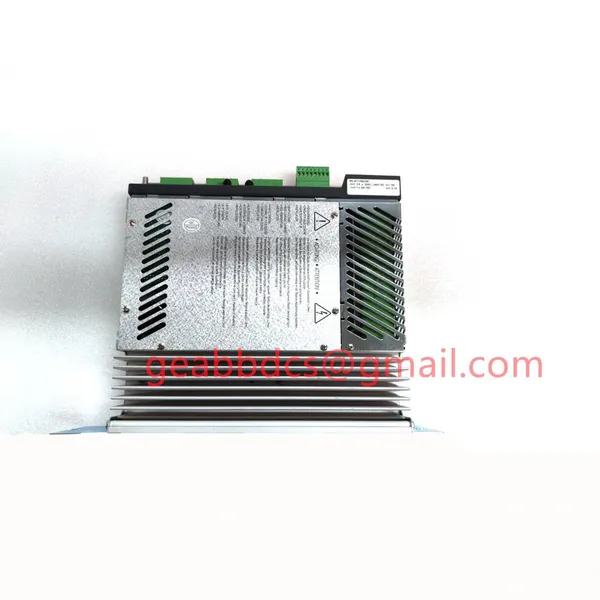

Help CenterMC-4/10/50/400 Servo Amplifier
Related Products
The controllnet fiber optic repeater realizes the conversion of electrical signals from the controllnet bus to the fiber optic, and is functionally compatible with AB's original 1786-RPA+1786-RPFM/RPFS/RPFRL/RPFRXL fiber optic modules.
Performance indicators:
Analog quantity interface:
*Current analog quantity (0-20) mA
*Support current analog quantity of 1-4 channels
*(4-20) mA current interface parameters:
Accuracy 0.5%
Time delay
Load capacity 600 Ω
Input resistance 120 Ω
Fiber optic interface:
*Fiber wavelength: multimode 850nm, 1310 nm; Single mode 1310 nm, 1550 nm.
*Transmission fiber: multimode 50/125 um, 62.5/125 um, 100/140 um; Single mode 8.3/125um, 9/125um, 10/125um.
*Transmission distance: Multi mode 2Km, single mode 20Km. Available for further distances.
*Fiber optic interface types: ST, SC, FC optional, standard ST optical interface.
Power supply and protection:
*Power supply: Industrial standard 24V (+/-5%) power supply, with anti reverse polarity function, industrial terminal interface
Mechanical characteristics:
*Overall dimensions: 146mm * 135mm * 53mm (height * depth * width)
*Shell: IP30 protection level
*Installation method: 35mm guide rail installation
*Net weight: 800g
Work environment:
*Working temperature: -10-70 ℃ (-40~+85 ℃ wide temperature optional)
*Relative humidity: 5%~95% (non condensing)
*Storage temperature: 40-80 ℃
Contact information: 15359293870
WhatsApp:+86 15359293870
Contact person: KELLY
Email: geabbdcs@gmail.com 386353502@qq.com
Official website:
http://www.geabb.com
TBUS DIN rail for expansion modules and bus couplers
Rated control circuit power voltage US: 18 V DC 30 V DC (including all tolerances, including residual voltage)
Rated control circuit power voltage US: 24 V DC (A1/A2)
Rated control power supply current IS: typical value 110 mA
Limit continuous current: maximum 6 A (for loop current paths A1/A1 and A2/A2)
Delay time: typical value of 20 ms (depending on load, in case of voltage drop of US)
Protection circuit: Yes, within the operating voltage limit range
Status display: 3x green LED, 1x red LED
Input Description: Number, HTL type
Input quantity: 10 (dual channel, up to SIL 3)
20 (single channel, up to SIL 2)
Input voltage range, "0" signal: 0 V DC 5 V DC (for safe shutdown)
Input voltage range, "1" signal: 11 V DC 30 V DC
Cable length: maximum 2000 m
Status display: 20 x green LED (1 LED per input)
Power consumption: typical value 4 mA
Number of outputs: 4 (safe semiconductor output, up to Cat. 4 (according to EN ISO 13849-1)
2 (negative switching output)
Precautions for protecting the circuit: Yes, within the operating voltage limit range
Short circuit protection: Yes
Output voltage:
Leakage current: maximum 2 mA
Maximum capacitive load: maximum 1 µ F (electronic components)
Limit continuous current: 2 A (per channel, see derating)
