Rof Electro-Optic Modulator Desktop Amplifier 10G/20G/40G Broadband Microwave Amplifier Modules
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
Broadband Microwave Amplifier
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Rof Electro-optic Modulator 1550nm Suppression Carrier Single Side-band Modulator SSB ModulatorNegotiableMOQ: 1 Piece -
Rof-AMBox Electro-Optical Intensity Modulator Mach Zehnder Modulator Intensity Modulation InstrumentNegotiableMOQ: 1 Piece
-
Rof-QPD Series APD/PIN Photodetector Four-quadrant Photoelectric Detection Module 4 Quadrant PhotodetectorUS$ 999 - 1999MOQ: 1 Unit
-
Rof Electro-optic Modulator Optical Amplification SOA Butterfly Semiconductor Optical AmplifierUS$ 999 - 1999MOQ: 1 Piece
-
R-AM-08-10G Wavalength 850nm 10GHz Intensity ModulatorNegotiableMOQ: 1 Piece
Place of Origin
China
Model Number
Broadband Microwave Amplifier
Introduction

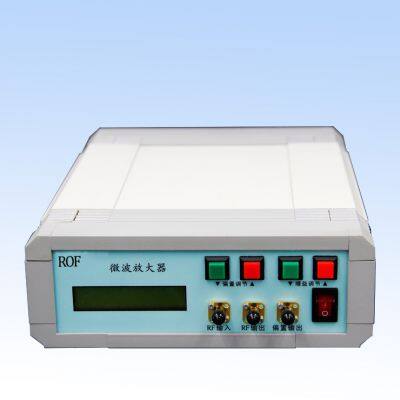

The Rof Microwave amplifier is a desktop amplifier explicitly designed for RZ code transmission in high-speed optical fiber communication systems. It amplifies tiny high-speed signal levels to a higher level that can drive the modulator and then going Lithium niobate (LiNbO3) electro-optical modulator to work. It has a better gain flatness in the broadband range.
Feature
Adjustable gain
Output amplitude up to 9V
Highly integrated
Easy to use
Application
Microwave photonics
OFDM system
Optical fiber sensing system
Parameter | Unit | Min | Typ | Max |
| Operating frequency range | Hz | 50K | 20G | |
| Output amplitude | V | 5 | 9 | |
| Gain range | dB | 30 | ||
| Output Power P1dB | dBm | 21 | ||
| Gain change （ripple） | dB | ±1.5 | ||
| Isolation | dB | -60 | ||
| Noise figure | dB | 7 | ||
| Input / output impedance | | - | 50 | - |
| Input voltage amplitude | V | 0.5 | 1 | |
| Input return loss | dB | -10 | ||
| Output return loss | dB | -10 | ||
| Dimensions （L x W x H） | mm | 270 x 200 x 70 | ||
| Operating Voltage | V | AC 220 | ||
| RF interface | K(f)-K(f) | |||
