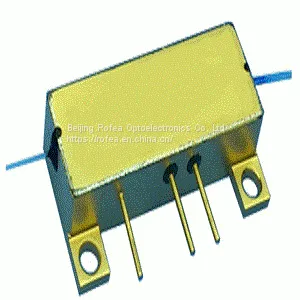

Rof Electro-Optic Modulator LiNbO3 MIOC Series Y-Waveguide Modulator
US$ 999 - 1999
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
Y-Waveguide Modulator
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Rof Electro-Optic Modulator 1550nm Suppression Carrier Single Side-Band Modulator SSB ModulatorUS$ 999 - 1999MOQ: 1 Piece -
Rof Electro-optic Modulator Ultra High Precision MZM Modulator Automatic Bias ControlleUS$ 999 - 1999MOQ: 1 Piece
-
Rof Electro-optic Modulator Ultra Compact DP-IQ Modulator Automatic Bias ControllerNegotiableMOQ: 1 Piece
-
Rof Electro-optic Modulator 10G/20G/40G Broadband Microwave Amplifier ModulesNegotiableMOQ: 1 Piece
-
ROF-PR High Speed InGaSn Photodetector Low Noise PIN Photoreceiver Si PhotodetectorUS$ 999 - 1999MOQ: 1 Unit
Place of Origin
China
Model Number
Y-Waveguide Modulator
Operating wavelength |
l |
1310±25 |
1550±25 |
nm |
Insertion loss |
IL |
≤3.5 |
dB |
|
Beam splitting ratio |
-- |
48/52~52/48 |
dB |
|
Maximum input optical power |
Pmax |
≤200 |
mW |
|
Polarized crosstalk |
-- |
≤-30 |
dB |
|
Polarization extinction ratio |
PER |
≥60 |
dB |
|
Backward light reflection |
-- |
≤-50 |
dB |
|
Additional intensity modulation |
-- |
≤ 0.2% |
dB |
|
Optical fiber type |
-- |
PM or SM |
-- |
|
Diameter of pigtail fiber |
-- |
80/170 or 125/250 |
μm |
|
Electrical parameters
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Half-wave voltage |
VΠ |
≤4.0 |
V |
||
Working frequency |
f |
0-300 |
MHz |
||
Voltage withstanding range of electrodes |
ZRF |
≤15 |
V |
||
Electrical interface |
3 PIN |
||||
Limit Condition
Parameter |
Symbol |
Unit |
Numerical value |
Operating temperature |
Top |
℃ |
-45 ~ +70 |
Storage temperature |
Tst |
℃ |
-55 ~ +85 |
Humidity |
RH |
% |
5 |
