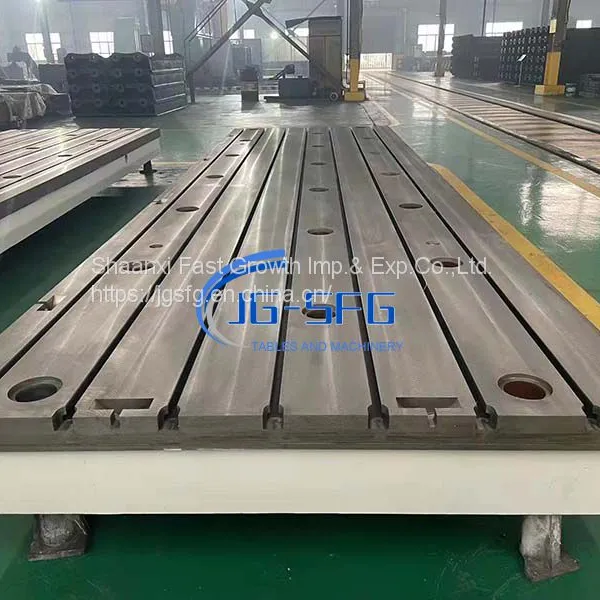

Cast Iron T-slotted Clamping Plates/Floor Plates
- Shanghai
- T/T L/C
You May Like
-
Cast Iron T-slotted Floor Tables/Plates
-
Cast Iron T-slotted Surface Plates/ Tables
-
Cast Iron T-slotted Floor Tables/Plates for Machine Tool
-
Cast Iron T-slotted Floor Plates & Layout Plates for milling machine
-
Cast Iron T-slot Plate Supplier in CHINA
-
Cast Iron T-slot Base Plates, floor plates, clamping plates
Product Description
T-slot combination to your specification, in cast iron. Nevertheless, standard floor plates are available in a large range of width and length combinations. Floor plates can be assembled to achieve larger plate areas.
STANDARD PLATE WIDTH (in mm):
1000, 1500, 2000, 2500 and 3000 (mm)
STANDARD PLATE LENGTH (in mm):
1500, 2000, 2500, 3000, 3500, 4000, 4500, 5000, 5500, 6000, 6500, 7000, 7500, 8000 (mm)
Popular sizes:
No. | Length(mm) | Width(mm) | Height(mm) | Surface accuracy (according to DIN876) |
2000 | 1500 | |||
2500 | 1500 | 300 | II/III | |
3 | 3500 | 1500 | 300 | II/III |
4 | 4000 | 1500 | 300 | II/III |
5 | 4500 | 1500 | 300 | II/III |
6 | 2500 | 2000 | 300 | II/III |
7 | 3000 | 2000 | 300 | II/III |
8 | 4000 | 2000 | 300 | II/III |
9 | 4500 | 2000 | 300 | II/III |
10 | 5000 | 2000 | 300 | II/III |
11 | 5500 | 2000 | 300 | II/III |
12 | 6000 | 2000 | 300 | II/III |
13 | 6500 | 2000 | 300 | II/III |
14 | 7000 | 2000 | II/III | |
15 | 8000 | 2000 | 300 | II/III |
Other sizes and surface accuracy on request.
In case of non-standard sizes, clients are requested to provide information like:
- length, width and height of plate
- load bearing capacity required
- type of intended use
- whether floor mounting type or stand mounting type
- flatness accuracy of top working surface
- size, number and pitch of T-slots
- T-slot tolerances.
Large plates can be connected by single piece as following:
L(mm) | W(mm) | |||||
2000 | 2500 | 3000 | 3500 | 4000 | ||
3500 | 3500 | 2000 | 2500 or 1250+1250 | 3000 or 1500+1500 | 1500+2000 | 2000+2000 |
4500 | 4500 | |||||
5500 | 5500 | |||||
6500 | 6500 | |||||
7500 | 7500 | |||||
8500 | 4000+4500 | |||||
9500 | 4000+5500 | |||||
10500 | 4000+6500 | |||||
11500 | 4000+7500 | |||||
12500 | 4000+4000+4500 | |||||
13500 | 4500+4500+4500 | |||||
14500 | 4500+5000+5000 | |||||
15500 | 5000+5000+5500 | |||||
16500 | 5500+5500+5500 | |||||
17500 | 5500+6000+6000 | |||||
18500 | 6000+6000+6500 | |||||
19500 | 6500+6500+6500 | |||||
20500 | 6500+7000+7000 | |||||
We are professional manufacturer in cast iron plates tables for many years, pls visit our web to know more :.
If any interests, pls contact Grace Chen,thank you!
