Pump Shaft for Mission Magnum 2500 Supreme Centrifugal Sand Pump Spare Parts
US$ 1 - 150
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Zhenghang
Place of Origin:
China
Model Number:
Mission pump
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
2 days
Related Products
-
Mission Magnum Centrifugal Pumps 3x2x13 Sand Pump for Drilling 2x3US$ 1 - 1500MOQ: 1 Set -
Mission Magnum Centrifugal Pumps 4x3x13 Sand Pump for Drilling Fluid 3x4US$ 1 - 1500MOQ: 1 Set
-
19205-01-30A , 641101902, Casing for Mission Magnum 2500 Supreme Centrifugal Pumps 4x3x13 ,G0006026 Housing Assembly Sand PumpUS$ 1 - 1500MOQ: 1 Set
-
19222-01-30A , 641102058, Casing for Mission Magnum 2500 Supreme Centrifugal Pumps 5x4x14 ,G0006027 Housing Assembly Sand PumpUS$ 1 - 1500MOQ: 1 Set
-
Mission Magnum 2500 Supreme Centrifugal Pump 4x3x13 Sand Pump for Drilling Fluid 3x4US$ 1 - 1500MOQ: 1 Set
Brand Name
Zhenghang
Place of Origin
China
Model Number
Mission pump
Standard or Nonstandard
Standard

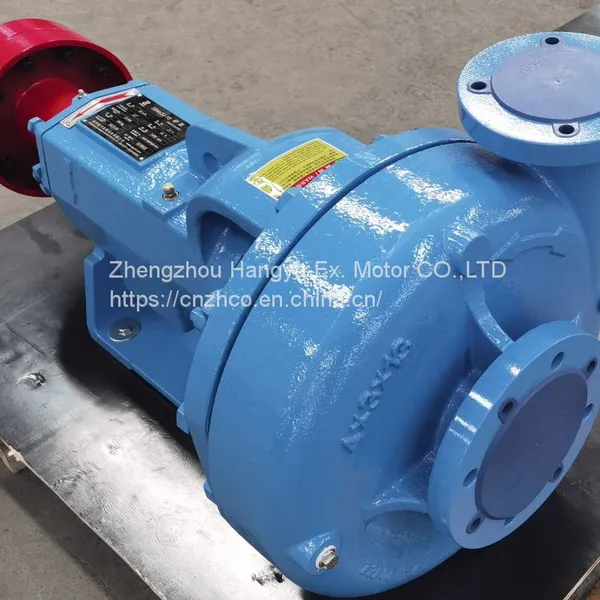

Pump shaft for Mission Magnum 2500 supreme Centrifugal Sand pump spare parts
We supply Mission centrifugal pump Magnum and parts ,100% interchangeable for below model:
Mission Centrifugal pumps Magnum 3x2x13
Mission Centrifugal pumps Magnum 4x3x13
Mission Centrifugal pumps Magnum 5x4x14
Mission Centrifugal pumps Magnum 6x5x11
Mission Centrifugal pumps Magnum 6x5x14
Mission Centrifugal pumps Magnum 8x6x11
Mission Centrifugal pumps Magnum 8x6x14
Product Description
| ITEM | QTY per pump |
PART No. | Stock No. | DESCRIPTION |
| 1* | 1 | See below | Casing | |
| 1A | 1 | 10399-46-1 | 648403012 | Gasket,casing |
| 1B | 12 | 3932-61 | 648402014 | Nut,casing |
| 1C | 12 | 3862-76 | 648401115 | Stud,casing |
| 1D | 1 | 8505-04-01 | 86485503 | Plug,Casing Drain |
| 1E | 1 | 8505-04-01 | 646400507 | Plug,flush line |
| 2* | 1 | See below | Impeller | |
| 2A | 1 | 19110-72 | 648405082 | Seal,impeller |
| 2B | 1 | 7300239 | 7300239 | Washer,impeller |
| 2C | 1 | 7415648 | 7415648 | Bolt,impeler lock |
| 3*# | 1 | 22223-01-30 | 641116157 | Stuffing box,mech.seal |
| 3*& | 1 | 20614-01-30 | 643365042 | Stuffing box,packed |
| 3A | 2 | 3861-117 | 648401016 | Bolt,stuffing box |
| 3B& | 1 | 19368-01 | 601499403 | Grease fitting |
| 4 | 1 | 20622A | 641103338 | Gland assy,packing |
| 5A# | 1 | 22451-1 | 648414308 | Seal,mechanical |
| 5A~ | 3 | 25014-04M-R | 661007005 | Packing,Shaft-M.S.Backup |
| 6 | 2 | B3701A | 601102494 | Bolt assy,gland |

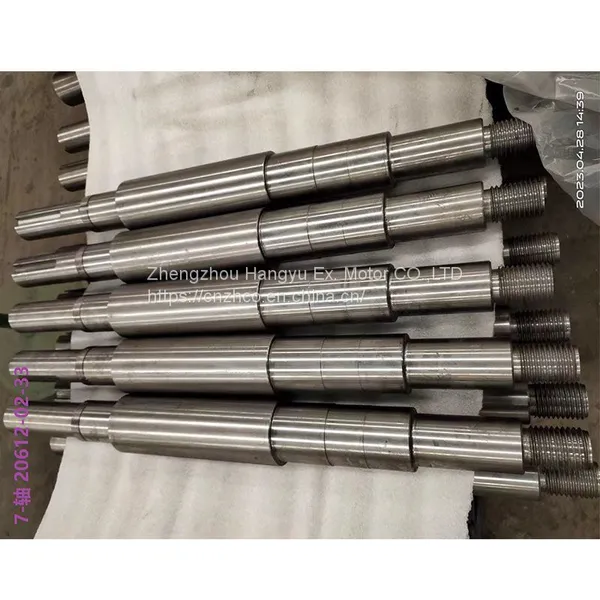

| 7 | 1 | 20612-02-33 | 646490557 | Shaft |
| 7A# | 1 | 20943-21 | 641102182 | Sleeve,Shaft (M.S.Pump) |
| 7A& | 1 | 20613-21G-7A | 641102181 | Sleeve,Shaft (Pack Pump) |
| 7B | 1 | 4372-5-21 | 601212392 | Key,shaft |
| 7C | 1 | 23444-01-72 | 648415156 | Seal,shaft sleeve |
| 8 | 1 | 22210-1A | 641116108 | Deflector assembly |
| 9 | 1 | 20618-12-1 | 644302499 | Frame,grease lubricated |
