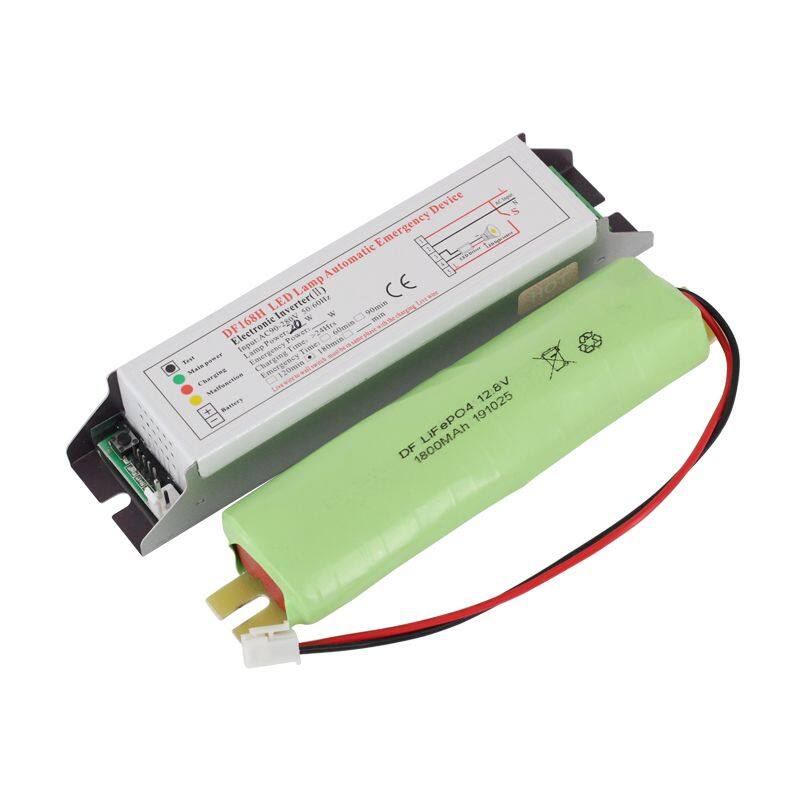

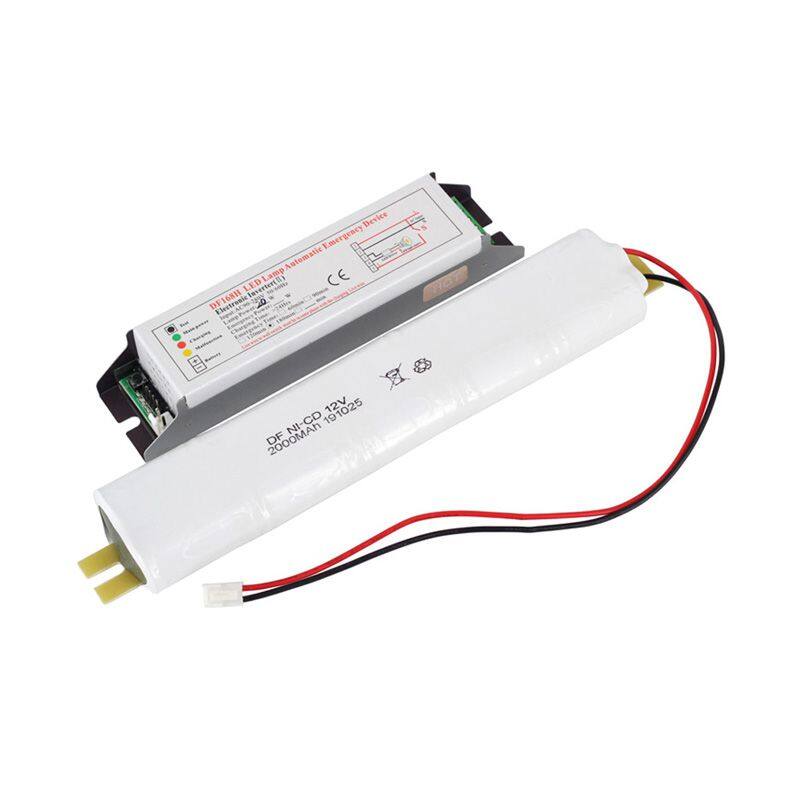

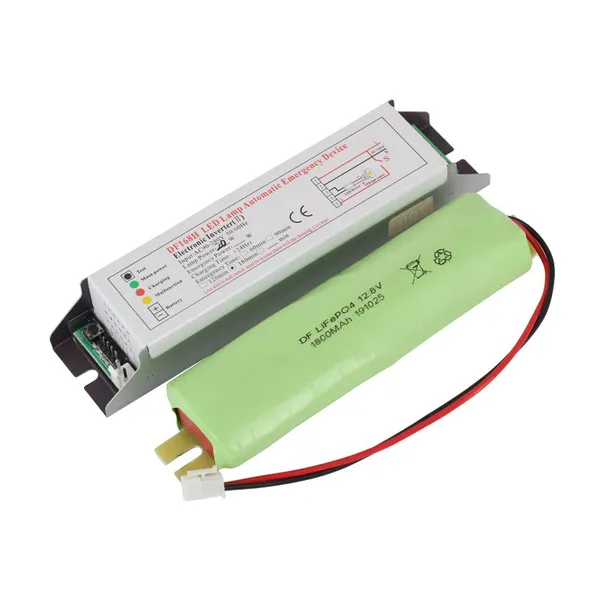

LED T8 tube emergency driver 18W battery backup emergency kit
| Support LED Power Rangement | Max.25W |
| Emergency Output Power | 100% Emergency Power Output |
| Input Voltage | AC90~280V, 50~60HZ |
| Battery Voltage | 11.1V/12.8V |
| Emergency Operation Duration | >90Minutes With Customized |
| Working Environment | -10~50℃,65%±20% RH |
| Power Factor | >0.9 |
| Inverter Size | 168*38*28mm |
DF168H is suitable for all LED lamps of 8-25W, including led tubes,LED fluorescent lamps,LED downlights and other emergency lighting;
The battery adopts 11.1V ternary lithium battery pack or 12V nickel-cadmium or nickel-metal hydride battery pack or 12.8V lithium iron phosphate battery pack.
Full power emergency lighting, emergency lighting brightness equal to mains lighting brightness;
International line, three-color indicator light, detection button;
No-load protection, constant current limited voltage charging, charge and discharge dual protection board to ensure the safe use of lithium battery pack;
Connect the circuit in strict accordance with the wiring diagram, and do not open the cover at will;
The user can regularly check the discharge of the inverter, that is, cut off the mains power supply, and use the battery discharge lighting to automatically terminate;
Technical parameters:
Input: AC90-280V/50HZ-60HZ
Output: AC/DC90-280V/50HZ-60HZ
Power: 8-25W
Emergency time: 1-3 hours, or according to customer requirements;
Battery: 12.8V lithium iron phosphate battery /11.1V lithium ion battery /12V nickel battery pack
When the battery chemical composition type is different, the 168H emergency power supply board is not universal, please pay attention to the identification
Charging current: 200mA
Emergency power supply size/Length * width * thickness =168*38*28mm
Certification :CE/FCC/ROHS/MSDS/PI967
