Briquette Machine Working

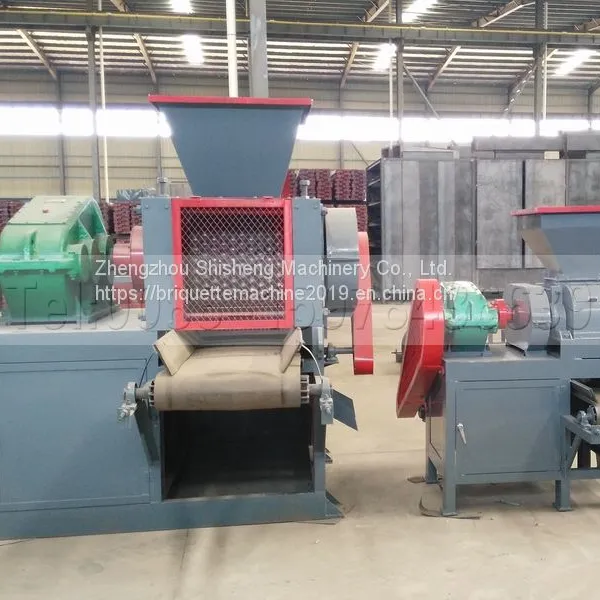

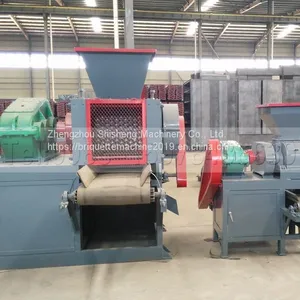

Briquette Machine Working Introduction:
Briquette Machine Working is an ideal mechanical equipment designed for processing powdery materials, such as nonferrous metal powder and mineral powders. After being made into briquettes, these wasted powders can be reused in various industries, hence increasing additional value of mineral resources.

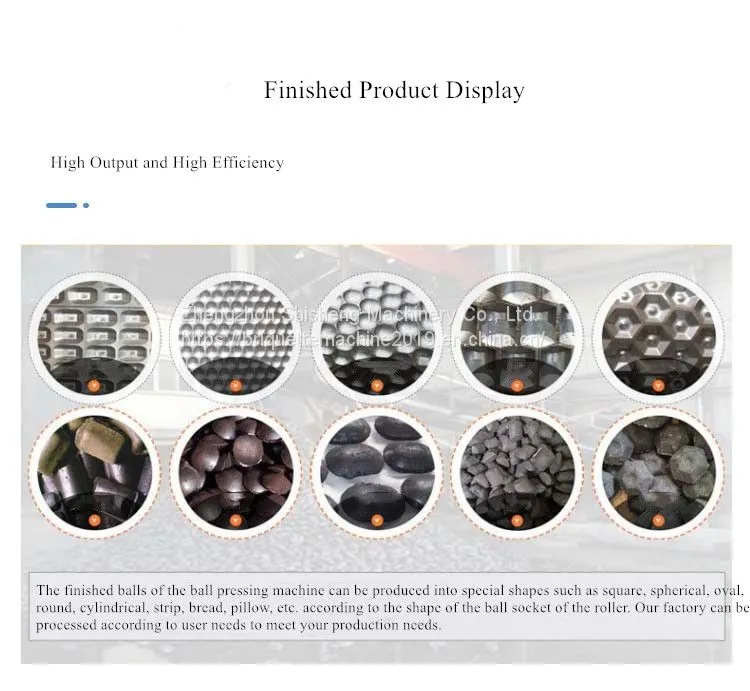

Briquette Machine Working is proud of that the finished briquettes come with high intensity, great convenience for transportation and various shapes. Custom-made shape is also available.
Briquette Machine Working Customer Reminding:
(1) For Briquette Machine Working, if feeding material is bigger, better to crusher first before briquetting.
(2) If material is in high moisture (higher than 15%), a dryer machine would be necessarily. But If you prefer to use Briquette Machine Working, the moisture should be less than 5%, also based on materials’ performance.
(3) Generally, to add some binder/adhesive into the raw materialin briquetting. The final briquette will be strong, high density, and better quality.
(4) The final briquettes can be dried naturally under the sunshine, or through mesh belt dryer and chain plate dryer accordingly to customer investment budget. But if is in capacity of 8-10t/h or more, we will suggest second one.
Briquette Machine Working Notify:
(1)We not only produce a single set of Coal Converting Machine, but also complete production line, including batching machine, wheel grinding mixer, double shaft mixer, vertical crusher and briquette dryer, large angle belt conveyor, etc.
(2) All of machines have passed ISO and CE certificate, so machine quality is totally qualified.
(3) Briquette Machine Working is proud of that the finished briquettes come with high intensity, great convenience for transportation and various shapes.
XM Series Coal Briquetting Machine
| Model | Reducer | Ratio | Roller Size(mm) | Main Shaft Speed(r/min) | Matched Power(kw) | Capacity(t/h) | Pressure Type |
| XM290 | ZQ350 | 1:31.5 | 290*200 | 12-14 | 5.5 | 0.9-1.0 | Constant Pressure |
| XM360 | ZQ350 | 1:31.5 | 360*250 | 12-14 | 7.5 | 1.5-2.0 | Constant Pressure/Hydraulic Pressure |
| XM400 | ZQ400 | 1:31.5 | 400*250 | 12-14 | 7.5 | 2.5-3.5 | |
| XM430 | ZQ400 | 1:31.5 | 430*250 | 12-14 | 11 | 3.5-4.5 | |
| XM500 | ZQ650 | 40.17 | 500*470 | 10-12 | 37 | 7.5-8.5 | |
| XM650 | ZQ850 | 40.17 | 650*470 | 9-11 | 45 | 9-10 | |
| XM750 | ZQ1000 | 40.17 | 750*570 | 9-11 | 90 | 13-14 | |
| XM850 | ZQ1250 | 50 | 850*570 | 8-10 | 110 | 15-17 | |
| Remarks: Above capacity is based on material specific gravity 0.8, briquette size: φ50*33mm | |||||||

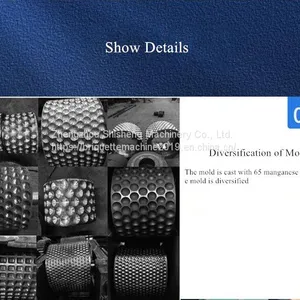

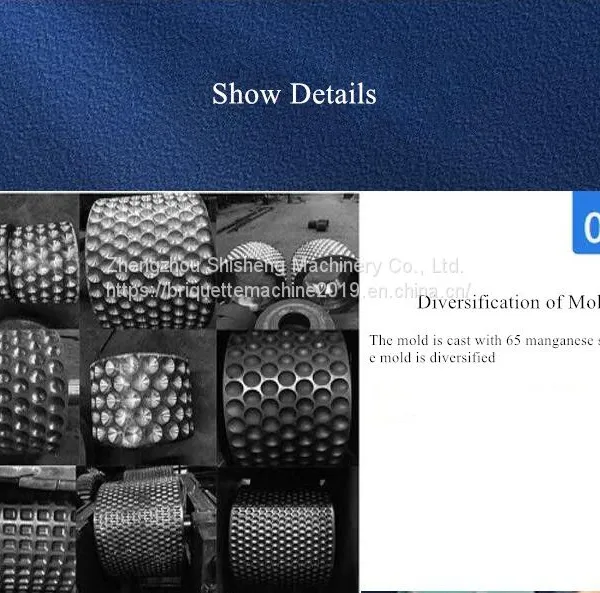

| Roller material is 65Mn, high chrome alloy and 9Cr2Mo | |||||||
| According to different material adjust machine parameter to meet customer production | |||||||
KF Series Mineral Powder Briquetting Machine
| Model | Reducer | Ratio | Roller Size | Main Shaft Speed(r/min) | Matched Power(kw) | Capacity(t/h) | Pressure Type |
| KF500-371-280 | ZQ500 | 40.17 | 370*280 | 8-10 | 11 | 6.5-7.5 | Constant Pressure/Hydraulic Pressure |
| KF650-500-300 | ZQ650 | 40.17 | 500*300 | 8-10 | 37 | 8.5-9.5 | |
| KF850-650-300 | ZQ850 | 40.17 | 650*300 | 8-10 | 55 | 10.5-11.5 | |
| KF1250-750-350 | ZS1250 | 50 | 750*350 | 7-9 | 110 | 13.5-14.0 | |
| KF1450-850-350 | ZS1450 | 50 | 850*350 | 7-9 | 132 | 15.0-16.0 | |
| KF560-1000-350 | ZSY560 | 50 | 1000*350 | 7-9 | 150 | 17.0-20.0 | |
| Remarks: Above Capacity is based on material specific gravity 2, briquette size:φ50*33mm | |||||||
| Roller material is 65Mn, high chrome alloy and 9Cr2Mo. | |||||||
| According to different material adjust machine parameter to mmet customer production | |||||||
YHG Series Dry Powder High Pressure Briquetting Machine
| Model | YHG-0.5 | YHG-1.5 | YHG-3.0 | YHG-5.0 | YHG-8.0 | YHG-10.0 |
| Roller Diameter(mm) | φ299 | φ367 | φ522 | φ738 | φ760 | φ858 |
| Roller Width(mm) | 180 | 183 | 196 | 210 | 225 | 300 |
| Capacity(t/h) | 0.5 | 1.2-1.4 | 2.5-3.0 | 4.5-5.5 | 7.5-8.5 | 8.0-9.5 |
| Main Reducer | ZQ650 | ZQ850 | ZS1250 | ZS1450 | ZS1650 | ZS1650 |
| Main Motor | 18.5 | 37 | 55 | 75 | 90-110 | 110-132 |
| Pre-pressure Motor(kw) | 7.5 | 11 | 15 | 18.5 | 18.5 | 22 |
| Pre-pressure Reducer | WHC-125 | WHC-160 | WHC-200 | WHC-210 | WHC-210 | WHC-250 |
| Remarks: Above capacity is based on material specific gravity 1.3, briquette size: φ35*30*20mm | ||||||
| Roller material adopts 9Cr2Mo | ||||||
| Pre-pressure motor is speed motor | ||||||
