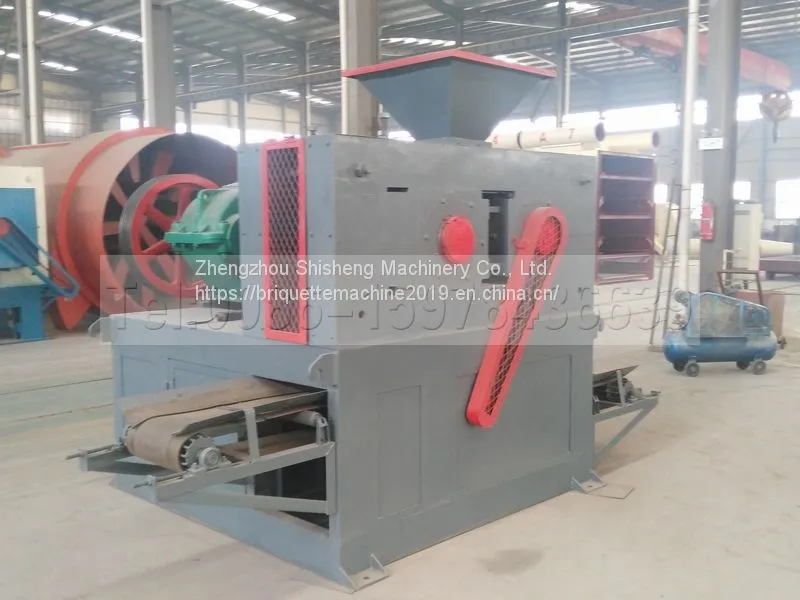

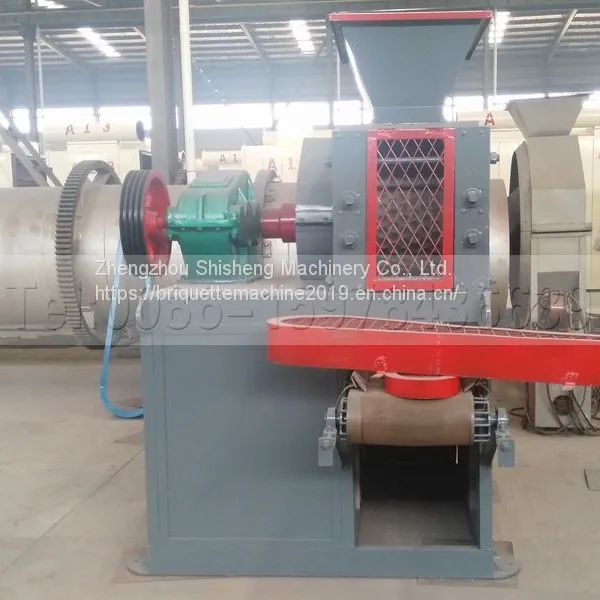

Charcoal Dust Briquette Press

Name: Charcoal Dust Briquette Press
Brand: Shisheng Machinery
SKU: 172390239
Availability: InStock

US$ 3000 - 5000 MOQ: 1 Set

Key Specifications

Brand Name:

Shisheng Machinery

Place of Origin:

China

Model Number:

XM430

Zhengzhou Shisheng Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

25 days

Brand Name Shisheng Machinery

Place of Origin China

Model Number XM430

Certification ISO, CE

After-sales Service Provided Engineers available to service machinery overseas

Warranty 1 year

Dimension(L*W*H) 1740*1820*1890mm

Production Capacity 4-4.5t/h

Condition New

Power(W) 18.5kw

Motor Type AC Motor

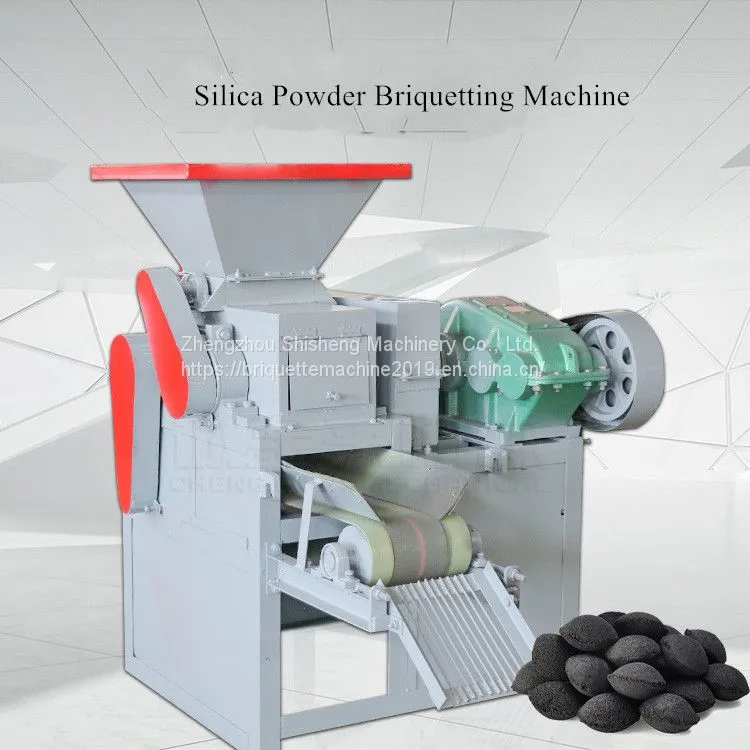

Charcoal Dust Briquette Press

Charcoal Dust Briquette Press Introduction:

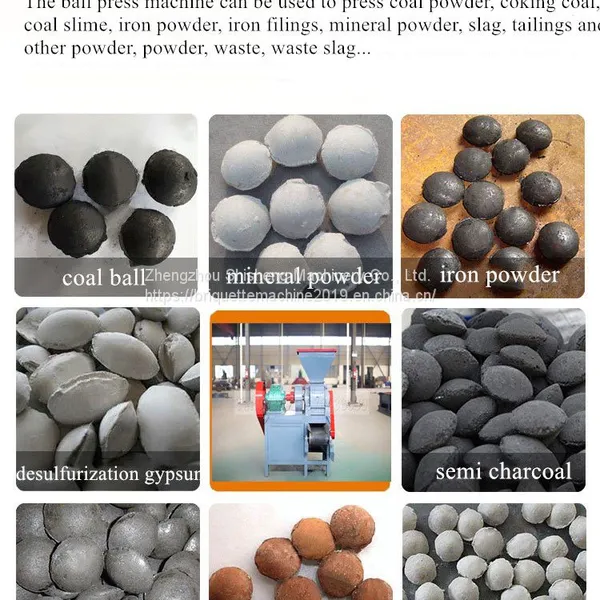

(1) Briquette making machine can mold a variety of mineral powder, metal powder, coal powder, coke powder and other materials.

(2) Due to forced squeeze by roller, the products have high density, high strength and high hardness.

(3) The press roller uses 65Mn rigid material is in good abrasion resistance, effectively prolong service life.

Charcoal Dust Briquette Press Working Principle:

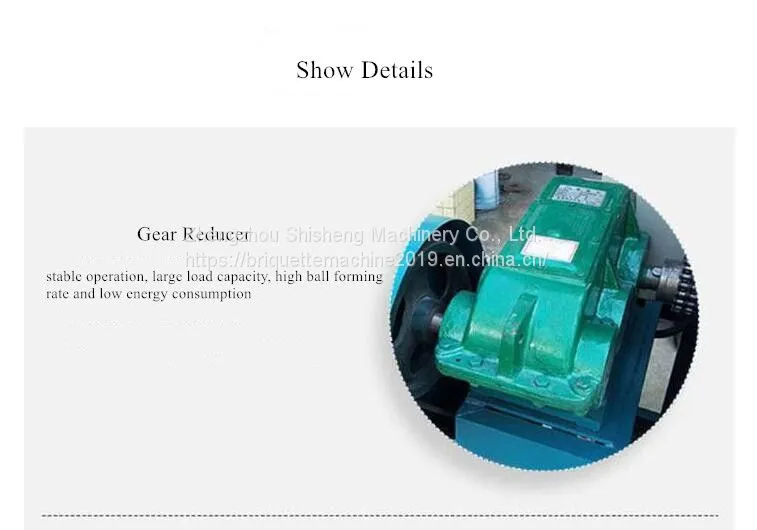

(1) Main motor transmit power to speed reducer.

(2) The coupling between reducer and rollers start to run.

(3) The exposed gear impel drive and driven shaft to rotate synchronize

(4) The pressure in two rollers increase gradually, from small to large.

(5) Pressure reaches top, the briquettes is molded successfully.

XM Series Coal Briquetting Machine

Model	Reducer	Ratio	Roller Size(mm)	Main Shaft Speed(r/min)	Matched Power(kw)	Capacity(t/h)	Pressure Type
XM290	ZQ350	1:31.5	290*200	12-14	5.5	0.9-1.0	Constant Pressure
XM360	ZQ350	1:31.5	360*250	12-14	7.5	1.5-2.0	Constant Pressure/Hydraulic Pressure
XM400	ZQ400	1:31.5	400*250	12-14	7.5	2.5-3.5
XM430	ZQ400	1:31.5	430*250	12-14	11	3.5-4.5
XM500	ZQ650	40.17	500*470	10-12	37	7.5-8.5
XM650	ZQ850	40.17	650*470	9-11	45	9-10
XM750	ZQ1000	40.17	750*570	9-11	90	13-14
XM850	ZQ1250	50	850*570	8-10	110	15-17
Remarks: Above capacity is based on material specific gravity 0.8, briquette size: φ50*33mm
Roller material is 65Mn, high chrome alloy and 9Cr2Mo
According to different material adjust machine parameter to meet customer production

KF Series Mineral Powder Briquetting Machine

Model	Reducer	Ratio	Roller Size	Main Shaft Speed(r/min)	Matched Power(kw)	Capacity(t/h)	Pressure Type
KF500-371-280	ZQ500	40.17	370*280	8-10	11	6.5-7.5	Constant Pressure/Hydraulic Pressure
KF650-500-300	ZQ650	40.17	500*300	8-10	37	8.5-9.5
KF850-650-300	ZQ850	40.17	650*300	8-10	55	10.5-11.5
KF1250-750-350	ZS1250	50	750*350	7-9	110	13.5-14.0
KF1450-850-350	ZS1450	50	850*350	7-9	132	15.0-16.0
KF560-1000-350	ZSY560	50	1000*350	7-9	150	17.0-20.0
Remarks: Above Capacity is based on material specific gravity 2, briquette size:φ50*33mm
Roller material is 65Mn, high chrome alloy and 9Cr2Mo.
According to different material adjust machine parameter to mmet customer production
