8 Cores FTTH Nap Box Outdoor ABS Plastic 8 Cores FTTH Termination Box Support 1x8 PLC Splitter 8 Port Cable Ports

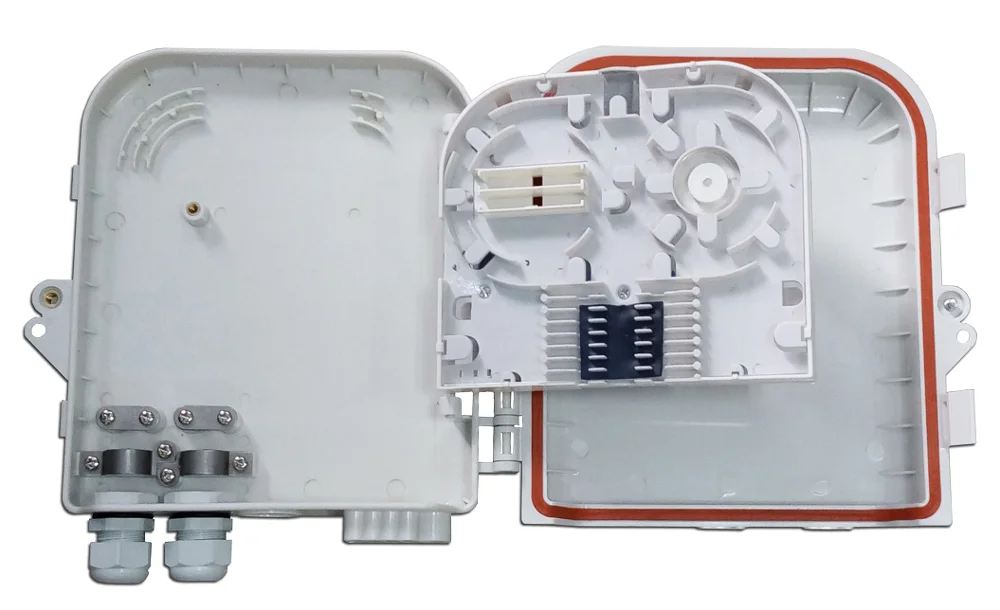

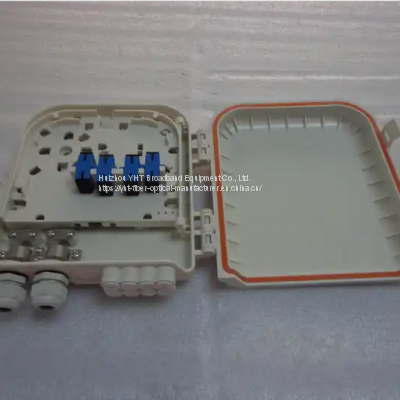

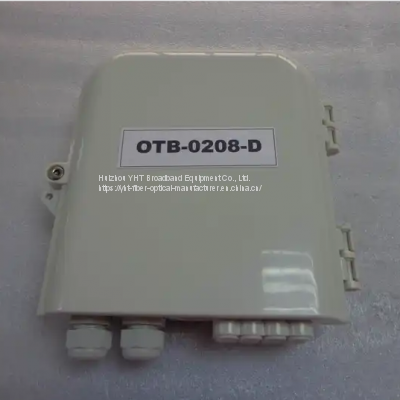

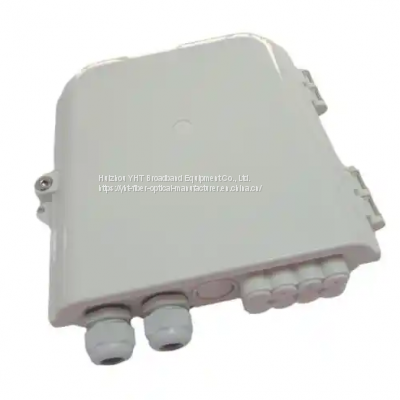

8 Cores FTTH Nap Box Outdoor ABS Plastic 8 Cores FTTH Termination Box Support 1x8 PLC Splitter 8 Port Cable Ports photo-1
8 Cores FTTH Nap Box Outdoor ABS Plastic 8 Cores FTTH Termination Box Support 1x8 PLC Splitter 8 Port Cable Ports photo-2
8 Cores FTTH Nap Box Outdoor ABS Plastic 8 Cores FTTH Termination Box Support 1x8 PLC Splitter 8 Port Cable Ports photo-3
8 Cores FTTH Nap Box Outdoor ABS Plastic 8 Cores FTTH Termination Box Support 1x8 PLC Splitter 8 Port Cable Ports photo-4
8 Cores FTTH Nap Box Outdoor ABS Plastic 8 Cores FTTH Termination Box Support 1x8 PLC Splitter 8 Port Cable Ports photo-5
US$ 5 - 8 MOQ: 200 Pieces
Key Specifications
Get Latest Price
Brand Name:
CSYHT
Place of Origin:
China
Model Number:
OTB-0208D
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
7 days
Brand Name CSYHT
Place of Origin China
Model Number OTB-0208D

8 Cores FTTH Nap Box Outdoor ABS Plastic 8 Cores FTTH Termination Box Support 1x8 PLC Splitter 8 Port Cable ports





Product Description



8 Cores FTTH Nap Box Outdoor ABS Plastic 8 Cores FTTH Termination Box Support 1x8 PLC Splitter 8 Port Cable ports OTB-0208D is suitable as splice tray type, PLC splitter type and adapter type. it is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTX network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.





Product Feartures



  • Industry Standard User Interface, be made of high impact plastic.

  • Can accommodate 1x4,1x8, 2x4,2x8 PLC splitter.

  • Indoor or outdoor using, waterproof.

  • Up to 8 FTTH drops.

  • wall mounting and pole mounting application.

  • OTB-0208-D have 2 inlet ports, 8 outlet ports







Product Information





Model

Capacity

Dimension (mm)

Max. Adapter port

PLC Splitter

Cable Ports

OTB-0208D

Max. 16FO

206.8*230.5*52.7

8pcs SC simplex

1x4,1x8 PLC steel tube splitter.

2 cable gland & 8 ports





Product Pictures

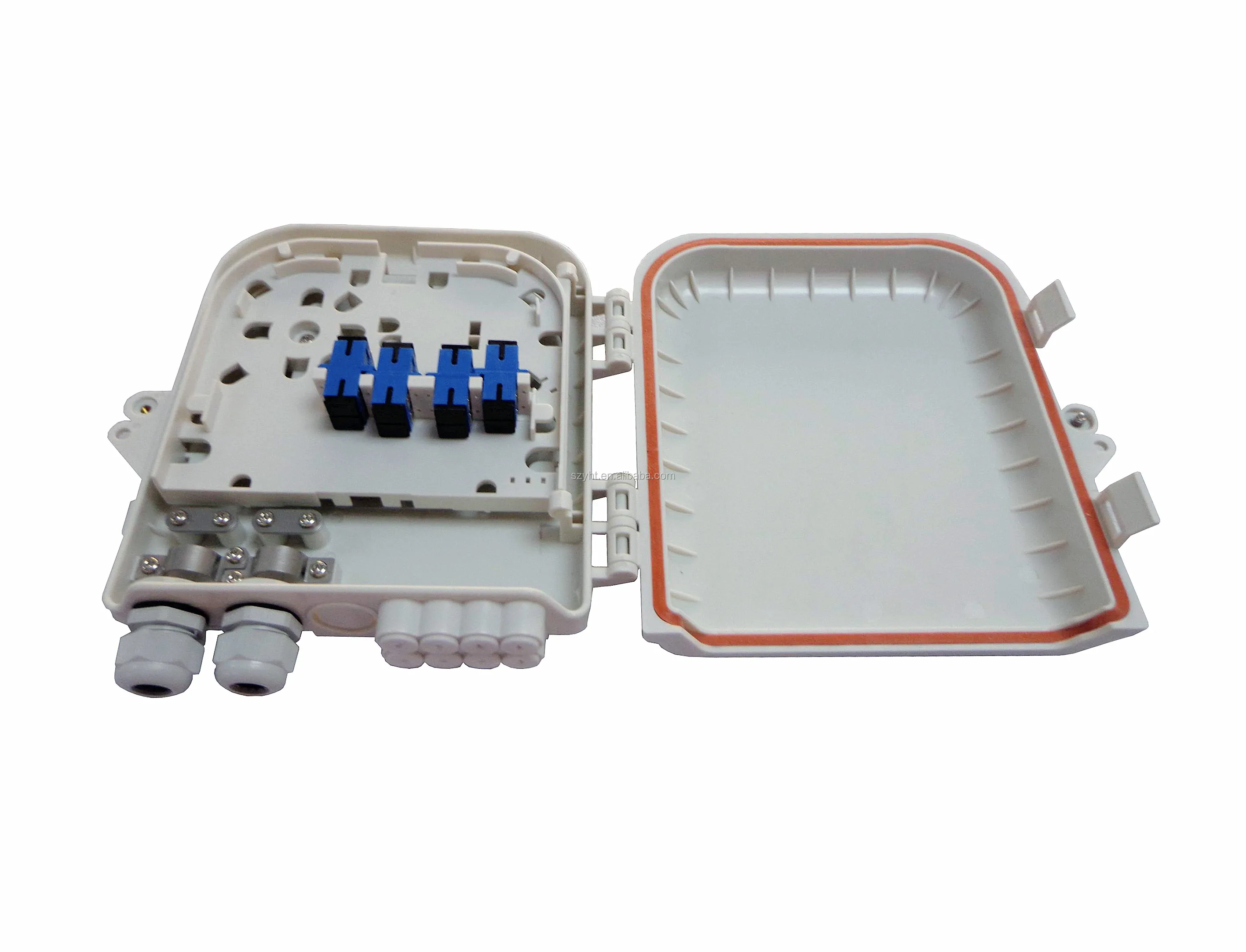

 8 Cores FTTH Nap Box Outdoor ABS Plastic 8 Cores FTTH Termination Box Support 1x8 PLC Splitter 8 Port Cable ports



Key Attributes
Industry-specific attributes
Type
FTTx Solutions


Other attributes
Model Number
OTB-0208D


Place of Origin
Guangdong, China


Brand Name
YHT


Use
FTTH FTTX FTTB


Warranty Time
1 Years


Network
Wireless Lan, wifi, 4g


Product name
8 Cores FTTH Nap Box Outdoor ABS Plastic 8 Cores FTTH Termination Box


Splitter
Can accommodate 1x4,1x8 PLC steel tube splitter.


Max. Capacity
8 FO


Dimension
206.8*230.5*52.7mm


IP Rated
65


Splice Tray
1 Tray With 16 FO


Adapter Port
8


Material
ABS


Installation Way
Wall/Pole Mounting Application


Application
FTTH, Telecom, CATV, Data Communications & Local Area Networks


Packaging and Delivery
Packaging Details
8 Cores FTTH Nap Box Outdoor ABS Plastic 8 Cores FTTH Termination Box Support 1x8 PLC Splitter 8 Port Cable ports
