Indoor Wall Mounted 4 Inlet 8 Outlet 2*3mm Drop Cable 8-port Fiber Terminal Box OTB NAP

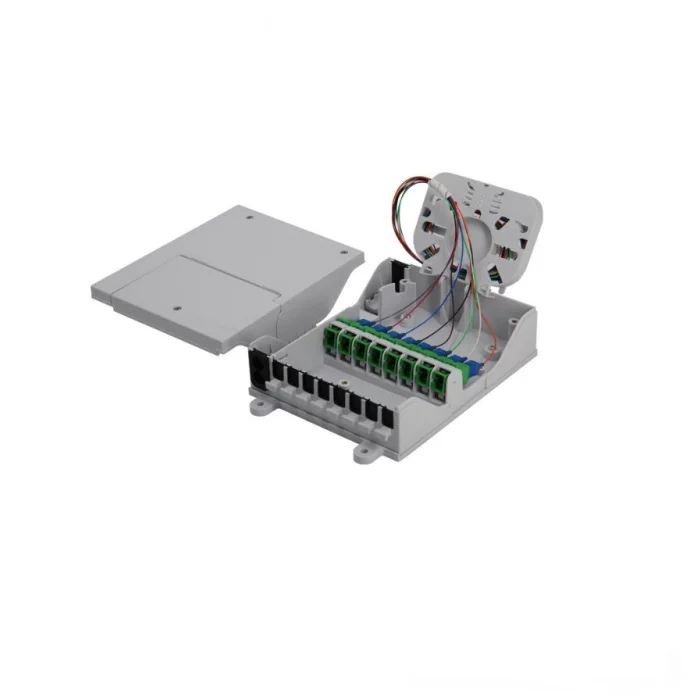

Indoor Wall Mounted 4 Inlet 8 Outlet 2*3mm Drop Cable 8-port Fiber Terminal Box OTB NAP photo-1

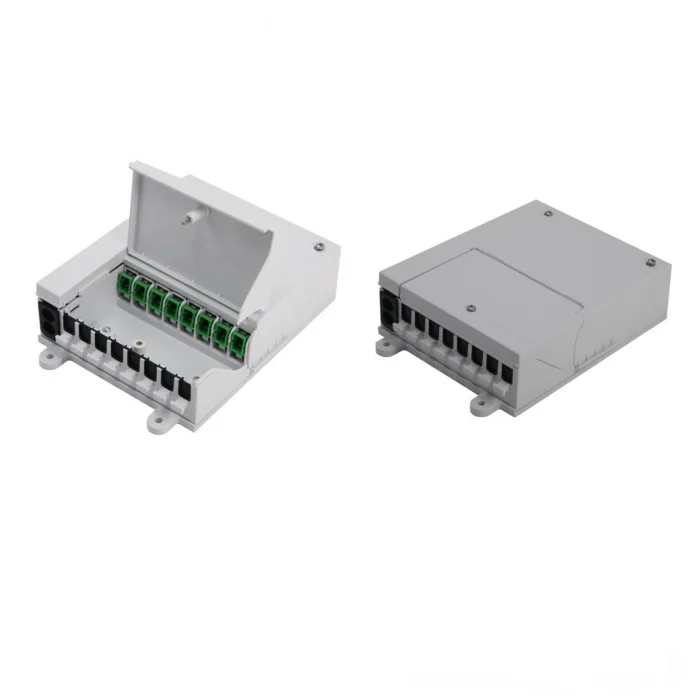

Indoor Wall Mounted 4 Inlet 8 Outlet 2*3mm Drop Cable 8-port Fiber Terminal Box OTB NAP photo-2

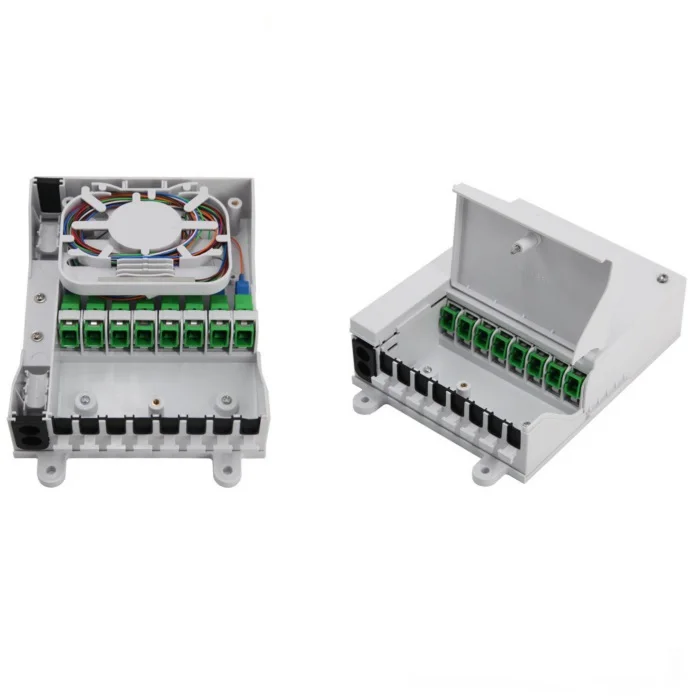

Indoor Wall Mounted 4 Inlet 8 Outlet 2*3mm Drop Cable 8-port Fiber Terminal Box OTB NAP photo-3
Indoor Wall Mounted 4 Inlet 8 Outlet 2*3mm Drop Cable 8-port Fiber Terminal Box OTB NAP photo-4
Indoor Wall Mounted 4 Inlet 8 Outlet 2*3mm Drop Cable 8-port Fiber Terminal Box OTB NAP photo-5
US$ 5 - 8 MOQ: 200 Pieces
Key Specifications
Get Latest Price
Brand Name:
CSYHT
Place of Origin:
China
Model Number:
OTB-P058
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
7 days
Brand Name CSYHT
Place of Origin China
Model Number OTB-P058


Indoor Wall Mounted 4 inlet 8 outlet 2*3mm Drop Cable 8-port Fiber Terminal Box OTB NAP

Product Description





This plastic terminal box is indoor use only, mainly for distribution vertical cable from patch cord to end customer. It is placed on the wall or bottom of the floor cabinet niche by screws.



Features:

  • Cable ports:4inlet, 8outlets

  • Max. 8 FTTH drop cable, 8 SC adapter, 8 cores for fusion

  • Indoor using,IP54.

  • The both cover is removable.

  • Can put steel tube type PLC splitter 1x2,1x4,1x8

  • High strength engineering plastic, compact size, light weight



Specification:

Model

OTB-P58

Dimension (H*W*D)

192*133*47mm

Cable ports

4 in, 8 out

Cable dimeter

In:12 mm, out: 2*3 mm

Installation

Wall mounted indoor

Max. Fusion Capacity

8cores

Splice tray

1 piece

Material

ABS

Color

White

Suitable Splitter

1x4,1x8 steel tube PLC splitter

Max. Adapter

8 pieces SC simplex coupler, without falange



Indoor Wall Mounted 4 inlet 8 outlet 2*3mm Drop Cable 8-port Fiber Terminal Box OTB NAPIndoor Wall Mounted 4 inlet 8 outlet 2*3mm Drop Cable 8-port Fiber Terminal Box OTB NAPIndoor Wall Mounted 4 inlet 8 outlet 2*3mm Drop Cable 8-port Fiber Terminal Box OTB NAP


Key Attributes
Industry-specific attributes
Type
Racks & Enclosure


Other attributes
Model Number
OTB-P058


Place of Origin
Guangdong, China


Brand Name
CSYHT


Use
Fiber patch cord manufacture


Warranty Time
1 year


Network
None


Product Name
8-port Distribution Box


Cable ports
4 in, 8 out


Cable diameter
In:12 mm, out: 2*3 mm


Installation
Wall mounted indoor


Max. Fusion Capacity
8cores


Splice tray
1 piece


Material
ABS


Color
White


Suitable Splitter
1x4,1x8 steel tube PLC splitter


Max. Adapter
8 pieces SC simplex coupler, without falange


Packaging and Delivery
Packaging Details
8 port fiber distribution box
Carton Box;
1.5KGS/pcs


Selling Units:
Single item


Single package size:
40X40X30 cm


Single gross weight:
1.500 kg


Package Type:
8 port fiber distribution box Carton Box; 1.5KGS/pcs



Lead Time
Quantity (pieces) 1 - 200 > 200
Lead time (days) 15 To be negotiated
Samples
Maximum order quantity: 1 piece
Sample price:
$20.00/piece

Customization
Customized logo
Min. order: 200
Customized packaging
Min. order: 1000
Graphic customization
Min. order: 200



For more customization details, message or email supplier!
