Product Details
Brand Name: | Kuangyuan | Place of Origin: | China | Model Number: | QDY |
Certification: | CE,ISO | After-sales Service Provided: | Engineers available to service machinery overseas | Warranty: | 18months |
Application: | Steel mills | Condition: | New | Max. Lifting Load: | 75t |
Span: | 22.5m | Rated Lifting Moment: | / | Rated Loading Capacity: | 5~75t |
Max. Lifting Height: | 15m |
Product Description
Product Description:

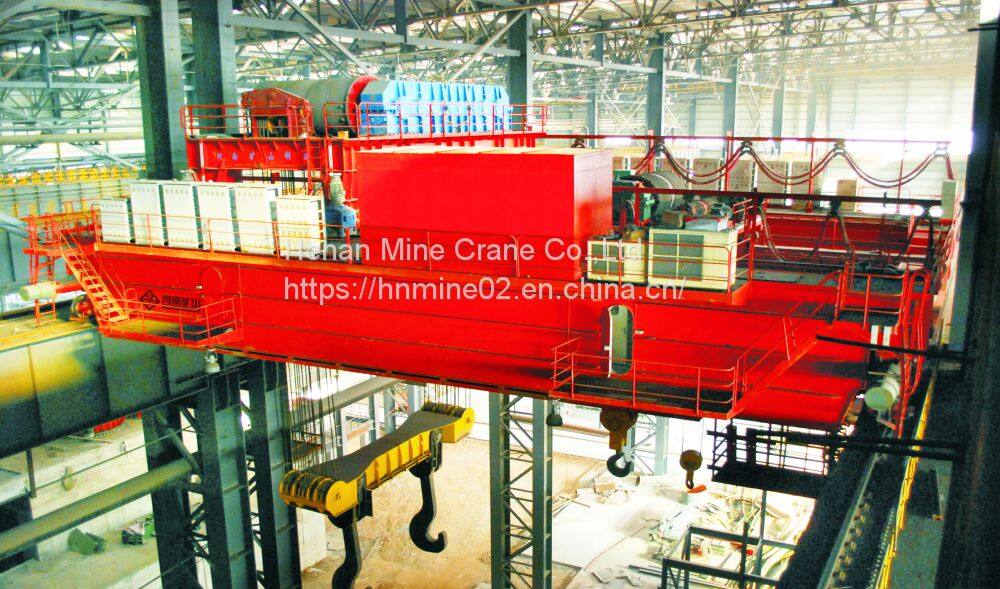

QDY model foundry ladle overhead crane A7 SEW electrics winch trolley
The metallurgical casting crane works by the longitudinal movement along the direction of the plant track, the transverse movement of the trolley and the lifting movement of the hook. It is a special crane for lifting molten metal, which is suitable for metal smelting workshop and conforms to JB/T7688.1-95 and JB/T7688.15-95 standards. The application of metallurgical casting crane is generally applicable to the ambient temperature of - 10 ºC to+50 ºC, the relative humidity is not more than 50 ºC at the temperature of 40 ºC, and the radiation temperature of the molten metal lifted to the forging hook and plate hook is not more than 300 ºC.
The steel wire rope used by foundry crane for lifting molten or hot metal is an important high-temperature resistant steel wire rope such as asbestos rope core or metal strand core.
Cast iron pulleys cannot be used for metallurgical/foundry cranes lifting molten metal.
For the crane lifting molten metal, the lifting mechanism should have the forward and reverse contactor fault protection function to prevent the motor from losing power while the brake is still energized, which will cause the motor to stall and cause heavy objects to fall.
Metallurgical/foundry cranes for lifting molten metal shall be equipped with different types of double limiters in the ascending limit position (generally the paddle type limiters and the hammer type limiters controlled by the rope guide), and can control different circuit breakers. When the lifting height is greater than 20m, the descending limit position limiters shall also be equipped.
Why choose us?
Painting of Cranes | >>primer and finishing paint;Anti-corrosion coating >>Color: yellow, red, blue according to your demand. >>Average thickness: about 100 microns | |||||
Safety Guarantee | Weight overload protection device, Top quality long time bearing polyurethane materials buffer, crane traveling limit switch, voltage lower protection function, emergency stop system, current overload protection system and so on! | |||||
Pre-sale suggestion | >>Efficient response rate during office hours. >>Professional and comprehensive crane design consultation. >>Sincere and friendly service attitude. | |||||
Service(Quality after-sales & Online guidance) | 1. Quality problems of products sold by our company will be solved as per the "three guarantees" system of our company by the "three guarantees" service team; 2. Related personnel will be sent to the site immediately after receiving quality complaints (by call, letter or oral notice) from clients; 3. Personnel involved in after-sales service shall be serious and considerate in handling the problem to make clients care-free; 4. In addition to solve quality problems, personnel involved in after-sales service shall train clients, answer their technical inquiries and related questions free of charge; 5. Related cost for products with quality problem will be shouldered by our company. Our company charges for quality problems caused by clients (or problems after the warranty term), but the charge will not be higher than the expense (or cost). | |||||
Design and Construction Rules | 1.Design rules for cranes GB/T3811-2008; 2.Safety rules for lifting appliances GB6067.1-2010; 3.General Gantry Crane GB/T14406-2011; 4.Gantry crane manufacturing and tolerances of rail installation GB/T10183-2005; 5.Crane test specification and procedures GB/T5905-1986; 6.Crane electric control equipment JB/T4315-1997; 7.Important application wire rope GB8918-2006; 8.Carbon structure steel GB/T700-2006; 9.Low alloy high strength structure steel GB/T1591-2008; 10.Welding joint radiographic inspection standard JB928-1994; 11.Steel welding joint manual ultrasonic flaw detection way GB11345-1989. | |||||
Location Advantages | Henan Mine Crane has two plants with covering 1620000 square meters, and the factory is located in Changyuan city of Xinxiang, Henan Province, China, the hometown of Chinese lifting. So our technology has reached a mature stage to ensurance our quality and products' safty. At the same time, we passed ISO internation quality certificates and so on. We have over 10 super Industry experts and more than 200 middle or senior engineers to supply the best plan according to your customized requirements. We have full-automatic manufacturing workshop and we have over 5100 employees.Last year, we sold 100,000 plus industrial cranes and hoists, reaching a revenue of 9.16 Chinese yuan in total. So fast delivery time can help you save time and money. |
