High Configuration/New/Automatic Conical Paper Tube Machine
US$ 25000 - 35000
MOQ: 1 Case
Key Specifications
Get Latest Price
Brand Name:
TONGRI
Place of Origin:
China
Voltage:
380V
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
30 days
Related Products
-
High Quality Spiral Paper Tube Forming Machine Precise Cutter PartUS$ 24000 - 35000MOQ: 1 Piece -
Firecracker Paper Tube Machine, Paper MachineryUS$ 55000 - 85000MOQ: 1 Piece
-
Single Side Gluing/ Easy Operation/ Fireworks Paper Bobbin MachineUS$ 55000 - 85000MOQ: 1 Piece
-
High Speed Factory Production Fireworks Paper Cone Core Making MachineUS$ 55000 - 85000MOQ: 1 Piece
-
Automatic High Configuration Conical Paper Tube Making Machine Reeling Machine Paper MachineryUS$ 25000 - 35000MOQ: 1 Piece
Brand Name
TONGRI
Place of Origin
China
Voltage
380V
Product Type
Paper Core Machine
Condition
New
Processing Type
Printing Machine
1.Paper Slitter
FQ -1600 function is to slit paper into various sizes before reeling. It has self-locking function for upper and lower blades. Pneumatic reeling spindle, double reeling and step-less speed adjustment.
Maximum width: 1600mm
Power: 5.5KW
Slitting width:
Machine size: 2500mm*2500mm*1500

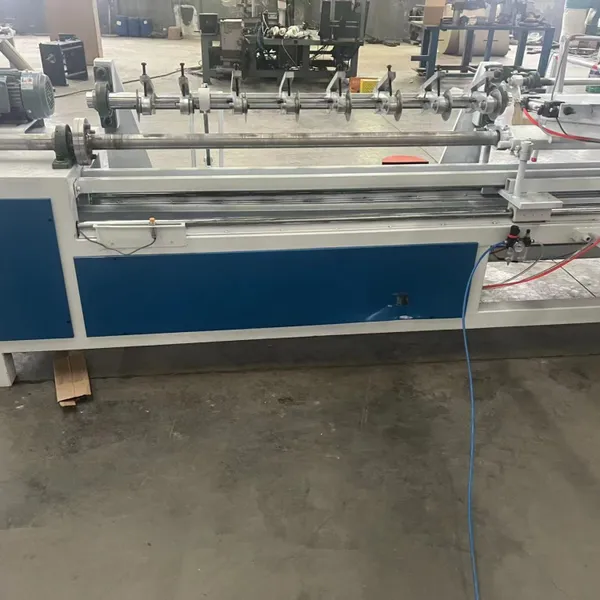

2. Tracing, Cutting Spiral tube Machine
FQ -1600 function is to slit paper into various sizes before reeling. It has self-locking function for upper and lower blades. Pneumatic reeling spindle, double reeling and step-less speed adjustment.
Maximum width: 1600mm
Power: 5.5KW
Slitting width:
Machine size: 2500mm*2500mm*1500
2. Tracing, Cutting Spiral tube Machine
The function is to roll the tube and long tube cutting. Tolerances: +5mm, which will meet the standard for cloth tube reeling and air spinning reeling. If particular length needed, precision cutter will need to be connected.
Paper tube thickness: 0.8 - 10mm
Paper tube diameter: 20 - 200mm
Speed: 3 -15 meters/min (step-less speed adjustment)
Gluing mode: Inclined gluing
Paper Hanger: Whole frame
3. Precise Cutter
The function is to cut the semi-finished product into the required length of chemical fibre tube and air spinning tube. The machine has pneumatic control which makes it easy to adjust. Suitable for various specification of air spinning tube.
Paper tube inner diameter: 30-100mm
Cutting thickness: 1-8mm
Blades: 8 sets(standard);
Operator: 1; Power: 1.5KW
