Single Side Gluing/ Easy Operation/ Fireworks Paper Bobbin Machine
US$ 55000 - 85000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
TONGRI
Place of Origin:
China
Model Number:
TR
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
30 days
Related Products
-
Tongri Full Automatic Most Advanced Fireworks Paper Bobbin Making MachineUS$ 25000 - 35000MOQ: 1 Piece -
High Configuration/New/Automatic Conical Paper Tube MachineUS$ 25000 - 35000MOQ: 1 Case
-
Paper Tube Machine/High Speed/Various Specification/paper Cone MachineUS$ 25000 - 35000MOQ: 1 Piece
-
Zengshan/ ZSZ-2022/ Full Automatic/ Paper Bobbin Making MachineUS$ 25000 - 35000MOQ: 1 Piece
-
Tongri/ Trz-2022/ Full Automatic/ Paper Bobbin Reeling MachineUS$ 25000 - 35000MOQ: 1 Piece
Brand Name
TONGRI
Place of Origin
China
Model Number
TR
Condition
New
Product details

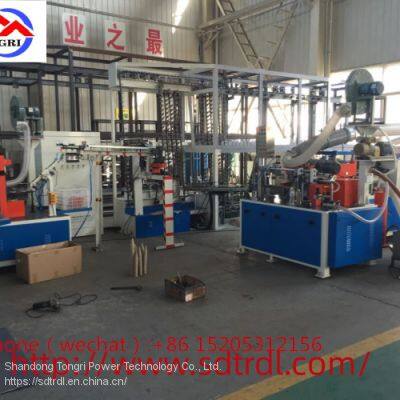

The automatic production line for fireworks paper bobbins, the main driving force transmitted through a cam mechanism for time control purposes. It uses a range of electromechanical control technologies such as post operation control, high/low two-speed inverter control, photoelectric control, approach control and pneumatic delay control to ensure less manpower, low energy consumption, high efficiency and top quality production. It consists of paper cone winding umit, drying oven, and paper cone finishing unit.
The whole firework paper cone production process is as follows,
Rolling---Internal and external printing---Paper edge grinding---paper cutting--- paper cone winding&trimming--- Paper cone drying---Head Curling---Final products collating
Main Technical parameters
1. winding machine
This winding machine is suitable for firework paper cone of various specification. After hanging the paper roll, internal and external printing, edge grinding, cutting, winding, head cutting, the semi-finished paper cone will be sent to the dryer. It takes double speed variable frequency control technology. The winding speed will be adjusted automatically.
The whole process is easied by connecting with the dryer.
2. collating machine
The speed can be adjusted freely with over-load protector and automatic stopping equipment when the improper operation happens to guarantee the safety and stability and tower the waste rate. The after finishing machine can also be used individually.
Main parameters
3. drying machine
The auto-temperature control dryer uses chain-type circulation drying. After setting up the temperature, the heat can be controlled, maintained and adjusted freely, featured low consumption and high outcome. Firework paper cone can be feed and collected automatically after connecting with other equipment.
Main parameters
The automatic production line for fireworks paper bobbins, the main driving force transmitted through a cam mechanism for time control purposes. It uses a range of electromechanical control technologies such as post operation control, high/low two-speed inverter control, photoelectric control, approach control and pneumatic delay control to ensure less manpower, low energy consumption, high efficiency and top quality production. It consists of paper cone winding umit, drying oven, and paper cone finishing unit.
The whole firework paper cone production process is as follows,
Rolling---Internal and external printing---Paper edge grinding---paper cutting--- paper cone winding&trimming--- Paper cone drying---Head Curling---Final products collating
Main Technical parameters
| Speed | 50pcs/min |
| Applicable glue | white glue/Tapioca starch glue |
| Power | 49.2 KW/380V/50HZ/3Phases |
| Operator | 1persons |
1. winding machine
This winding machine is suitable for firework paper cone of various specification. After hanging the paper roll, internal and external printing, edge grinding, cutting, winding, head cutting, the semi-finished paper cone will be sent to the dryer. It takes double speed variable frequency control technology. The winding speed will be adjusted automatically.
The whole process is easied by connecting with the dryer.
| speed | 50 pcs/min |
| Power | 13.27kw |
2. collating machine
The speed can be adjusted freely with over-load protector and automatic stopping equipment when the improper operation happens to guarantee the safety and stability and tower the waste rate. The after finishing machine can also be used individually.
Main parameters
| Types | Various firework paper cone |
| Speed | 50PCS/min |
| Air Pressure | 0.3-0.4mpa |
3. drying machine
The auto-temperature control dryer uses chain-type circulation drying. After setting up the temperature, the heat can be controlled, maintained and adjusted freely, featured low consumption and high outcome. Firework paper cone can be feed and collected automatically after connecting with other equipment.
Main parameters
| Speed | 50pcs/min |
| Power | 10.1-24.5kw |
