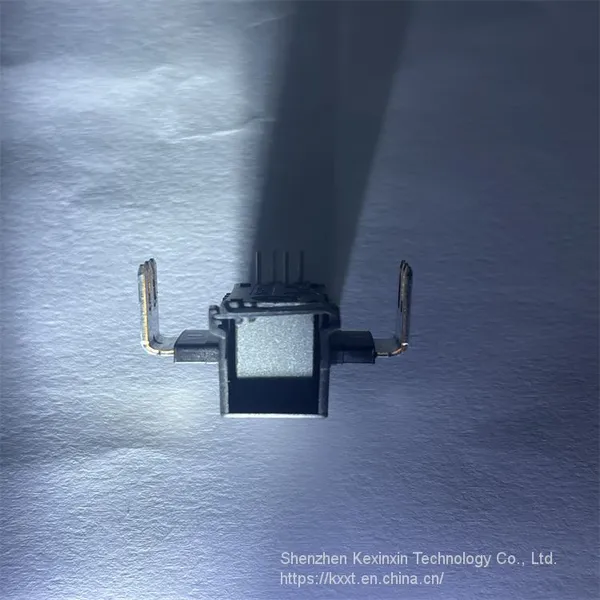

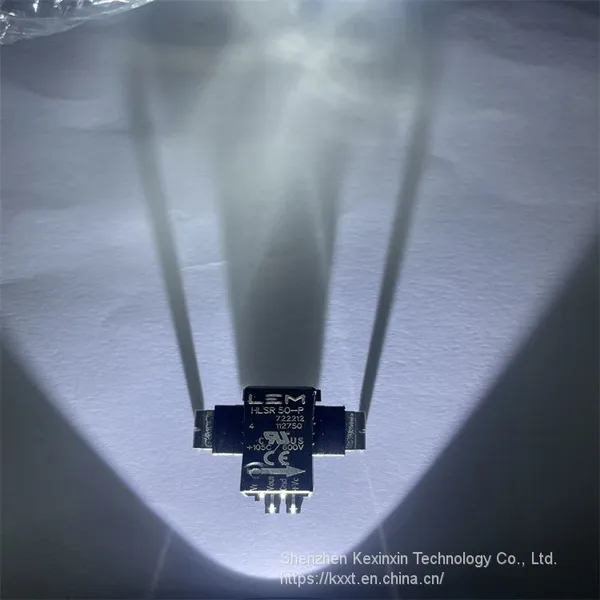

Help CenterElectronic Components Supplier HLSR 50-P LEM USA Inc. SENSOR CURRENT HALL 50A AC/DC
Related Products
-
LA 25-NP LEM USA Inc. Current Sensor 5A, 6A, 8A, 12A, 25A (Selectable) 1 Channel Hall Effect, Closed Loop Bidirectional ModuleUS$ 7 - 34MOQ: 1 Piece -
New Original Electronic Component Sensor LA 55-P LEM Inc. Current Sensor 50A 1 Channel Hall EffectUS$ 8 - 34MOQ: 1 Piece
-
LA 55-P LEM Inc. Current Sensor 50A 1 Channel Hall Effect, Closed Loop Bidirectional Module, Single Pass ThroughUS$ 8 - 34MOQ: 1 Piece
-
HLSR 50-P LEM USA Inc. SENSOR CURRENT HALL 50A AC/DCUS$ 5 - 13MOQ: 1 Piece
-
High Ruggedness, Temperature Stable Integrateds Circuit HMG75N65TUS$ 1.8 - 3MOQ: 50 Pieces
Manufacturer Product Number
HLSR 50-P
Category
Sensors, Transducers
Current Sensors
Mfr
LEM USA Inc.
Series
HLSR-P
Package

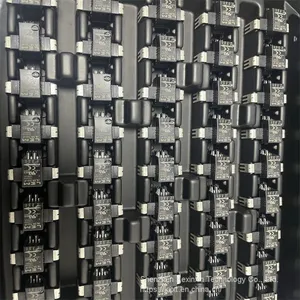

Tray
Product Status
Active
For Measuring
AC/DC
Sensor Type
Hall Effect, Open Loop
Current - Sensing
50A
Number of Channels
1
Output
Ratiometric, Voltage
Sensitivity
16mV/A
Frequency
400kHz
Linearity
±0.5%
Accuracy
±1%
Voltage - Supply
5V
Response Time
2.5µs
Current - Supply (Max)
25mA
Operating Temperature
-40°C ~ 105°C
Polarization
Bidirectional
Mounting Type
Through Hole
Package / Case
Module
Features
● Open loop multi-range current transducer
● Voltage output
● Single supply +5 V
● Galvanic separation between primary and secondary
● Low power consumption
● Compact design for through-hole PCB mounting
● Factory calibrated
● High bandwidth, very low loss magnetic core.
Advantages
● Extremely low profile: h = 12 mm
● Low foot-print
● Low offset drift
● Over-drivable Uref
Applications
● AC variable speed and servo motor drives
● Static converters for DC motor drives
● Battery supplied applications
● Uninterruptible Power Supplies (UPS)
● Switched Mode Power Supplies (SMPS)
● Power supplies for welding applications
● Combiner box
● MPPT.
Standards
● EN 50178: 1997
● IEC 61010-1: 2010
● IEC 61326-1: 2012
● UL 508: 2010.
Application Domain
● Industrial
Factory Pack Quantity: 400
price: 6.15-12.5
