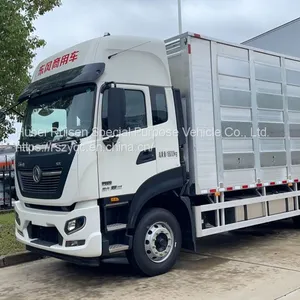

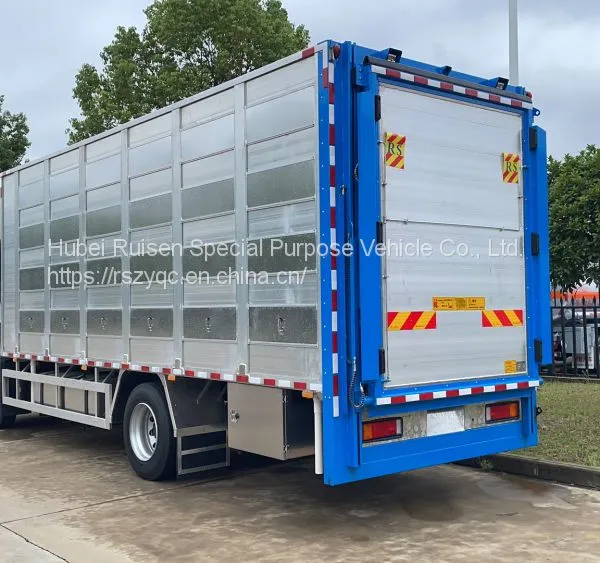

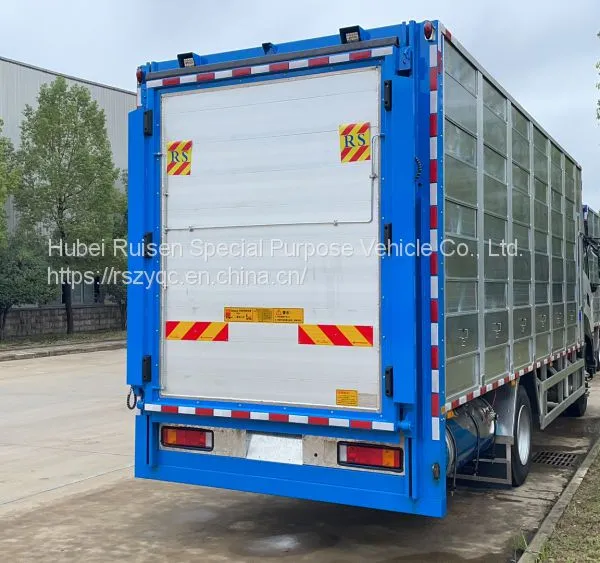

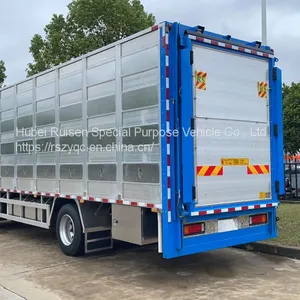

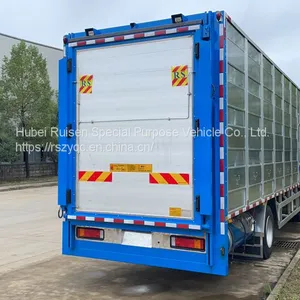

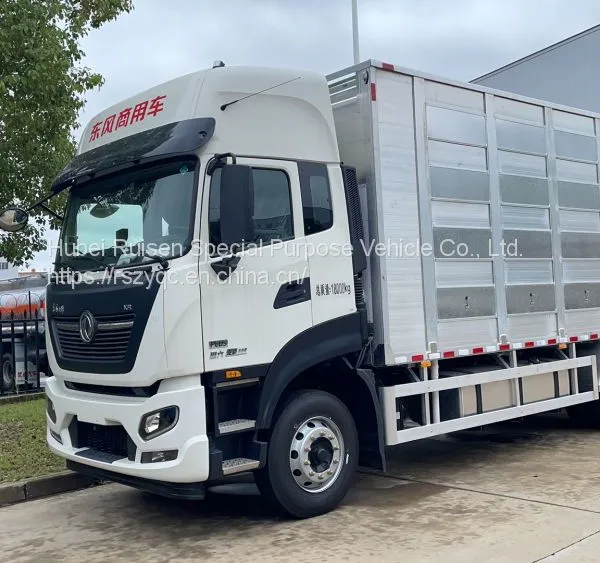

Chusheng brand CSC5252CCQD6 livestock and poultry transport vehicle

Chassis configuration:

Chassis model: DFH1250EX, D560-high top double bed, engine engine DDi75E300-60, displacement 7.5L, gearbox 9JS119T-B DD, front and rear axle 4.5T/11T (DF400), wheelbase 1995+3500, speed ratio 3.07, plate spring 3/3/10+8, Girder 250×80×[7+4], oil tank aluminum alloy 400L, 295/80R22.5 18PR tire vacuum, cab hydraulic electric, after market differential package; QH50 power extractor, mounted control unit (BBM), 140Ah battery.

Top configuration:

Car aluminum alloy material, multi-layer structure, the height can be customized (four to two, three to two), with air conditioning, heating, fan, drinking water, spray, air filtration, lighting, monitoring, temperature detection. The top cover is hydraulically opened, the layer plate is open to facilitate loading and unloading and cleaning, and the tail plate is lifted vertically. Remote control operation.

Functional features:

High degree of lightweight, reduce fuel consumption and tire wear, energy saving and emission reduction, economic application;

Strong corrosion resistance, wide range of transportation, durable, easy to clean, effectively extend the service life of the box;

Good expansion rate, high strength, fast heat conduction, effective and rapid elimination of bacteria, prevent swine fever infection;

Aluminum alloy box with high recyclability, reduce scrap costs;

Box seal, with sewage collection, effective control of road pollution, in line with national environmental protection requirements;

All the important structural parts are made of tooling molds to ensure the accuracy requirements and ensure product consistency;

The bottom plate and the column are all fully welded without cracks and dead angles, and the car has no odor after cleaning.

Top configuration details:

Carriage structure: aluminum alloy box, high strength steel auxiliary beam. Aluminum alloy equipment box, 3 columns per layer, 6 columns on the second layer, 9 columns on the third layer, 12 columns on the fourth layer, the central barrier board of each layer is open to facilitate access, loading and unloading, cleaning, and hydraulic lifting at the top.

Sealing system: Sliding doors on both sides of the car.

Fan system: Installed on both sides of the trunk, each layer of four fans (2 forward air, 2 rear air).

Drinking water system: Each column is configured with two drinking water spouts.

Spray system: Each column is equipped with two sprinklers.

Heating system: two heaters, with temperature induction, stop running when the temperature is too high.

Air conditioning system: Install air conditioning, so that the temperature in the carriage is controlled at a constant temperature.

Air filtration system: equipped with air filtration.

Generator: Large generator 180A.

Monitoring system: Each layer is installed video surveillance (high-definition waterproof with night vision function) and temperature sensors, through video surveillance to understand the situation in the entire carriage, through the temperature alarm, adjust the temperature in the carriage.

Lighting system: Each layer has LED lights, easy to work at night, front warehouse lights each layer 1, 2 tail lights.

Hydraulic lifting system: lift the tail plate, lift the pig to the specified layer, improve the loading efficiency (wire rope).

Sewage system: there is a sewage outlet under the car, which is convenient to discharge the sewage inside the car (four). One drain in the front bin, one drain in the rear bin and two drain in the rear bin.

Battery: Install two 180A batteries to solve the internal power supply of the vehicle parking box for a short time.

Operating system: Cockpit operation (spray, fan, lighting). Tailboard, top lift for remote control and control box operation. (With 2 remote controls).
