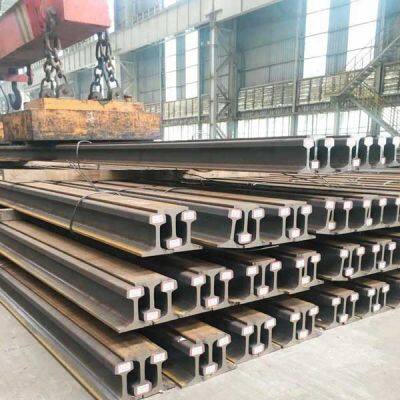

American Standard Asce25/ 25Lbs Crane Steel Rail

FOB Price

Negotiable / Ton

10 Tons(Min. Order)

Payment TermsT/T L/C D/P D/A Credit Card PayPal Cash Escrow Other

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Model Number	Rail P50 Railway Steel Rail	Type	Heavy Rail
Application	Railway Rail	Standard	DIN
Secondary Or Not	Non-secondary

Product Description

AMERICAN STANDARD STEEL RAIL

What is American standard steel rail?

American standard steel rail is a common type of steel rails. Signum Rail supplies American standard steel rails and implements American ASTM A1 standard. Steel rails such as ASCE25,ASCE30,ASCE40,ASCE60,ASCE75,ASCE85,90RA,115RE,136RE,175LBS are all available in Signum.

Types of American standard steel rail

The common American standard steel rail includes ASCE25, ASCE30, ASCE40, ASCE60, ASCE75, ASCE85, 90RA, 115RE, 136RE and 175LBS.

Specifications of American standard steel rail

Specifications of ASCE rail
Size	Dimension(mm)				Weight	Material	Length(m)
Size	Head(mm)	Height(mm)	Bottom(mm)	Web(mm)	Weight	Material	Length(m)
ASCE 25	38.1	69.85	69.85	7.54	12.4	700	6-12m
ASCE 30	42.86	79.38	79.38	8.33	14.88	700	6-12m
ASCE 40	47.62	88.9	88.9	9.92	19.84	700	6-12m
ASCE 60	60.32	107.95	107.95	12.3	29.76	700	6-12m
ASCE 75	62.71	122.24	122.24	13.49	37.2	900A/1100	6-12m
ASCE 85	65.09	131.76	131.76	14.29	42.17	900A/1100	6-12m
90RA	65.09	142.88	130.18	14.29	44.65	900A/1100	6-12m
115RE	69.06	168.28	139.7	15.88	56.9	900A/1100	6-12m
136RE	74.61	185.74	152.4	17.46	67.41	900A/1100	6-12m
175LBs	109.86	152.4	152.4	38.1	86.8	900A/1100	6-12m

Supplier of American standard steel rail

Signum Rail is a reliable steel rail material supplier in China. If you want to inquire more details about the American standard steel rail, please feel free to contact Signum Rail. We’ll feed back to you as soon as possible.

Service of American standard steel rail supplied by Signum Rail

European Standards and CE Marking

Customization service as you need.
