Product Description

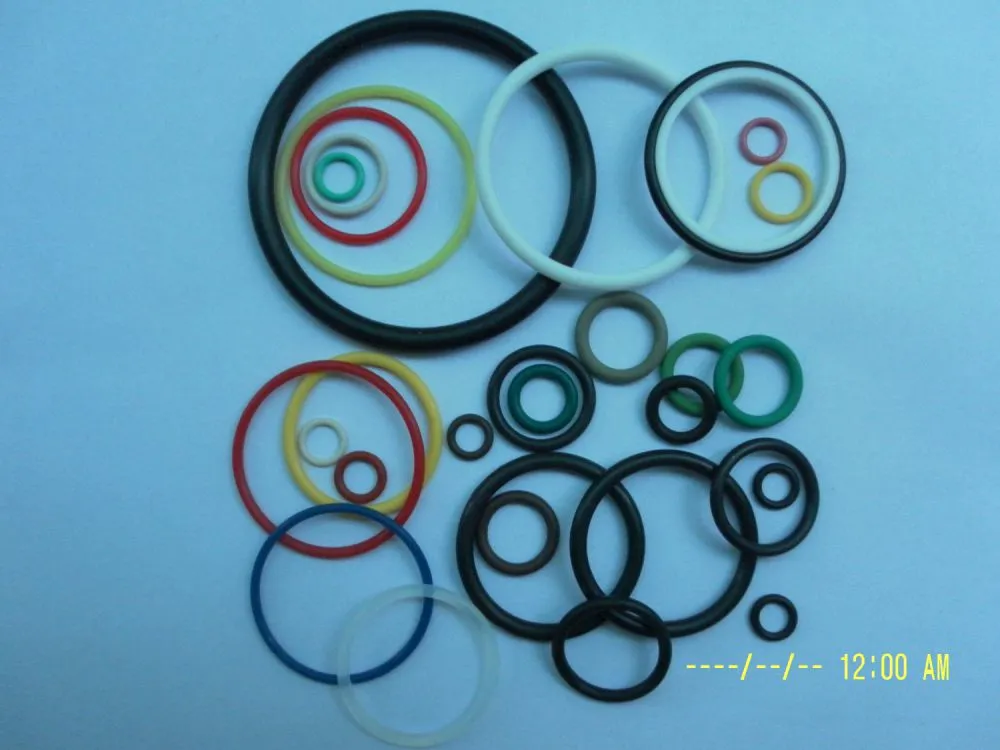

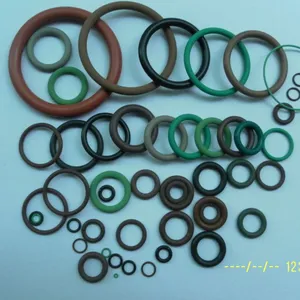

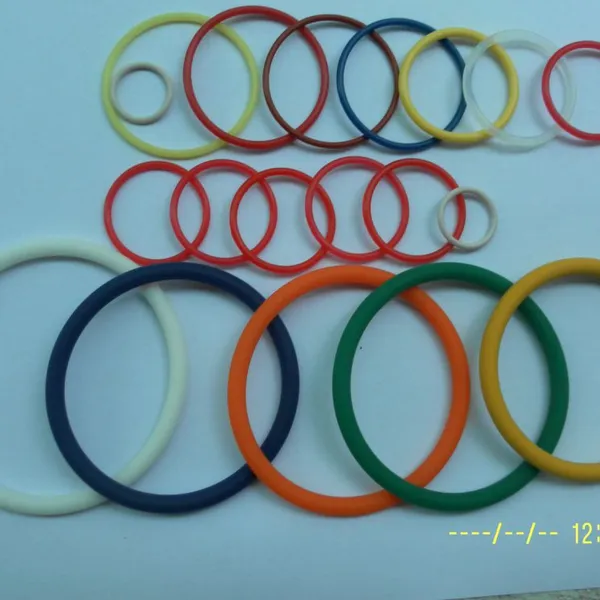

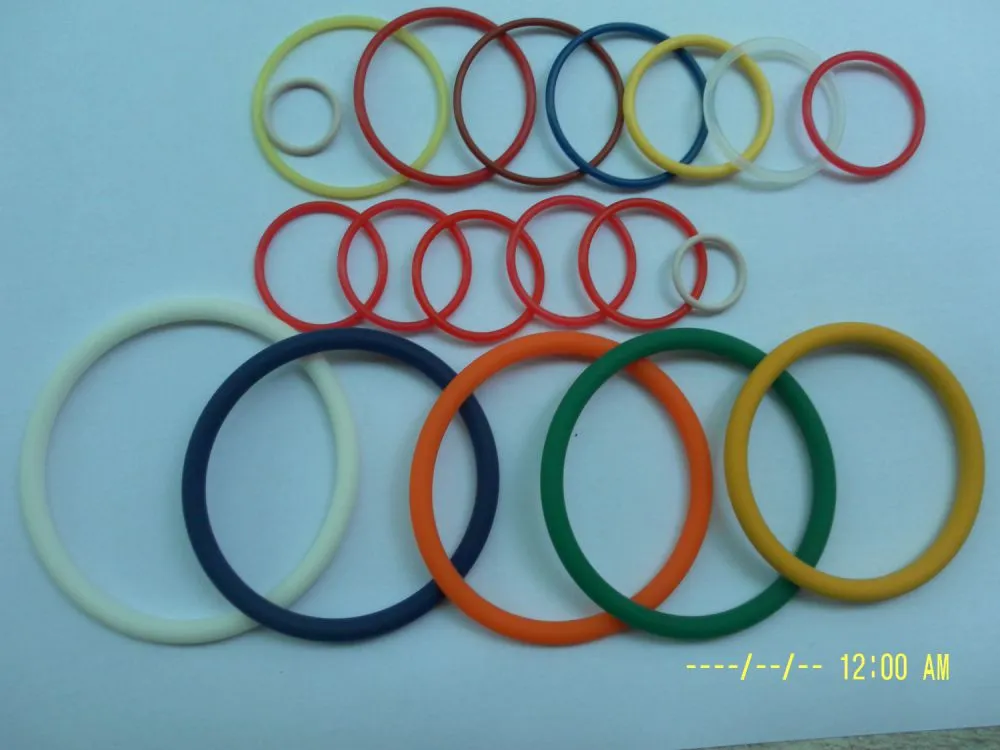

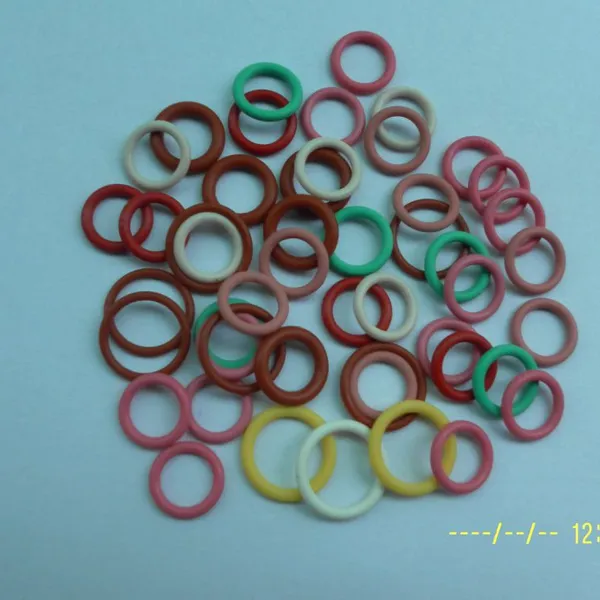

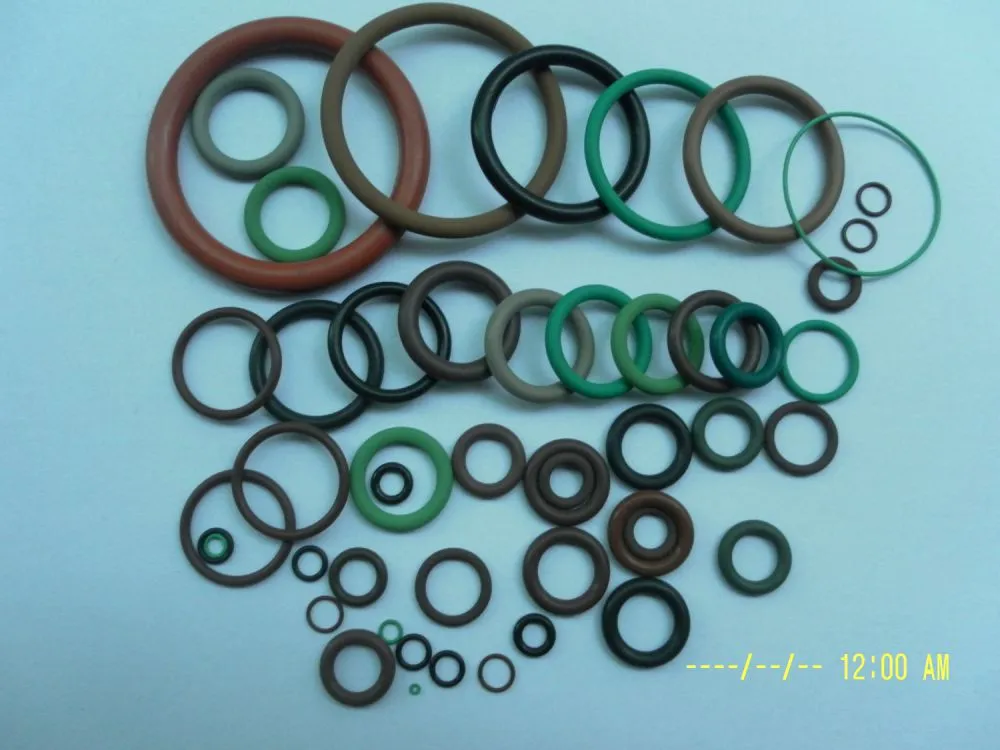

An O-ring, also known as a packing, or a toric joint, is a mechanical gasket in the shape of a torus; it is a loop of elastomer with a round cross-section, designed to be seated in a groove and compressed during assembly between two or more parts, creating a seal at the interface.
The O-ring may be used in static applications or in dynamic applications where there is relative motion between the parts and the O-ring. Dynamic examples include rotating pump shafts and hydraulic cylinder pistons.
O-rings are one of the most common seals used in machine design because they are inexpensive, easy to make, reliable, and have simple mounting requirements. They can seal tens of megapascals (thousands of psi) of pressure.
Function of the rubber o ring
O-Rings are used in sanitary pipeline systems for the Auto, Machinery, Food, Dairy, Beverage, Pharmaceutical and Bio-Tech industries. Rubber Fab offers a full line of AS568 dash numbers, metric, and specialty o-ring sizes that are manufactured using EPDM, NBR, FKM Fluoroelastomer, Buna-N, PTFE, Silicone and so on.
The o-rings used in cylinder, pump, railcars, truck, washing machine, instrument and meter, mine equipment, pipeline, household appliances, automobile, steamboat, industrial electrical equipment, building door& window, construction machinery, construction bridges and tunnel.
1. mechanical sealing, pressure vessel ,gas compressor, reaction vessel ,heat
exchanger, boiler, filter and so on.
2.it can be used for all kinds of electronic products in a wide range ,such as camera, mobile phone, printer, computer.
3. Used for automobile windows and doors, etc...
4.Silk screen printing, spray coating, laser etching, back-lighted, hard/epoxy coating keypads.
Product Name |
Rubber o ring for sealing |
Materials |
NBR, HNBR, EPDM, SILICONE, VITON, FLS, FFPM, PTFE |
Temperature |
NBR(-40~120°C),FFKM(-20~320°C) Viton(-20~200°C),Silicone (-70~220°C) EPDM(-50~150°C),PU(-40~90°C) |
Feature |
Resistance to high pressure, oil, weather, abrasion, solvent, high temperature, abrasion resistant, aging resistant, insulation, acid and alkaline resistant |
Cerfiticate |
ISO 9001:2008 ISO13485 |
Hardness |
30-90 shores A |
Color |
Red, Black, White, blue, green, Clear, etc |
Size |
Any size, Customized/standard and nonstandard |
Sample time |
If instock, within 3 days after payment |
Delivery time |
7-15 days by express after payment 10-20 days by ship |
Shipping |
Small quantity: UPS/FeDex/DHL express Large quantity: by Air/Sea |
Customized |
OEM & ODM are welcomed |
packing |
plastic bag&carton box or according to your requirements |
Application |
chemical industry, petroleum industry, medical technique, food industry, sewage-disposal industry, steel industry, semi-conduct industry and so on. |
Viton O ring |
Silicone O ring |
NBR O ring |
HNBR O ring |
EPDM O ring |
NR O ring |
Peoprene O ring |
|
Abbreviation |
FKM |
silicone |
NBR |
HNBR |
EPDM |
NR |
Neoprene |
Durometer(shoreA) |
60-90 |
30-90 |
20-95 |
50-90 |
30-90 |
20-90 |
20-95 |
Tensile(P.S.I) |
500-2000 |
200-1500 |
200-3000 |
2600 |
500-2500 |
500-3500 |
500-3000 |
Elongation(Max.%) |
300 |
700 |
600 |
530 |
600 |
700 |
600 |
Compression set |
good |
Good |
Good |
Excellent |
Good |
Excellent |
Good |
Resilience-Rebound |
Fair |
Good |
Good |
Excellent |
Good |
Excellent |
Excellent |
Abrasion Resistance |
Good |
Fair to poor |
Excellent |
Excellent |
Good |
Excellent |
Excellent |
Tear Resistance |
Good |
poor |
Good |
Excellent |
Fair |
Excellent |
Good |
Solvent Resistant |
Excellent |
poor |
Good to excellent |
Good |
Poor |
Poor |
Fair |
Oil Resistant |
Excellent |
Fair to poor |
Good to excellent |
Excellent |
Poor |
Poor |
Fair |
What Kind of Information We Need?
1. Material: "Common Material Performance List" could be sent for reference. If still not sure, suitable material could be suggested according
to WORKING CONDITION, for example: working temp. and working medium ( oil, seawater, solvent and so on)
2. SIZE: Drawing is better, if no, welcome to send SAMPLE to us, then we will measure it by professional equipment--Optical Projector, and
make 3D drawing for you.
3. Hardness & Color: Hardness could be suggested by your sample or working pressure, any color is welcome.
4. Qty: Any quantity is welcome, we like to along with you about the NEW PRODUCTS from DESIGN to FINISHED.
5. Other special request: Precision, compression set, elongation, and so on.
*Drawings, photos and samples are welcomed.
*We can produce the product according to your requirement or samples.
