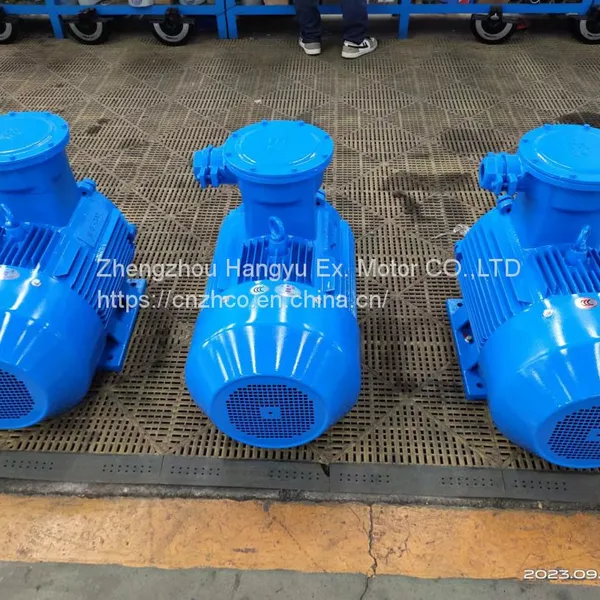

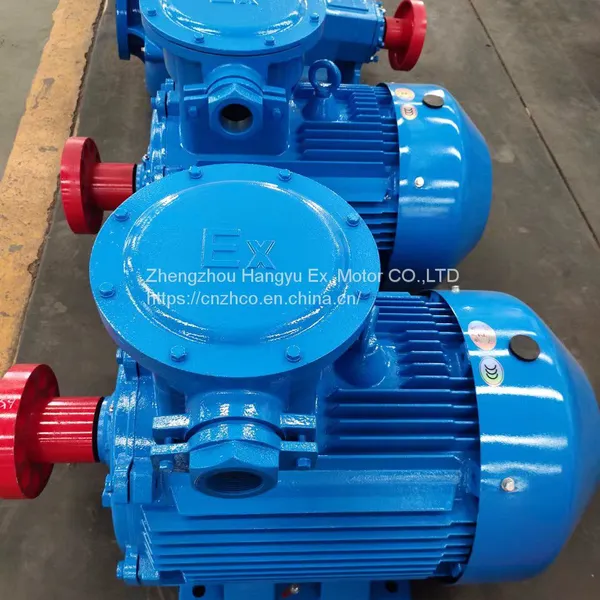

IE4 380V Explosion proof 3 phase asynchronous motor YB ，YBX4，electrical motor
USD $1 - $2000
/ Set
1 Set(Min.Order)
- 20000 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 7 days
You May Like
-
EAC AC Explosion proof 3 phase asynchronous motor YB ,YB3，YBX4，electrical motor
-
19203-01-30A , 641101753, Casing for Mission Magnum 2500 supreme Pump 3x2x13 ,G0006025 Housing Assembly Sand pump spare parts
-
Repair gasket kits for MCM Centrifugal Sand pump spare parts
-
Pump shaft for MCM Centrifugal Sand pump spare parts
-
Pump shaft for Mission Magnum 2500 supreme Centrifugal Sand pump spare parts
-
Efficient and energy-saving Mud Agitator ,7.5KW mud mixer ,NJ7.5-155 Mud Agitators for Mud Tank
Product Details
| Brand Name | Zhenghang | Place of Origin | China | |
| Model Number | 75KW | Type | Asynchronous Motor | |
| Output Power | 1.1KW ~90KW | Frequency | 50HZ / 60HZ / 70HZ | |
| Efficiency | IE 4 | AC Voltage | Other, 380V~660V | |
| Certification | Other, CCC, CE, ROHS, UL, VDE, IEC | Phase | Three-phase | |
| Protect Feature | Explosion-proof |
Product Description
IE4 Explosion proof three-phase asynchronous motor YB ,YBX4， 75KW flameproof electric motor
| Frame size | Output (Kw) | Current (A) | Speed (r/min) | Efficiency (%) | Power factor (cosφ) |
| Synchronous speed 3000r/min | |||||
| 100L-2 | 3 | 6.2 | 2870 | 84.6 | 0.87 |
| 112M-2 | 4 | 8.0 | 2890 | 85.8 | 0.88 |
| 132S1-2 | 5.5 | 10.9 | 2900 | 87.0 | 0.88 |
| 132S2-2 | 7.5 | 14.5 | 2900 | 88.1 | 0.89 |
| 160M1-2 | 11 | 21.0 | 2940 | 89.4 | 0.89 |
| 160M2-2 | 15 | 28.4 | 2940 | 90.3 | 0.89 |
| 160L-2 | 18.5 | 34.7 | 2940 | 90.9 | 0.89 |
| 180M-2 | 22 | 41.1 | 2950 | 91.3 | 0.89 |
| 200L1-2 | 30 | 55.7 | 2950 | 92.0 | 0.89 |
| 200L2-2 | 37 | 68.3 | 2950 | 92.5 | 0.89 |
| 225M-2 | 45 | 82.7 | 2960 | 92.9 | 0.89 |
| 250M-2 | 55 | 100.7 | 2970 | 93.2 | 0.89 |
| 280S-2 | 75 | 136.5 | 2970 | 93.8 | 0.89 |
| 280M-2 | 90 | 163.3 | 2970 | 94.1 | 0.89 |
| Synchronous speed 1500r/min | |||||
| 100L1-4 | 2.2 | 4.9 | 1420 | 84.3 | 0.81 |
| 100L2-4 | 3 | 6.5 | 1420 | 85.5 | 0.82 |
| 112M-4 | 4 | 8.7 | 1430 | 85.6 | 0.82 |
| 132S-4 | 5.5 | 11.6 | 1450 | 87.7 | 0.82 |
| 132M-4 | 7.5 | 15.5 | 1450 | 88.7 | 0.83 |
| 160M-4 | 11 | 21.9 | 1460 | 89.8 | 0.85 |
| 160L-4 | 15 | 29.3 | 1460 | 90.6 | 0.86 |
| 180M-4 | 18.5 | 35.8 | 1470 | 91.2 | |
| 180L-4 | 22 | 42.4 | 1470 | 91.6 | |
| 200L-4 | 30 | 57.4 | 1470 | 92.3 | |
| 225S-4 | 37 | 70.5 | 1480 | 92.7 | |
| 225M-4 | 45 | 85.4 | 1480 | 93.1 | |
| 250M-4 | 55 | 103.9 | 1480 | 93.5 | |
| 280S-4 | 75 | 137.8 | 1480 | 94.0 | 0.88 |
| 280M-4 | 90 | 164.9 | 1480 | 94.2 | |
| Synchronous speed 1000r/min | |||||
| 100L-6 | 1.5 | 3.9 | 930 | 79.8 | 0.74 |
| 112M-6 | 2.2 | 5.5 | 940 | 81.8 | 0.74 |
| 132S-6 | 3 | 7.4 | 970 | 83.3 | 0.74 |
| 132M1-6 | 4 | 9.7 | 84.6 | 0.74 | |
| 132M2-6 | 5.5 | 13.0 | 86.0 | 0.75 | |
| 160M-6 | 7.5 | 16.8 | 87.2 | 0.78 | |
| 160L-6 | 11 | 23.9 | 88.7 | 0.79 | |
| 180L-6 | 15 | 31.4 | 980 | 89.7 | 0.81 |
| 200L1-6 | 18.5 | 38.4 | 90.4 | 0.81 | |
| 200L2-6 | 22 | 44.8 | 90.9 | 0.82 | |
| 225M-6 | 30 | 61.4 | 91.7 | 0.81 | |
| 250M-6 | 37 | 72.6 | 92.2 | 0.84 | |
| 280S-6 | 45 | 85.8 | 990 | 92.7 | 0.86 |
| 280M-6 | 55 | 104.4 | 93.1 | 0.86 | |
| Synchronous speed 750r/min | |||||
| 100L1-8 | 0.75 | 2.4 | 690 | 70.0 | 0.67 |
| 100L2-8 | 1.1 | 3.4 | 690 | 72.0 | 0.69 |
| 112M-8 | 1.5 | 4.4 | 690 | 74.0 | 0.70 |
| 132S-8 | 2.2 | 6.0 | 710 | 79.0 | 0.71 |
| 132M-8 | 3 | 7.8 | 80.0 | 0.73 | |
| 160M1-8 | 4 | 10.3 | 720 | 81.0 | |
| 160M2-8 | 5.5 | 13.6 | 83.0 | 0.74 | |
| 160L-8 | 7.5 | 17.8 | 85.5 | 0.75 | |
| 180L-8 | 11 | 25.5 | 87.5 | ||
| 200L-8 | 15 | 34.1 | 730 | 88.0 | 0.76 |
| 225S-8 | 18.5 | 41.1 | 740 | 90.0 | |
| 225M-8 | 22 | 47.4 | 90.5 | 0.78 | |
| 250M-8 | 30 | 63.4 | 91.0 | 0.79 | |
| 280S-8 | 37 | 77.8 | 91.5 | ||
| 280M-8 | 45 | 94.1 | 92.0 | ||
