Zhengzhou Hangyu Explosion-proof Motor Co., Ltd.: Zhengzhou, Henan, China; Main products: Flameproof Vibration Motor, Explosion-proof threephase Asychronous Motor, Centrifugal Sand pump, Pump spare parts

Home > Products > Flameproof three-phase Asychronous motor > 160L-4 15kw Explosion-proof Electric Motors 50HZ 60HZ 70HZ YB2 , YB3 , YBX3 , YBX4 ,Flameproof Three Phase Asynchronous Motor

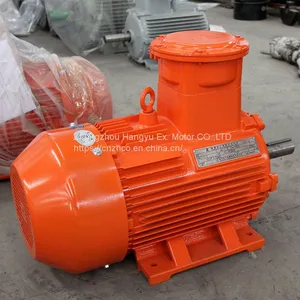

160L-4 15kw Explosion-proof Electric Motors 50HZ 60HZ 70HZ YB2 , YB3 , YBX3 , YBX4 ,Flameproof Three Phase Asynchronous Motor

FOB Price

US$ 1 - 2000 / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

You May Like

Product Details

Brand Name	Zhenghang		Place of Origin	China
Model Number	YBX4-160L-4		Type	Asynchronous Motor
Output Power	1.1KW ~90KW		Frequency	50HZ / 60HZ / 70HZ
Efficiency	IE 2		AC Voltage	Other, 380V~660V
Certification	Other, CCC, CE, ROHS, UL, VDE, IEC		Phase	Three-phase
Protect Feature	Explosion-proof

Product Description

Y2 -160L-4 15kw 380/660V YB2 , YB3 , YBX3 , YBX4 ,Flameproof Three Phase Asynchronous Motor

Frame size	Output (Kw)	Current (A)	Speed (r/min)	Efficiency (%)	Power factor (cosφ)
Synchronous speed 3000r/min
100L-2	3	6.2	2870	84.6	0.87
112M-2	4	8.0	2890	85.8	0.88
132S1-2	5.5	10.9	2900	87.0	0.88
132S2-2	7.5	14.5	2900	88.1	0.89
160M1-2	11	21.0	2940	89.4	0.89
160M2-2	15	28.4	2940	90.3	0.89
160L-2	18.5	34.7	2940	90.9	0.89
180M-2	22	41.1	2950	91.3	0.89
200L1-2	30	55.7	2950	92.0	0.89
200L2-2	37	68.3	2950	92.5	0.89
225M-2	45	82.7	2960	92.9	0.89
250M-2	55	100.7	2970	93.2	0.89
280S-2	75	136.5	2970	93.8	0.89
280M-2	90	163.3	2970	94.1	0.89
Synchronous speed 1500r/min
100L1-4	2.2	4.9	1420	84.3	0.81
100L2-4	3	6.5	1420	85.5	0.82
112M-4	4	8.7	1430	85.6	0.82
132S-4	5.5	11.6	1450	87.7	0.82
132M-4	7.5	15.5	1450	88.7	0.83
160M-4	11	21.9	1460	89.8	0.85
160L-4	15	29.3	1460	90.6	0.86
180M-4	18.5	35.8	1470	91.2
180L-4	22	42.4	1470	91.6
200L-4	30	57.4	1470	92.3
225S-4	37	70.5	1480	92.7
225M-4	45	85.4	1480	93.1
250M-4	55	103.9	1480	93.5
280S-4	75	137.8	1480	94.0	0.88
280M-4	90	164.9	1480	94.2	0.88
Synchronous speed 1000r/min
100L-6	1.5	3.9	930	79.8	0.74
112M-6	2.2	5.5	940	81.8	0.74
132S-6	3	7.4	970	83.3	0.74
132M1-6	4	9.7		84.6	0.74
132M2-6	5.5	13.0		86.0	0.75
160M-6	7.5	16.8		87.2	0.78
160L-6	11	23.9		88.7	0.79
180L-6	15	31.4	980	89.7	0.81
200L1-6	18.5	38.4		90.4	0.81
200L2-6	22	44.8		90.9	0.82
225M-6	30	61.4		91.7	0.81
250M-6	37	72.6		92.2	0.84
280S-6	45	85.8	990	92.7	0.86
280M-6	55	104.4	990	93.1	0.86
Synchronous speed 750r/min
100L1-8	0.75	2.4	690	70.0	0.67
100L2-8	1.1	3.4	690	72.0	0.69
112M-8	1.5	4.4	690	74.0	0.70
132S-8	2.2	6.0	710	79.0	0.71
132M-8	3	7.8	710	80.0	0.73
160M1-8	4	10.3	720	81.0	0.73
160M2-8	5.5	13.6		83.0	0.74
160L-8	7.5	17.8		85.5	0.75
180L-8	11	25.5		87.5	0.75
200L-8	15	34.1	730	88.0	0.76
225S-8	18.5	41.1	740	90.0	0.76
225M-8	22	47.4		90.5	0.78
250M-8	30	63.4		91.0	0.79
280S-8	37	77.8		91.5
280M-8	45	94.1		92.0
