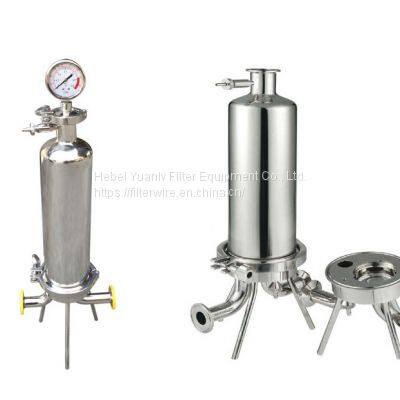

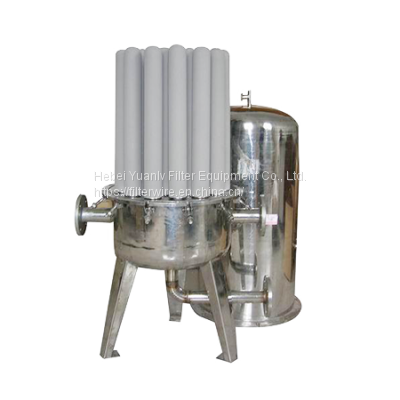

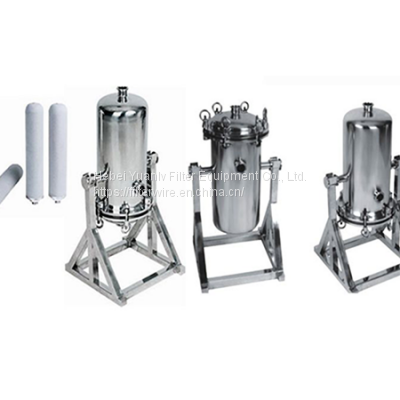

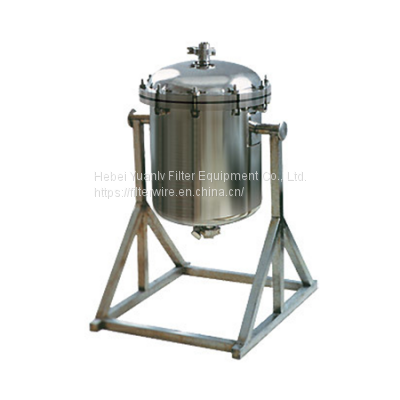

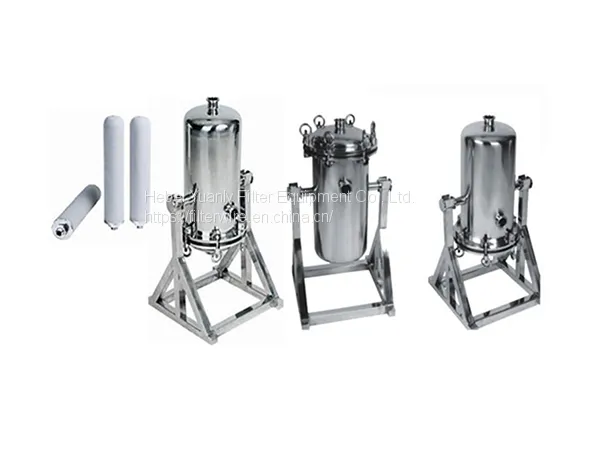

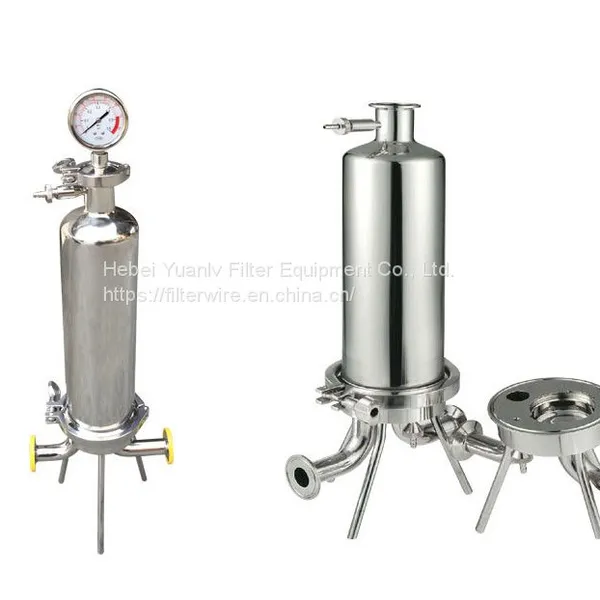

Cartridge Filter Housing
- 1000 Square Meter / Square Meters per Month
- tianjin
- T/T L/C D/P D/A PayPal Other
- 5 micro pp filter cartridge for pre filter
- Vacuum Pump Exhaust Filter 71064773 for Leybold SV300 SV630
- Vacuum Pump Oil Mist Filter 71421180 for Leybold SV40B SV40BI
- R5 RA0100F Vacuum Pump Exhaust Filter 0532140157 Oil Mist Separator
- washable air filters
- Air Breather HY-GLQL-001 for India Power Plant
Product Details
Place of Origin: | China | After-sales Service Provided: | Engineers available to service machinery overseas | Condition: | New |
Medium Material: | Other, stainless steel | Filtration Grade: | Medium Filter | Construction: | Cartridge Filter |
Product Description
The Industry Cartridge Filter housing is a new type of multifunctional filter, which consists of two parts: the stainless steel filter housing and the filter element. It has been widely used in water, oil, paint, and other liquid purification and solid-liquid separation in machinery, metallurgy, chemical, textile, printing and dyeing, electroplating, medicine, food, and other industries.
The Industry Cartridge filter housing is a new type of multifunctional filter, which consists of two parts: the filter housing and the filter element. It has been widely used in water, oil, paint, and other liquid purification and solid-liquid separation in machinery, metallurgy, chemical, textile, printing and dyeing, electroplating, medicine, food and other industries.
To meet the flow and filtration requirements, YUANLV can customize cartridge filters of different sizes.
Industrial cartridge filters provide high levels of filtration for many applications
Operating pressure | <0.6MP |
Filtration accuracy | 0.45um-30um |
Flow rate | 0.15m³/h-100t/h |
Connection | flange,rings,thread |
Maximum operating temperature | ≤200℃ |
Cleaning method | 1. It is usually recommended to clean a new filter element by backwashing it with clear water or using gas blowback. The backwash pressure should be higher than the operating pressure (e.g. 0.3 MPa) and the duration of the backwash should be 1-3 minutes. 2.Filter elements could be soaked in nitric acid solution below 5% or NaOH solution below 10% at room temperature, and then washed with water if the filtration effect is not ideal after backwash. |
1.) Cartridge Filter Housing with PP filter element: PP filter element is also called PP melt blown filter element. The melt-blown filter element is made of polypropylene ultra-fine fiber thermally entangled. The fibers randomly form a three-dimensional microporous structure in space, and the dimensional pore size is distributed in a gradient along the flow direction of the filtrate. It integrates surface, deep, and fine filtration to trap impurities of different particle sizes. The accuracy range of the filter element is 0.5-100μm, and its flux is more than 1.5 times that of the peak room filter element of the same accuracy. Different types of end cap connectors can be configured to meet the needs of various engineering installations.
2). Cartridge Filter Housing with wire wound filter element: It is refined by finely winding textile fiber yarn with good filtering performance on a porous skeleton. Its yarn materials include polypropylene fiber, acrylic fiber, absorbent cotton fiber, etc. By controlling the tightness and thinness of the yarn during winding, filter elements with different precision can be made, which can effectively remove suspended solids and particulate impurities in various liquids, and have a high purification effect on various liquids. 3.) Cartridge Filter Housing with pleated filter element: The PLEATED FILTER ELEMENT is a precision filter device made of wire mesh, stainless steel 304 316 316l, etc. as the filter medium. It has the advantages of small volume, large filter area, and high precision. Filter accuracy can range from 0.1μm to 60μm. The filter element end cover sealing and the overall structure connection are all hot-melt bonding. The products have undergone strict and complete testing before leaving the factory to ensure the stable performance of the products.
4). Cartridge Filter Housing with wedge wire screen filter element: Features of STAINLESS STEEL WEDGE WIRE FILTER ELEMENT: Good filtration performance, uniform surface filtration performance for 2-200um filtration particle size; Good corrosion resistance, heat resistance, pressure resistance, and wear resistance; The stainless steel filter element has uniform and precise filtration accuracy; The flow rate per unit area of the stainless steel filter element is large; The stainless steel filter element is suitable for low-temperature and high-temperature environments; it can be used again after cleaning, no need to replace it.
