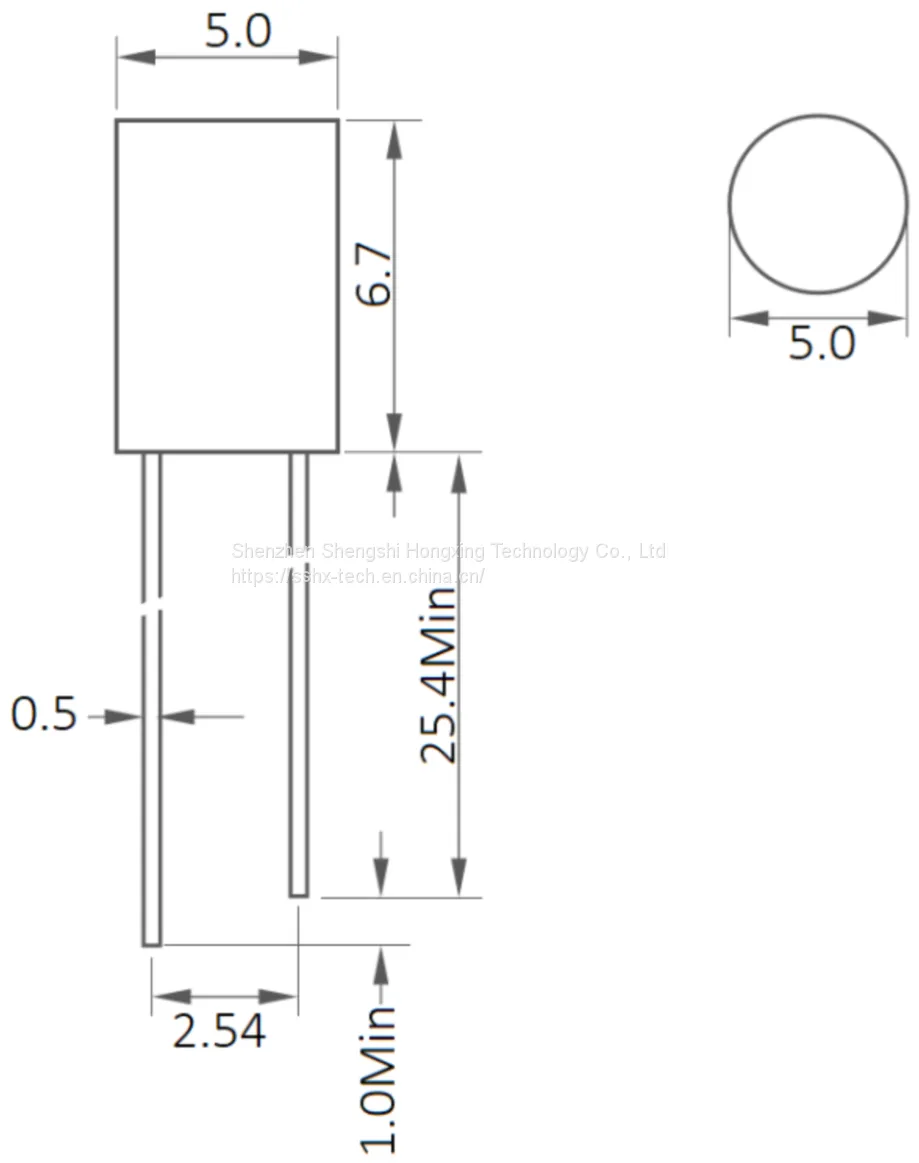

Help CenterLamp 5mm Cylindrical Colored Led
Negotiable
MOQ: 10000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
SSHX
Place of Origin:
China
Model Number:
LF5W***
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Brand Name
SSHX
Place of Origin
China
Model Number
LF5W***
Certification
ROHS
Power
Other
Storage Temperature(℃)
,
Operating Temperature(℃)
,
Emitting Color
Other, Red/Green/Blue/White/Orange
Chip Material
Other
Product Parameters
1-1 Electrical / Optical Characteristics at Ts=25°C
| Item | Symbol | Test Condition | Value | Unit | ||
| Min. | Typ. | Max. | ||||
| Luminous Intensity | IV | IF=20mA | R: 30 | — | 90 | mcd |
| Y: 100 | 300 | |||||
| B: 100 | 300 | |||||
| O: 160 | 480 | |||||
| Dominant Wavelength | λd | IF=20mA | R: 620 | — | 630 | nm |
| Y: 585 | 595 | |||||
| B: 460 | 470 | |||||
| O: 600 | 610 | |||||
| Forward Voltage | VF | IF=20mA | R: 1.7 | — | 2.4 | V |
| Y: 1.7 | 2.4 | |||||
| B: 2.6 | 3.4 | |||||
| O: 1.7 | 2.4 | |||||
| Viewing Angle | 2θ1/2 | IF=20mA | — | 80 | — | Deg |
Notes：
1. 1/10 Duty cycle, 10ms pulse width.
2. The above forward voltage measurement allowance tolerance is ±0.1V.
3. The above color coordinates measurement allowance tolerance is ±0.005.
4. The above luminous intensity measurement allowance tolerance ±10%.
