Partaker 12th Gen Mini PC Intel Core i5 1235U Processor Windows 10 VGA HD WIFI DDR4 M.2 2280 NVME Fanless Mini Desktop Computer

Inctel Technology Co.,Ltd
Partaker 12th Gen Mini PC Intel Core i5 1235U Processor Windows 10 VGA HD WIFI DDR4 M.2 2280 NVME Fanless Mini Desktop Computer thumbnail-1
Partaker 12th Gen Mini PC Intel Core i5 1235U Processor Windows 10 VGA HD WIFI DDR4 M.2 2280 NVME Fanless Mini Desktop Computer thumbnail-2
Partaker 12th Gen Mini PC Intel Core i5 1235U Processor Windows 10 VGA HD WIFI DDR4 M.2 2280 NVME Fanless Mini Desktop Computer thumbnail-3
Partaker 12th Gen Mini PC Intel Core i5 1235U Processor Windows 10 VGA HD WIFI DDR4 M.2 2280 NVME Fanless Mini Desktop Computer thumbnail-4
Partaker 12th Gen Mini PC Intel Core i5 1235U Processor Windows 10 VGA HD WIFI DDR4 M.2 2280 NVME Fanless Mini Desktop Computer thumbnail-5
Partaker 12th Gen Mini PC Intel Core i5 1235U Processor Windows 10 VGA HD WIFI DDR4 M.2 2280 NVME Fanless Mini Desktop Computer photo-1
Partaker 12th Gen Mini PC Intel Core i5 1235U Processor Windows 10 VGA HD WIFI DDR4 M.2 2280 NVME Fanless Mini Desktop Computer photo-2
Partaker 12th Gen Mini PC Intel Core i5 1235U Processor Windows 10 VGA HD WIFI DDR4 M.2 2280 NVME Fanless Mini Desktop Computer photo-3
Partaker 12th Gen Mini PC Intel Core i5 1235U Processor Windows 10 VGA HD WIFI DDR4 M.2 2280 NVME Fanless Mini Desktop Computer photo-4
Partaker 12th Gen Mini PC Intel Core i5 1235U Processor Windows 10 VGA HD WIFI DDR4 M.2 2280 NVME Fanless Mini Desktop Computer photo-5
US$ 250 - 300 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Partaker
Place of Origin:
China
Model Number:
B16
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
3 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Partaker
Place of Origin China
Model Number B16
Type Barebone System
Products Status Stock
Processor Brand Intel
Processor Main Frequency 3.30 GHz

Processor has 3 options suitable for the same motherboard:


1. Kaby Lake R 14nm CPU Intel Core i5 8250U 4 cores 8 threads 1.6Ghz Max to 3.4Ghz 6MB cache TDP 15W Intel UHD Graphic 620.



2. Whiskey Lake 14nm CPU Intel Core i3 8145U 2 cores 4 threads 2.1Ghz Max to 3.9Ghz 4MB cache TDP 15W Intel UHD Graphic.



3. Alder Lake CPU Intel Core i5 1235U 10 cores 12 threads 3.3Ghz Max to 4.4Ghz 12MB cache TDP 15W Intel Iris Xe Graphics Eligible.




Suitable for various industries

As the computer is equipped with i5 12th gen processor, supports max 64GB DDR4 RAM and has two M2 ports for solid state driver, it is a high performance computer among mini PCs.

It can be applied to business office, meeting room, home entertainment, educations...

For its mini size, it is convenient to arrange on different occasions.

Intel Core i5-1235U Processor

Equipped with Intel Core i5-1235U Mini PC, 10 cores and 12 threads, 3.30 GHz, up to 4.40 GHz, Windows 10 Pro pre-installed, can handle multiple tasks in same time, games, office, design, web, Power can be switched freely.



Intel 4K Iris Xe Graphics eligible

Support 4K HD display output, enjoy the reality of life and bring shocking visual effects



Dual-band wifi support wireless network

There are two external antennas to enhance the signal. Built-in 150M / 300M Wi-Fi module, ensure the stability and smoothness of the network.



Compact design

The mini computer size is 6.69*8.07*1.77in, it is very convenient to put on the desk and will not take too much space. Whether you are traveling or on business, you can easily deal with work matters



Multi-function ports

Mini pc is very suitable for daily needs. It can be connected to various devices such as TVs, printers, projectors, etc.



Low power consumption, Fanless design, zero noise

Adopting all aluminum alloy shell, design of heat dissipation holes on both sides, fast heat dissipation to ensure the normal operation of the computer, zero noise brings a comfortable experience



About this item

  • CPU: Intel 12th Generation i5-1235U 10 Cores 12 Threads; Efficient-core Max Turbo Frequency: 3.30GHz; Max Turbo Frequency: 4.40GHz, 12MB Cache;


  • 2*DDR4 2133MHz RAM, 1*mSATA SSD+1*M.2 SSD+1*2.5 inch SSD; Intel 300M Dual Band 2.4/5GHz Wireless Card


  • Intel Iris Xe Graphics eligible, 4K: 4096x2304@24Hz HD Port; Graphics Max Dynamic Frequency: 1.20GHz


  • Smart Design, Fanless, Metal Case, 1xLAN, 1xHD Port, 1xVGA, 4xUSB 3.0, 4xUSB 2.0, Audio in/output


  • What in Box: Mini PC, Power Adapter, Power Cable, Desktop Bracket Mount, Wi-Fi Antennas, Screws,





Kindly be Advised:


1, The CPU Model is intel i5 12th Generation Processor:

1235U: 10 Cores, 12 Threads; Efficient-core Max Turbo Frequency: 3.30GHz, Max Turbo Frequency: 4.4GHz, 12MB Smart Cache, Integrated Intel Iris Xe Graphics;

Features: intel i5 12th Generation CPU, Fanless, Smart Design, Zero Noise, Full Metal Case.

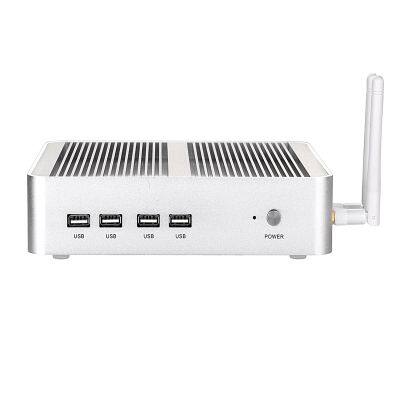

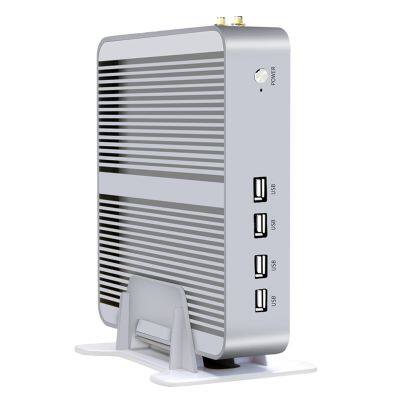

Front-Panel Connectors:
1xPower Switch Button;
1xPower LEDs;
4xUSB 2.0 ports

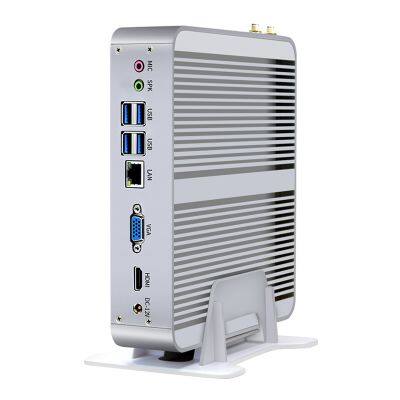

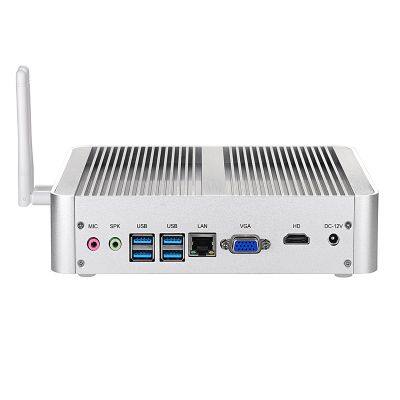

Back-Panel Connectors:
1x12V DC input
1xHD Port
1xVGA port
1xGigabit LAN port
4xUSB 3.0
2xAudio in/out Connectors

Motherboard:
RAM: 2x so-dimm DDR4 Slots
PCIE: 2xMini PCIE interfaces:
full height one for mSATA solid state hard drive.
Half height one for Mini PCIE wireless card.
1x Mini PCIE for NGFF 2280 M.2 SSD
1xSATA for 2.5 inch drive
Network Card: Onboard RTL 8111DL 10/100/1000 BaseT LAN;
Wireless: 300M 2.4/5GHz 802.11.b/g/n with Dual Antenna
Sound card: ALC892 chip, providing 6-channel sound

What in Box:
1x Mini PC
1xPower Adapter
1xPower Cable with US plug
1xDesktop Bracket
2xWi-Fi Antennas
1x Set SATA power and data cables ( for 2.5'' drive)
1xHD cable
Some screws.




Product Tags: 12th gen mini pc , fanless mini pc i5 , mini pc without fan
