20~200w Explosion Proof Led Lighting Solar Led Flood Lights Outdoor Die-casting Aluminum Veet Saa Atex Ip68 Rechargeable Led Work Lights

20~200w Explosion Proof Led Lighting Solar Led Flood Lights Outdoor Die-casting Aluminum Veet Saa Atex Ip68 Rechargeable Led Work Lights thumbnail-1
20~200w Explosion Proof Led Lighting Solar Led Flood Lights Outdoor Die-casting Aluminum Veet Saa Atex Ip68 Rechargeable Led Work Lights thumbnail-2
20~200w Explosion Proof Led Lighting Solar Led Flood Lights Outdoor Die-casting Aluminum Veet Saa Atex Ip68 Rechargeable Led Work Lights thumbnail-3
20~200w Explosion Proof Led Lighting Solar Led Flood Lights Outdoor Die-casting Aluminum Veet Saa Atex Ip68 Rechargeable Led Work Lights thumbnail-4
20~200w Explosion Proof Led Lighting Solar Led Flood Lights Outdoor Die-casting Aluminum Veet Saa Atex Ip68 Rechargeable Led Work Lights thumbnail-5
20~200w Explosion Proof Led Lighting Solar Led Flood Lights Outdoor Die-casting Aluminum Veet Saa Atex Ip68 Rechargeable Led Work Lights photo-1
20~200w Explosion Proof Led Lighting Solar Led Flood Lights Outdoor Die-casting Aluminum Veet Saa Atex Ip68 Rechargeable Led Work Lights photo-2
20~200w Explosion Proof Led Lighting Solar Led Flood Lights Outdoor Die-casting Aluminum Veet Saa Atex Ip68 Rechargeable Led Work Lights photo-3
20~200w Explosion Proof Led Lighting Solar Led Flood Lights Outdoor Die-casting Aluminum Veet Saa Atex Ip68 Rechargeable Led Work Lights photo-4
20~200w Explosion Proof Led Lighting Solar Led Flood Lights Outdoor Die-casting Aluminum Veet Saa Atex Ip68 Rechargeable Led Work Lights photo-5
US$ 64.86 - 228.6 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
CESP
Place of Origin:
China
Model Number:
CES-EX-J
Contact Supplier Request Quote Chat Now
Shenzhen CESP., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Dongguan, Guangdong
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CESP
Place of Origin China
Model Number CES-EX-J
Certification CCC, CE, SAA, UL
Light Source Fluorescent
Base Type MR11
Lamp Body Material Aluminum Alloy
IP Rating IP68
Color Temperature(CCT) Warm White
Working Temperature(℃) ,

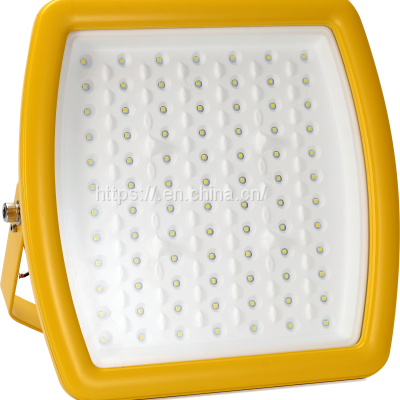

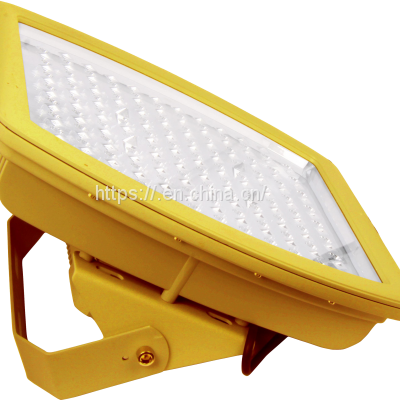

Explosion proof LED Flood Light for Zone 1 Zone 21 Hazardous Areas

Power:20W/30W/40W/60W/80W/100W/120W/150W/180W/200W

Model No. CES-J Series (ATEX / IECEx)

Compared with traditional hazardous area light fixture, this LED explosion-proof LED floodlight is more than 50,000 hours lifespan, and the maintenance is reduced to 30% of the double input cost of the traditional lighting system. At the same time, the device is equipped with a well-designed optical system, high luminous efficiency and various beam angle options. ADC12 die-cast aluminum, 8mm tempered glass has better shock and vibration resistance. There are a variety of installation methods for your different projects. UL1598A North American marine anti-corrosion for marine application. Can be used in hazardous areas Zone 1&21, Zone 2&22.


Applications:

• Wastewater treatment，oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, tunnels, outdoor wall and stanchion mounted general area lighting, and where flammable vapors, gases, ignitable dusts, fibers or flyings are present.
• Applies to hazardous locations of Zone 1 and Zone2 with explosive gas atmosphere.
• Applies to hazardous locations of Zone 21 and Zone22 with explosive dust atmosphere.

ATEX: EN 60079-0: 2013 ; EN 60079-7: 2015 ; EN 60079-18: 2015 ; EN 60079-28: 2015 ; EN 60079-31：2014;



Warning：

  • “WARNING – DO NOT OPEN WHEN ENERGIZED”

  • “WARNING – DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT”

  • “WARNING – ONLY USE CABLES SUITABLE FOR 85°C”

  • End user shall use certified cable gland or conduit with suitable type of protection for final installation purpose.

  • External earthing wire shall be connected when used and the cross-sectional areashall be more than 4mm2 or 10AWG.

  • Under rating condition, maximum temperature on the luminaire’s shell shall not be higher than 95℃ for T4.Temperature at cable inlet shall not be higher than allowable limit of the cable applied, to ensure the cable operation normally.

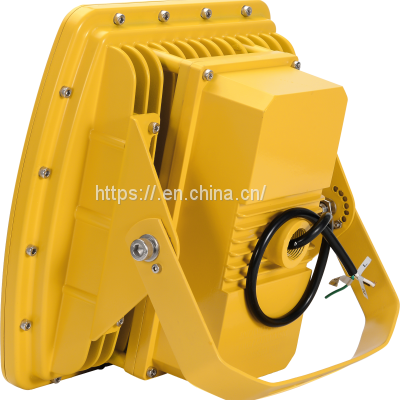

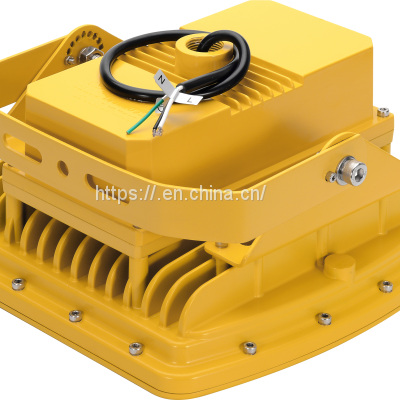

Mounting:

Fix 2 M10 screws on the wall according to the distance between the holes of the bracket. Install the bracket on the screws and then fasten it with the nut. Fix the position of the lamp Place the lamp cord into the pole; connect the wire to local power supply (AC100-277V).


explosion proof floodlight installation

explosion proof floodlight M25 entry size

Product Tags: explosion proof flood light with ATEX certified , explosion proof light
