Power:10W/20W/30W
Model No. CES-SC Series (UL844)

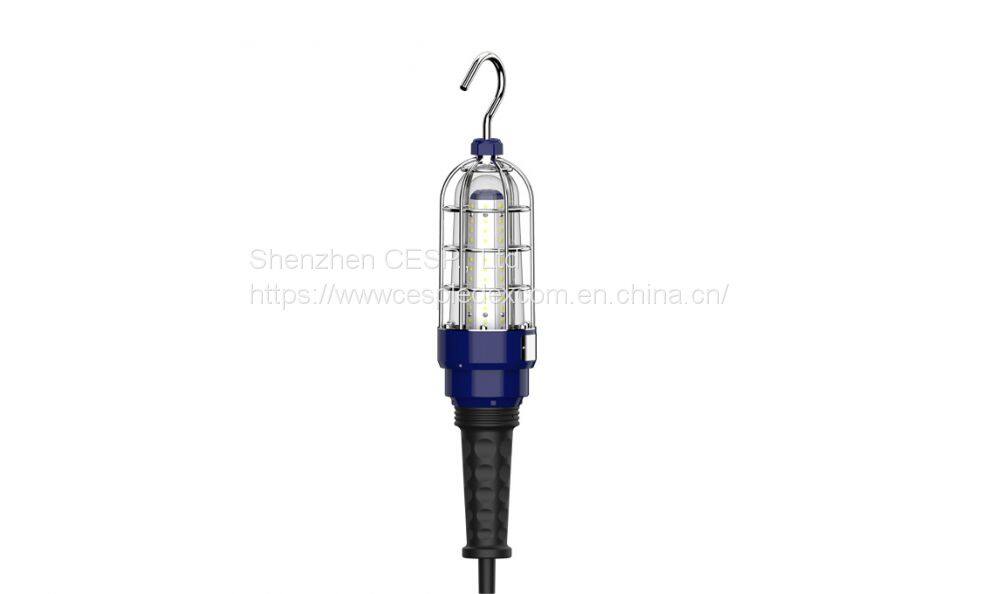

CES-SC LED explosion proof hand lamp ( explosion-proof drop lights ) can be used for powerful and accurate work lighting in hazardous location, beam angle 180° or 360°, adopt to LM80 certified chips, 30 Watt explosion-proof LED hand lamp can produce 3900 lumen flux, meet to your inspection jobs，suitable for Class I, Division 1, Groups B, C and D, Class II, Division 1, Groups E, F and G, Class I, Division 2, Groups A, B, C and D, Class II, Division 2, Groups F and G, used in Class III hazardous location.

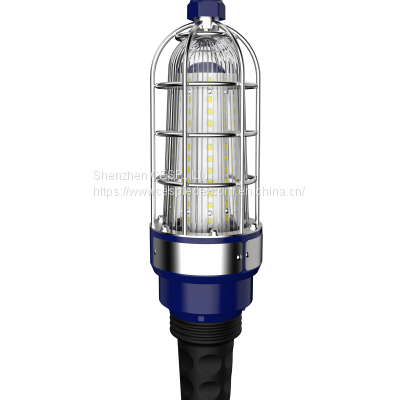

The lamp body of the explosion proof LED work light is made of ADC12 aluminum alloy +10mm high-strength tempered glass, equipped with low-carbon steel protection grille, WF2 The anti-corrosion grade, IP66 protetion grade, and it can withstand 7J pressure. . It is very durable, corrosion-resistant and anti-vibration and impact resistance. The temperature of LED lamps is much lower than that of incandescent or fluorescent lamps, which can eliminate accidental burns often encountered by incandescent lamps.
The CES-SC explosion-proof hand lamp is designed for use in hazardous environments where the presence of flammable gases, vapors, or dust particles may pose a risk of explosion.
Hazardous Location Class 1 Division 1 Explosion Proof Hand Lamp / Drop Light / Work Light Applications: Wastewater treatment, oil and gas refineries, drilling rigs, petrochemical facilities, food and...
Certificate & Standard
Have certified CES-SC fixtures with the North American UL844 standards for hazardous location and environments.
NEC/CEC:Class I, Division 2, Groups A, B, C and D
Class II, Division 1, Groups E, F and G
Class I, Division 2, Groups A, B, C and D
Class II, Division 2, Groups F and G
Class III
T-Class: T6 / T80°C
Damp and wet locations
Paint spray rated
Certificate No：E475887
US: UL 844; UL 153;
Canada: CSA C22.2 No. 137; CSA C22.2 No.250.4
