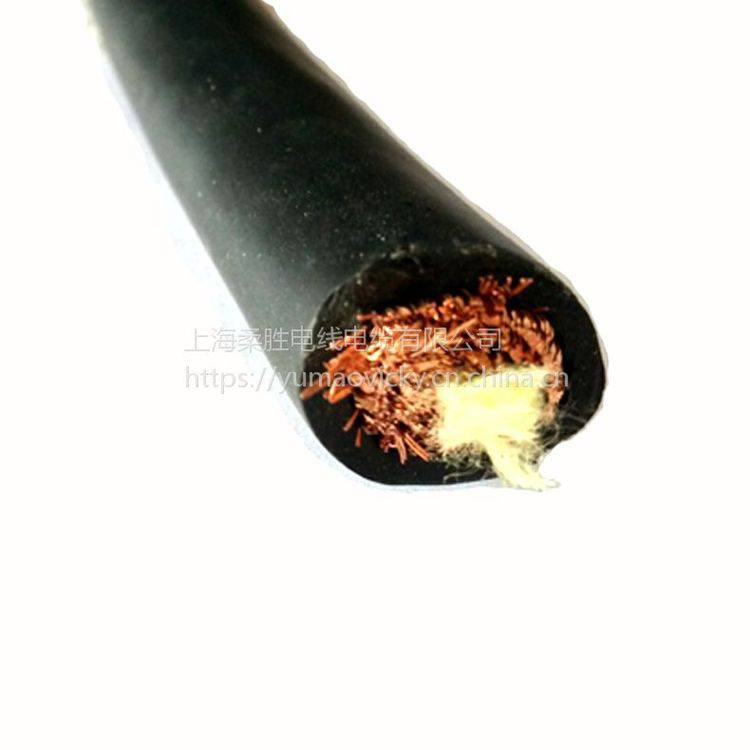

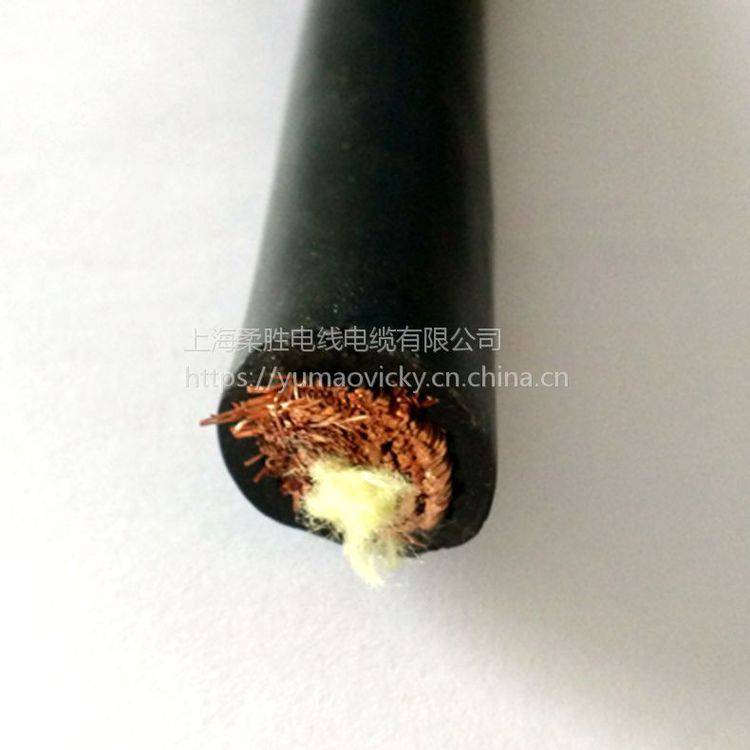

Single core waterproof wire 4/6/8/10/12/14/16/18 square anti-lar cable
Single core waterproof wire Description:
Single-core waterproof wire commonly used wire cross-sectional area of 0.14 square ~300 square, according to the structural form of the divided, there are shielded and unshielded and single-layer sheath, two-layer sheath and multi-layer sheath structure, etc., tensile for imported Kevlar bulletproof wire, can provide tensile capacity for the cable. The deeper the use of the environment, the higher the waterproof level of the cable, but in addition to dealing with the impact of the depth of water, the use of the environment on the waterproof level of the cable also put forward different requirements, such as the general environment, the cable requirements are not high, but the strong acid and alkali environment, the waterproof level of the cable is relatively high.
Single core waterproof wire structure
1. Conductor: multi-strand ultra-fine stranded oxygen-free copper wire, in line with VDE02956 class standard.
2. Insulation: Ding Qing mixed elastic material, TPE mixture, PUR (according to customer
3. Color: ≤0.5mm Color: brown, black, blue, red, purple, white, orange; > 0.5mm Color: black number white code number, more than 3 cores with yellow and green ground cable (yellow is optional)
4. Sheath: Ding Qing mixed elastic material, TPE mixture, PUR or PVC (according to customer)
Color: Black, gray, orange
Rated voltage: section ≤0.5mm2; 300/300V, > 0.5mm; 300/500V
Test voltage: 2500V
Operating temperature range:
Fixed installation: -30 to +90℃
Mobile installation: -20 to +85 ° C
Small bending radius: fixed installation 5×D(cable diameter); Mobile installation: when the travel is less than 10 meters, the bending radius is 8×D; When the stroke is ≥10 meters, the bending radius is 10×D
Single core waterproof wire custom description:
Shanghai Rooseng cable can customize various types and specifications of special purpose wire and cable according to customer requirements, customers provide samples or design drawings, our company can process according to the drawing and sample, and inform the user in a timely manner, for the need to optimize our company will communicate and negotiate with the user in a timely manner, if not processed will inform the user and return the sample. Technical support, Mr. Gong, tel: 13482197396, Q2939591145, WEIXIN13482197396.
Single core waterproof wire 4/6/8/10/12/14/16/18 square anti-lar cable
