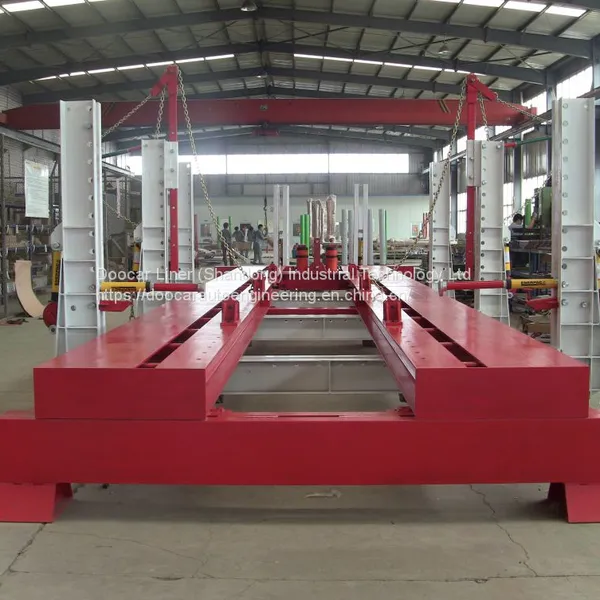

Truck framd and chassis straightening machine DSG series - Popular Truck, bus, and trailer heavy duty frame and chassis repair system
Heavy duty frame straightening equipment features:
1. Straightening system with heavy duty pulling tower 20 Ton - 40 Ton
2. Damaged chassis anchored to the pulling towers, straightened rapidly and precisely
3. Standard pulling tower can pull 3.48 meter above the runway, high pulling tower extension enables to pull 4.3 m high
4. Pulling towers can be pulled and positioned in 3 directions of lengthways, widthways, diagonally
5. Front axle repair system 200 Tons optional
6. One electric-hydraulic pump for multiple pulling tower control
7. The bench length available up to 18 meter due to different numbers of modules assembly
8. Each module length is 5.85 meter, container shipping is suitable
9. Also acts as cab straightening repair system
10. Pit installation or not available
11. Straightening repair machine for truck, bus, tractor, trailer heavy duty vehicles

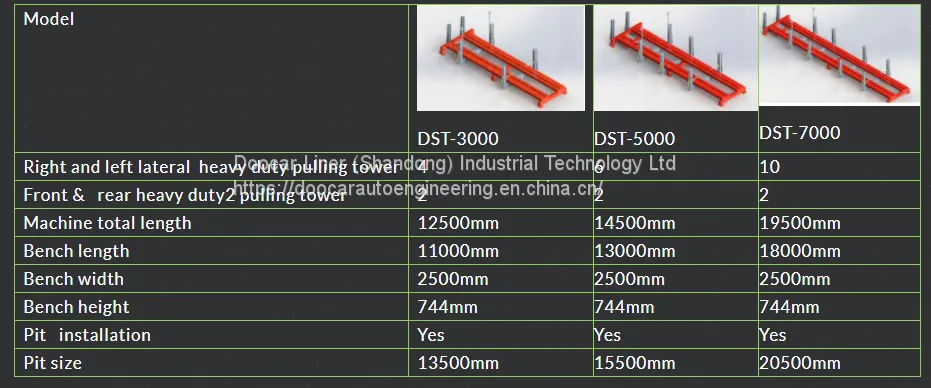

Truck frame and chassis straightening machineSpecification
Heavy vehicle chassis can be corrected and repaired as fast as it was damaged!
Correction of damaged chassis of trucks or other heavy vehicles with heavy duty pulling towers:
The standard pulling tower can straighten the vehicle body to a height of about 3.48 meters. If it is matched
with a high tower, the height can reach 4.30 meters. It is very convenient to repair tractors, buses, and trucks.
DOOCARPower simplifies the lateral anchoring of the chassis and allows straightening without moving the vehicle.
With the world's leading Enerpac hydraulic pumps, the bench equipment can quickly and accurately correct the vehicle chassis according to the factory data.
Heavy duty pulling chains make it easier and safer to straighten damaged parts of vehicles.
