Product Description

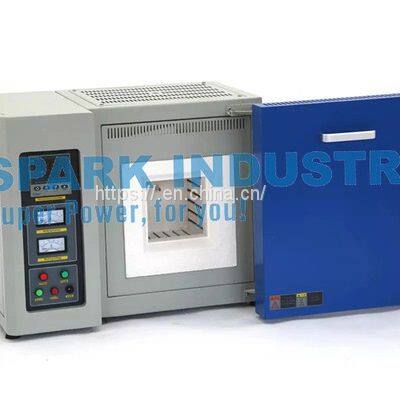

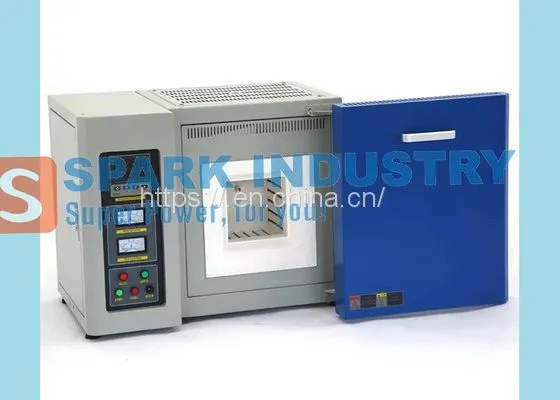

Muffle furnace is commonly used equipment in laboratory.Adopting new heat preservation material and unique operating system, it has the characteristics of accurate temperature control, simple operation, high efficiency and energy saving.Suitable for coal, chemical industry, metallurgy, building materials, geology, scientific research institutions, industrial and mining enterprises and institutions of higher learning and other units laboratory sintering, heating, metal annealing, quality testing,the rmochemical analysis and heat treatment.
Features
1. Integrated furnace design
2. High quality polycrystalline mullite furnace effective energy saving more than 60%
3. Double shell structure safe heat insulation
4. Select high-quality materials for strict production
5. Reasonable safety design
Specifications
| Chamber vs usable size (DxWxH) | 7 x 6 x 6" (0.15 cubic foot) / 5 x 5 x 5.5" |
| Max. working temperature | 1800°C (3272°F) for less than 5 hours |
| Refractory lining | High quality grade 1900 fiber alumina |
| Heating element | Grade 1900 Molybdenum Silicide (MoSi2), 6 installed |
| Thermocouple type | B or PtRh40-PtRh20 (optional) |
| Min. working temperature | 300°C (572°F) |
| Max. constant working temperature | 1700°C (3092°F) or 1750°C with PtRh40-PtRh20 (optional) |
| Temperature controller | Shimaden fp93 with 4 programs and 40 segments (ie. 4 x 10 segments or 2 x 20 segments) Eurotherm temperature controller (optional) |
| Max heating / cooling rate | 1200°C and below: <30°C/min, 1200°C+: <15°C/min |
| Temperature accuracy | +/- 1°C |
| Input | 208-240v AC, 50/60Hz, single phase |
| Maximum output | 4.5 kW |
| Unit/shipping dimensions (WxDxH) | 24 x 22 x 34" / 30 x 29 x 42" |
| Shipping weight | 300 Lb |
| CE compliance | Yes |
