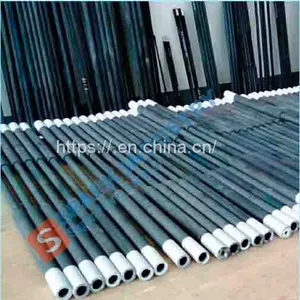

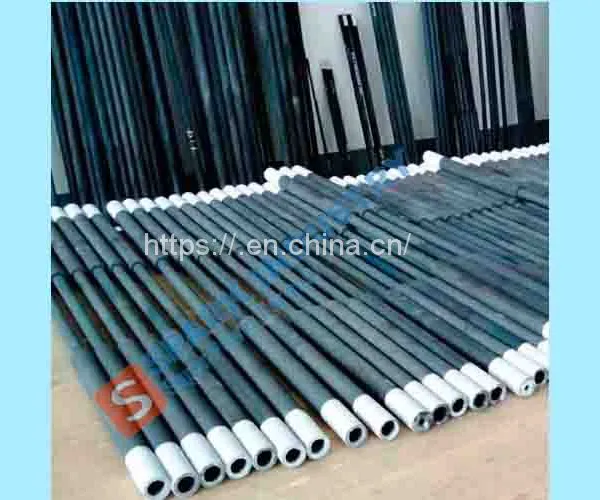

DB ( Dumbbell ) Type Silicon Carbide Heating Element
Silicon carbide (SiC) Heating Element is a kind of non-metal rod or tube shape high temperature electric heating element.It is made of selected super purity green hexagonal silicon carbide as main material, which is made into blank and silicon crystal under high temperature of 2400ºC. In oxidizing atmosphere, its service temperature can reach 1450°C and continuous use life can reach 2000 hours.
Physical property of SIC heating element
specific gravity |
2.6g/cm³~2.8g/cm³ |
bend strength |
>300kg |
hardness |
>9MOH’S |
tensile strength |
>150kg/cm³ |
porosity rate |
radiance |
0.85 |

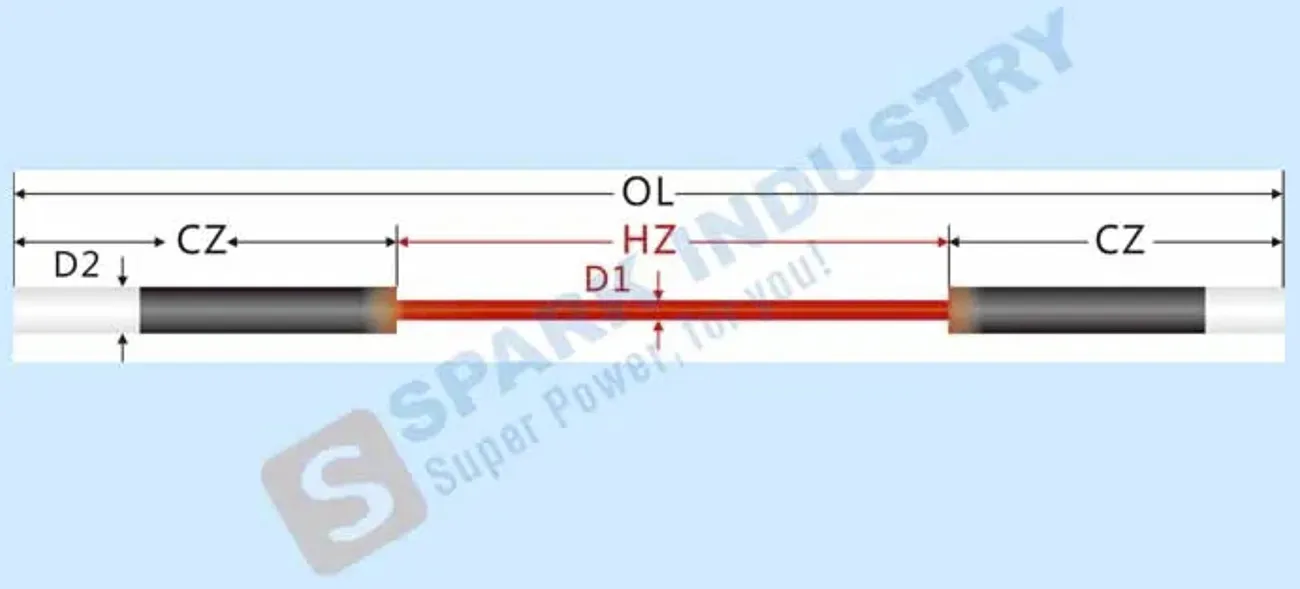

Following should be provided when inquiring or ordering DB (Dumbbell) Silicon Carbide Heating Elements:
Type: DB
Outer Diameters: of the Hot Zone (D1) and of the Cold Zone (D2), mm
Length: of the Heating Section or the Hot Zone, HZ, mm
Length: of the Cold Zone, CZ, mm
Overall Length: OL, mm
Example: Type DB, D1/ D2=18/28mm, HZ=300mm, CZ=350mm, OL=1000mm, Resistance 1.70Ω
Specified as:
SPK DB18/28/300/350/1.70Ω
