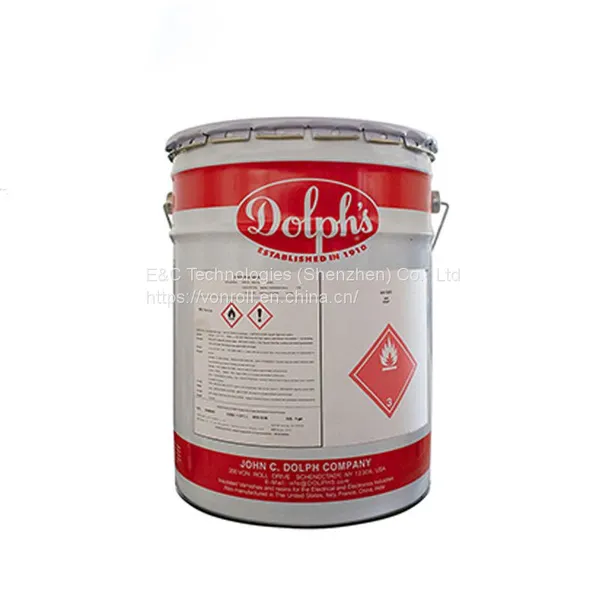

AQUA-THERM BC-365 Water Soluble Modified Polyester Varnish
US$ 5 - 10
MOQ: 20 Kilograms
Key Specifications
Get Latest Price
Brand Name:
Dolph's
Place of Origin:
China
Model Number:
AQUA-THERM BC-365
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Damisol® 3500 LoV Epoxy Impregnation Resin Freon Resistant Varnish Without SolventUS$ 8 - 12MOQ: 20 Kilograms -
HI-THERM BB-346/A Black Baking VarnishNegotiableMOQ: 20 Kilograms
-
SYNTHITE AC-46 CLEAR AIR DRYING VARNISHNegotiableMOQ: 1 Barrel
-
Damisol® 3042 /700 Continuous Impregnating Process of All Kinds of Windings, Especially Rotor and Stator Coils of MachinesNegotiableMOQ: 300 Kilograms
-
HI-THERM BB-346-A Black Impregnating VarnishUS$ 140 - 200MOQ: 17 Kilograms
Brand Name
Dolph's
Place of Origin
China
Model Number
AQUA-THERM BC-365
State
Liquid Coating
Usage
Electrical Insulating Varnish
Main Raw Material
Other, polyester
Application Method
Other
AQUA-THERM® BC-365 WATER VARNISH
PRODUCT DESCRIPTION
AQUA-THERM BC-365 is a water soluble modified polyester varnish. This environmentally friendly
varnish was especially developed for its excellent stability.
FEATURES & BENEFITS
• Excellent moisture resistance
• Excellent adhesion and flexibility
• Good bond strength
• Excellent stability
• Fast cure cycle
• Flash point over 200°F
• UL recognition on MW-35 wire, ASTM D-3251 Twisted
Pairs-Class 180°C, Helical Coil-Class 200°C. UL
Systems to 220°C
APPLICATION
The following cycle is suggested as a starting point in the treatment of most units and should
be considered as a guide only.
1. Preheat part to 220°F.
2. Cool to 110°F.
3. Immerse in varnish 5-20 minutes.
4. Drain for 5-20 minutes.
5. Bake *4-6 hours @ 275°F, or *2-4 hours @ 300°F, or *1-3 hours @ 325°F.
*Times are taken after unit reaches baking temperature.
THINNING AND VARNISH MAINTENANCE
For best results, BC-365 should be thinned before use with normal tap water. A recommended starting point is 35% solids.
Thinning with one part water to one part varnish will produce approximately 35% solids. After thinning, the pH should be
checked with a pH meter. If necessary, the pH should then be adjusted to 9-10 with DOLPH’S VM-3008 pH adjuster. If
the pH of local tap water is low, DOLPH’S T-362 Thinner may be used for thinning
