Alloy Steel Pipe Fittings Concertrice Reducer 3X4inch Sch40 ANSI B 16.9 Butt Weld Pipe Fitting

Alloy Steel Pipe Fittings Concertrice Reducer 3X4inch Sch40 ANSI B 16.9 Butt Weld Pipe Fitting thumbnail-1
Alloy Steel Pipe Fittings Concertrice Reducer 3X4inch Sch40 ANSI B 16.9 Butt Weld Pipe Fitting thumbnail-2
Alloy Steel Pipe Fittings Concertrice Reducer 3X4inch Sch40 ANSI B 16.9 Butt Weld Pipe Fitting thumbnail-3
Alloy Steel Pipe Fittings Concertrice Reducer 3X4inch Sch40 ANSI B 16.9 Butt Weld Pipe Fitting thumbnail-4
Alloy Steel Pipe Fittings Concertrice Reducer 3X4inch Sch40 ANSI B 16.9 Butt Weld Pipe Fitting thumbnail-5
Alloy Steel Pipe Fittings Concertrice Reducer 3X4inch Sch40 ANSI B 16.9 Butt Weld Pipe Fitting photo-1
Alloy Steel Pipe Fittings Concertrice Reducer 3X4inch Sch40 ANSI B 16.9 Butt Weld Pipe Fitting photo-2
Alloy Steel Pipe Fittings Concertrice Reducer 3X4inch Sch40 ANSI B 16.9 Butt Weld Pipe Fitting photo-3
Alloy Steel Pipe Fittings Concertrice Reducer 3X4inch Sch40 ANSI B 16.9 Butt Weld Pipe Fitting photo-4
Alloy Steel Pipe Fittings Concertrice Reducer 3X4inch Sch40 ANSI B 16.9 Butt Weld Pipe Fitting photo-5
US$ 1 - 100 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
CH
Place of Origin:
China
Model Number:
R1
Contact Supplier Request Quote Chat Now
Hainan Huatong Xinda Trade Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port
Delivery Detail:
9 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CH
Place of Origin China
Model Number R1

Product Description
l

Reducer Type Seamless reducer; Welded reducer;
Concentric reducer; Eccentric reducer;
butt welding reducer; forged reducer;
forging reducer; welding reducer;
Size OD. 1/2'' ~ 48''(Seamless); 16'' ~96''(welded); DN15-DN1200
WTK. Sch10SCH20,SCH30,STD,SCH40,SCH60,XS,SCH80,SCH100,SCH120,SCH140,SCH160, XXS
Standard ASME B16.9-2007
ANSI/ASME B16.11
ASME B16.25-2007
ASME B16.5-2007
EN10253-1-1999 EN10253-2-2007 EN10253-3-2008 EN10253-4-2008
DIN2605-1-1992 DIN2605-2-1995
JIS B2311-2009 JIS B2312-2009 JIS B2313-2009
GB/T12459-2005 GB/T13401-2005 GB/T10752-2005
SH/T3408-1996 SH/T3409-1996
SY/T0609-2006 SY/T0518-2002 SY/T0510-1998
DL/T695-1999 GD2000 GD87-1101
HG/T21635-1987 HG/T21631-1990 ,
MSS SP-43, MSS SP-95, MSS SP-75, MSS SP-79;
ISO 3419,ISO 5251,DIN 2616
Material Carbon  steel ASTM A234 WPB,
ASTM A420 WPL6, WPL3;
ASTM A105 WPB;
ASTM A106;
ASTM A350 LF2,
DIN St37, St45.8, St52.4,St.35.8,St.35.8
ASTM A333 GR.6,
ASTM A860 WPHY 70, WPHY 65, WPHY 60, WPHY 52,WPHY 46,WPHY 42,
API 5L GRB, X60, X65, X42,X52,
Stainless steel ASTM A403 WP304, A403 WP304L, A403 WP316, A403 WP316L, A403 WP321
ASTM A182 F 304, 304L,316, 316L,904L
Alloy steel ASTM A234 WP12, A234 WP11, A234 WP22, A234 WP5, A234 WP9
A420 WPL8, A420 WPL9
ASTM A335 P5, P9, P11, P12, P22, P91
ASTM A213
ASTM A182 F5,F11,F22,F91
Surface Black painting, varnish paint, anti rust oil, hot galvanized, cold galvanized, 3PE, etc.
Manufacturing process Push, Press, Forge, Cast, etc.
Connection welding
Technical  Welded, forged
MOQ 10  pieces
Packing Wooden cases, pallets, nylon bags or according to the customers' requirements
Delivery time 7-35 days after your advance payment
Payment terms L/C, T/T, D/A, etc.
Shipment FOB Tianjin, CIF, CFR, etc
Remarks Other materials and drawings are available.
Capacity 1000000tons/year
Advantages 1. Reasonable price with excellent quality
2. Abundant stock and prompt delivery
3. Rich supply and export experience, sincere service
4. Reliable forwarder, 2-hour away from port.
Main clients  Turkey, Italy, France, Spain, South Africa, Mexico, Dubai, Iran, Syria, Singapore, Vietnam, Austria, USA, Canada, Mexico, Korea, Thailand, India, Bulgaria, Russia and so on

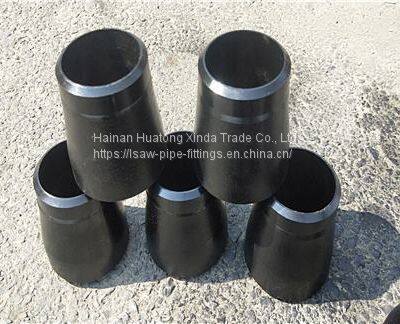

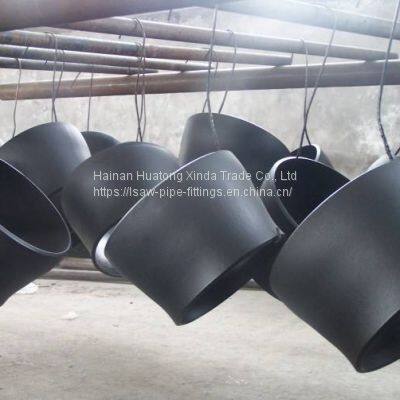

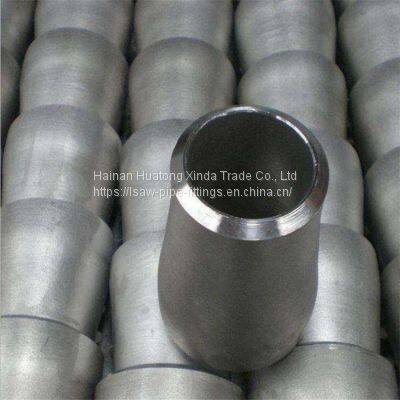

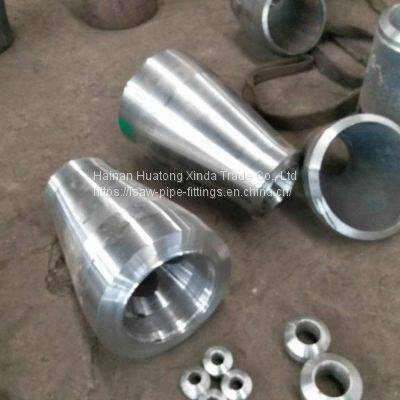

Concentric Reducer:

Dimension (mm)

Nominal Diameter Outside Diameter End to End
D1*D2
DN NPS Series A Series B H
20×15 3/4×1/2 26.9×21.3 25×18 38
20×10 3/4×3/8 26.9×17.3 25×14 38
25×20 1×3/4 33.7×26.9 32×25 51
25×15 1×1/2 33.7×21.3 32×18 51
32×25 1.1/4×1 42.4×33.7 38×32 51
32×20 1.1/4×3/4 42.4×26.9 38×25 51
32×15 1.1/4×1/2 42.4×21.3 38×18 51
40×32 1.1/2×1.1/4 48.3×42.4 45×38 64
40×25 1.1/2×1 48.3×33.7 45×32 64
40×20 1.1/2×3/4 48.3×26.9 45×25 64
40×15 1.1/2×1/2 48.3×21.3 45×18 64
50×40 2×1.1/2 60.3×48.3 57×45 76
50×32 2×1.1/4 60.3×42.4 57×38 76
50×25 2×1 60.3×33.7 57×32 76
50×20 2×3/4 60.3×26.9 57×25 76
65×50 2.1/2×2 73.0×60.3 76×57 89
65×40 2.1/2×1.1/2 73.0×48.3 76×45 89
65×32 2.1/2×1.1/4 73.0×42.4 76×38 89
65×25 2.1/2×1 73.0×33.7 76×32 89
80×65 3×2.1/2 88.9×73.0 89×76 89
80×50 3×2 88.9×60.3 89×57 89
80×40 3×1.1/2 88.9×48.3 89×45 89


 Eccentric Reducer:


Dimension (mm)

Nominal Diameter Outside Diameter End to End
D1*D2
DN NPS Series A Series B H
20×15 3/4×1/2 26.9×21.3 25×18 38
20×10 3/4×3/8 26.9×17.3 25×14 38
25×20 1×3/4 33.7×26.9 32×25 51
25×15 1×1/2 33.7×21.3 32×18 51
32×25 1.1/4×1 42.4×33.7 38×32 51
32×20 1.1/4×3/4 42.4×26.9 38×25 51
32×15 1.1/4×1/2 42.4×21.3 38×18 51
40×32 1.1/2×1.1/4 48.3×42.4 45×38 64
40×25 1.1/2×1 48.3×33.7 45×32 64
40×20 1.1/2×3/4 48.3×26.9 45×25 64
40×15 1.1/2×1/2 48.3×21.3 45×18 64
50×40 2×1.1/2 60.3×48.3 57×45 76
50×32 2×1.1/4 60.3×42.4 57×38 76
50×25 2×1 60.3×33.7 57×32 76
50×20 2×3/4 60.3×26.9 57×25 76
65×50 2.1/2×2 73.0×60.3 76×57 89
65×40 2.1/2×1.1/2 73.0×48.3 76×45 89
65×32 2.1/2×1.1/4 73.0×42.4 76×38 89
65×25 2.1/2×1 73.0×33.7 76×32 89
80×65 3×2.1/2 88.9×73.0 89×76 89
80×50 3×2 88.9×60.3 89×57 89
80×40 3×1.1/2 88.9×48.3 89×45 89
80×32 3×1.1/4 88.9×42.4 89×38 89
90×80 3.1/2×3 101.6×88.9 - 102
90×65 3.1/2×2.1/2 101.6×73.0 - 102
90×50 3.1/2×2 101.6×60.3 - 102
90×40 3.1/2×1.1/2 101.6×48.3 - 102
90×32 3.1/2×1.1/4 101.6×42.4 - 102
100×90 4×3.1/2 114.3×101.6 - 102
100×80 4×3 114.3×88.9 108×89 102
100×65 4×2.1/2 114.3×73.0 108×76 102
100×50 4×2 114.3×60.3 108×57 102
100×40 4×1.1/2 114.3×48.3 108×45 102
