Three Beams Photoelectric Frequency Detector ABE-250

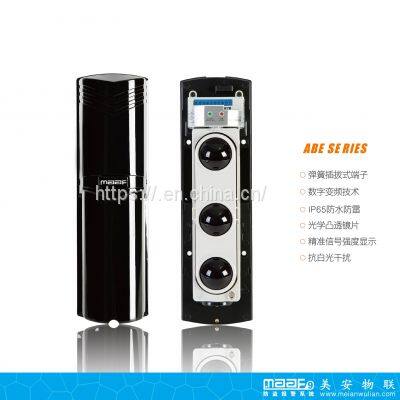

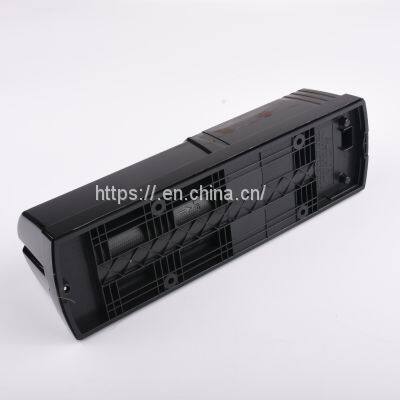

Three Beams Photoelectric Frequency Detector ABE-250 photo-1
Three Beams Photoelectric Frequency Detector ABE-250 photo-2
Three Beams Photoelectric Frequency Detector ABE-250 photo-3
Three Beams Photoelectric Frequency Detector ABE-250 photo-4
Three Beams Photoelectric Frequency Detector ABE-250 photo-5
Negotiable MOQ: 1 Pair (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
ABE-250
Usage:
Other, wall
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin China
Model Number ABE-250
Usage Other, wall

intelligence triplicate-beam frequency conversion active intrusion detector

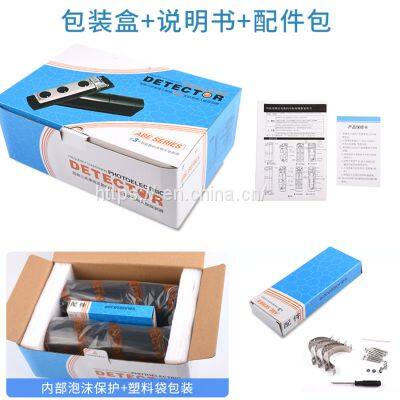

White Box: 29.5*20*10.5cm/ 1200g/ Pair

PCS/CARTON: 16PCS
GW/CARTON: 20KG
CARTON SIZE: 61*41.5*44.5 CM


Detailed Features
 1. Instruction Photo Beam Sensor With The Display adopt super power military transmitting tube,can guarantee transmitting distance and service life.
2. Adjustable Sensitivity Instruction Photo Beam Sensor With The Display adopt 4 channel frequency adjustment can avoid mutual interference when install crossed or face to face.
3. Digital tube display, the signal strength is more intuitive and convenient.
4. Adjustable Sensitivity Instruction Photo Beam Sensor With The Display Adopt aspherical lens which required high manufacturing process, thereby increasing the degree of aggregation of infrared light emission, which make the infrared emission distance guaranteed.
5. Microprocessor control circuit, signal is more stable compared with competitor's logic circuit,strong anti false alarm ability.
6. The industry's most advanced digital filtering technology, with better accuracy and higher stability compared with traditional analog rate
7. Waterproof design,can be used indoor and outdoor
8. Beam interruption time adjustable according to environment,reduce false alarm;
9. "C" type relay is compatible with various alarm panel;
10. Built-in tamper switch,case remove alarm,can prevent criminals destroy detector;
11. DC 10-24V Powered Adjustable Sensitivity Instruction Photo Beam Sensor With The Display Range Sensor:50/100/100/150/200M optional


 Technical specifications:

Specifications for Sensor Beam
Model                            ABE-50 ABE-100 ABE-150 ABE-200
Outdoor Alert Distance 50m 100m 150m 200m
Beam 3 beams
Working  Voltage DC 10-24V
Working Current 90mA max
Application areas Outdoor/Indoor
Feature 4 channel frequency adjusted
Interruption Time 50ms,100ms,250ms,500ms(optional)
Detection way Simultaneous interruption of 3 infrared beams
Alarm Period 2s,50ms(optional)
Alarm Output Relay output NC/NO optional:AC/DC 30V 0.2A max
Tamper Switch NC,opens when cover is removed
Contact Capacity AC/DC 30V 0.2A max
Waterproof Grade IP55
Operating temperature -25°C~+55°C
Certificate CE certificated
Case Material PC
Dimensions 295*200*105mm
