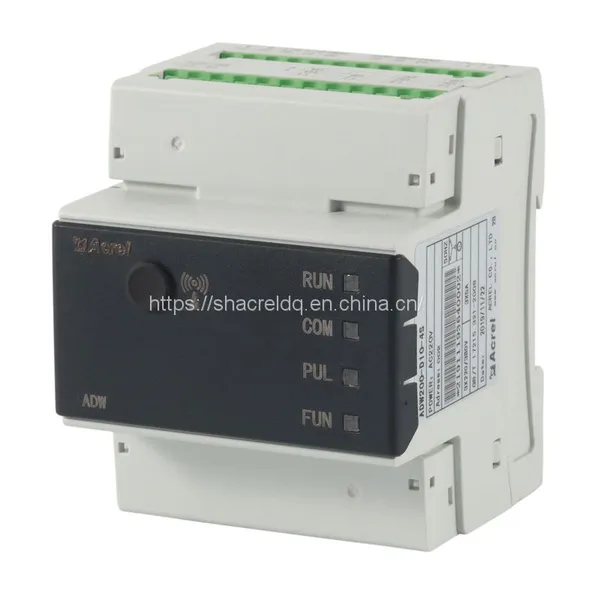

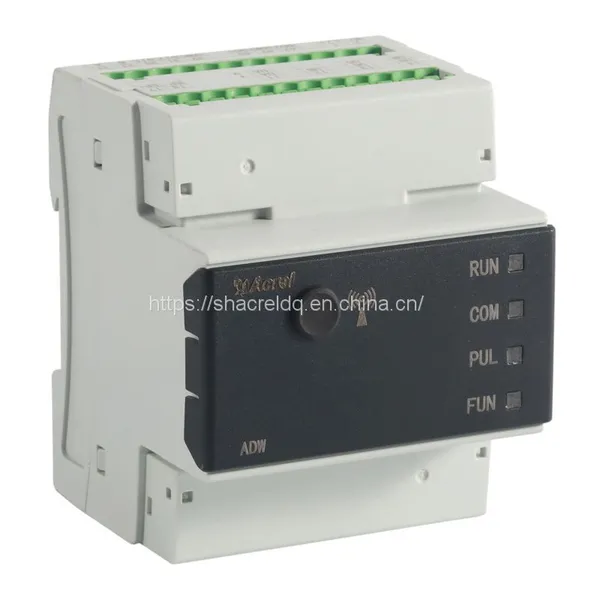

ADW200-D10 IoT Multi Channel Power Meter Four Channels Externals Current Transformers AC 380V RS485 Modbus Aperture10mm 45 65Hz

ADW200-D10 IoT Multi Channel Power Meter Four Channels Externals Current Transformers AC 380V RS485 Modbus Aperture10mm 45 65Hz thumbnail-1
ADW200-D10 IoT Multi Channel Power Meter Four Channels Externals Current Transformers AC 380V RS485 Modbus Aperture10mm 45 65Hz thumbnail-2
ADW200-D10 IoT Multi Channel Power Meter Four Channels Externals Current Transformers AC 380V RS485 Modbus Aperture10mm 45 65Hz thumbnail-3
ADW200-D10 IoT Multi Channel Power Meter Four Channels Externals Current Transformers AC 380V RS485 Modbus Aperture10mm 45 65Hz thumbnail-4
ADW200-D10 IoT Multi Channel Power Meter Four Channels Externals Current Transformers AC 380V RS485 Modbus Aperture10mm 45 65Hz thumbnail-5
ADW200-D10 IoT Multi Channel Power Meter Four Channels Externals Current Transformers AC 380V RS485 Modbus Aperture10mm 45 65Hz photo-1
ADW200-D10 IoT Multi Channel Power Meter Four Channels Externals Current Transformers AC 380V RS485 Modbus Aperture10mm 45 65Hz photo-2
ADW200-D10 IoT Multi Channel Power Meter Four Channels Externals Current Transformers AC 380V RS485 Modbus Aperture10mm 45 65Hz photo-3
ADW200-D10 IoT Multi Channel Power Meter Four Channels Externals Current Transformers AC 380V RS485 Modbus Aperture10mm 45 65Hz photo-4
ADW200-D10 IoT Multi Channel Power Meter Four Channels Externals Current Transformers AC 380V RS485 Modbus Aperture10mm 45 65Hz photo-5
US$ 193 - 393 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Acrel
Place of Origin:
China
Model Number:
ADW200 D10 4S
Contact Supplier Request Quote Chat Now
Acrel Electric Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Acrel
Place of Origin China
Model Number ADW200 D10 4S
Phase Three Phase
Output Voltage 220/380V
Operating Temperature -25℃~55℃
Dimensions 87.8*72*97.7mm
Display Type Analog and Digital
Accuracy Class 1
Measuring Energy Range 0-999999.99 kWh

ADW200 Series Multi-loop Power Meter

        ADW200 series multi-loop power meter is mainly used for the measurement of all electric parameters of three-phase circuit. Colleagues can select the current input of the maximum four circuits. ADW2XX series products are connected by split core current transformer, easy to install on site, and realize remote wireless communication through wireless communication module.

Specification



Multi-circuits Monitoring
● Monitor up to 4×3-phase circuits in total
● Paired CTs with specs of 5A/1.25mA; 100A/20mA; 400A/100mA or 600A/100mA
● External CTs Connect with ADW210 Main Body through RJ12 Interface


Expanded Communication Module --- AWT100
● 4G (Global general module)
● WiFi
● LoRaWAN
● LoRa
● NB-IoT
Cable Temperature&Residual Current Measurement Module --- MTL
● Temperature Measurement:-20℃~+100℃
● Residual Current Measurement:10~3000 mA
● Accuracy：Temperature：± 2℃; Residual Current：1% (Class 1)
DO/DI Switch Extra Function Module --- MK
● 12 channel DI (Digital Input)
● 4 channel DO (Digital Output)
Technical Parameter
Technical Parameter
Auxiliary power
AC/DC 85～265V;consumption≤10VA;
Input
Frequency
45～65Hz;
Voltage
AC 3×220V/380V;
Overload: 1.2 times of rated value (continuous); 2 times of rated value / 1s;
Power consumption:≤ 0.5VA;
Current
AC 5A、100A、400A、600A;(External opening transformer)
Overload: 1.2 times of rated value (continuous); 10 times of rated value / 1s;
Power consumption:≤ 0.5VA;
Measurement accuracy
Frequency 0.05Hz, voltage and current 0.5 level, active electric energy level 1, reactive electric energy level 2;
2-31 times harmonic accuracy: ± 1%;
Features
Pulse output
Output mode: optocoupler pulse with open collector;
Communication
RS485、Modbus-RTU;Baud rate 1200～38400;
Switching
input
Dry contact input、Built in power supply;
output
Output mode: Relay normally open contact output;
contact rating: AC 250V/3A DC 30V/3A;
Switching Module
Power
RJ45 interface、DC 12V、Power consumption≤1W;
Communication
RJ45 interface、Modbus-RTU;(Communication with the main Part)
Switching input
Dry contact input、Built in power supply;
Switching output
Output mode:Relay normally open contact output;
contact rating:AC 250V/3A DC 30V/3A;
Temperature and
leakage module
Power
RJ45 interface、DC 12V、Power consumption≤1W
Communication
RJ45 interface、Modbus-RTU;(Communication with the main Part)
Temperature measurement
-20～100℃;
Leakage measurement
10～3000mA;
Measurement accuracy
temperature ±2℃、Leakage1.0%;
Safety
Power frequency withstand voltage
>AC 2kV/1min;
Insulation resistance
>100MΩ;
Environment
Working temperature: -20℃～+60℃;
Storage temperature: -40℃～+70℃;
Relative humidity: ≤95% No condensation;
Altitude: ≤2500m;
Electromagnetic compatibility
Better than grade 3;
Dimension & Installation
 Dimension
Main part dimension(L×W×H): 87.8*72*71.5mm
35mm Din rail installation; Tolerance: ±1mm
Module dimension(L×W×H): 87.8*36*71.5mm
35mm Din rail installation; Tolerance: ±1mm

 Installation

Typical Networking Connection



Product Tags: IoT energy meter , din rail energy meter , rs485 communication 3 phase din rail energy meter
