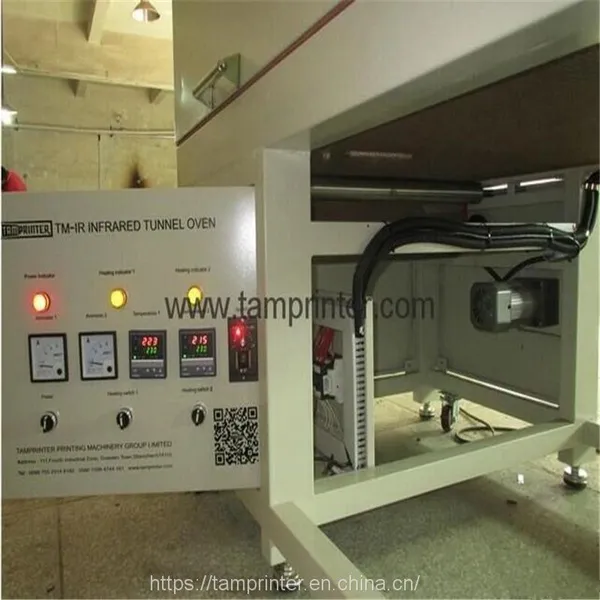

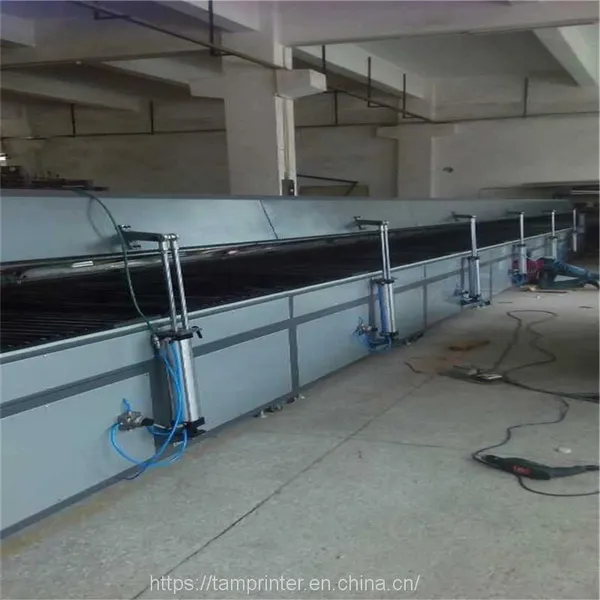

IR Curing Dryer Machine With Stainless Mesh Transmission Belt
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Tamprinter
Model Number:
TM-IR1200
After-sales Service Provided:
Overseas third-party support available
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Industrial Customized Textile Infrared Drying Tunnel OvenNegotiableMOQ: 1 Piece -
IR Curing Dryer Machine With Stainless Mesh Transmission BeltNegotiableMOQ: 1 Piece
-
Conveyor Printing Drying MachineNegotiableMOQ: 1 Piece
-
5m Industrial High Efficient IR Drying MachineNegotiableMOQ: 1 Piece
-
Large IR Tunnel Drying Oven for Screen Printing IndustryNegotiableMOQ: 1 Piece
Brand Name
Tamprinter
Model Number
TM-IR1200
After-sales Service Provided
Overseas third-party support available
Condition
New
Product Description
TM-IR-6645 IR Curing Dryer Machine with Stainless Mesh Transmission Belt
Technical Parameter

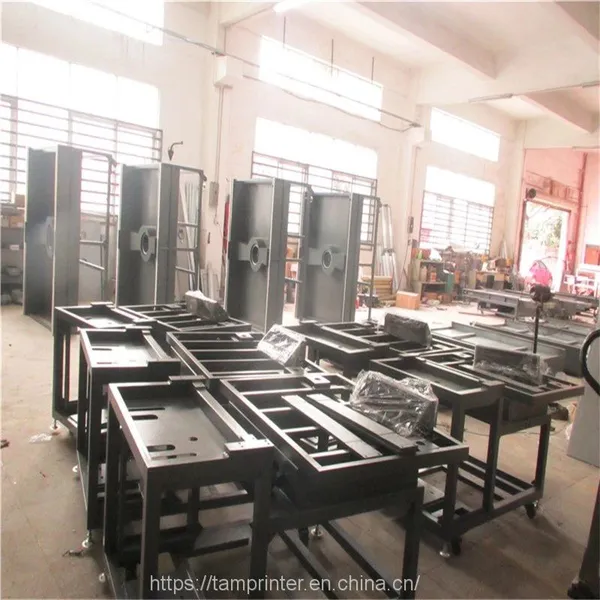

Manufacturing process
Application
This drying oven is suitable for the material and product hot solidification and dry de-watering in the pharmaceutical, chemical, food, farming,side-product,aquatic product,light industries,heavy industries and others industries.Such as: raw material medicine,crude drug,Chinese medicine herbs, extract,powder,particle,Potions,pill,packingbottle,pigment,dyestuff,dehydrated vegetables,dried fruit piece,sausage,plastic sresin,electric components,baking varnish and etc.
Description
Hot air circulating drying oven is made by a low noise anti-high temperature axial flow fan and automatic control temperature system.
The whole circulation system is fully enclosed to make that the heat efficiency of the drying oven increase from 3-7% of the traditional drying oven to 35-45% of the present one. The highest heat efficiency can reach to 50%.
Features and advantages
1.Options of heat source: steam, electricity, or far infrared, or both steam electricity.
2.Drying temperature: steam heating 50-130 degree , Max.140 degree .
3.Electricity and far infrared:50-300degree. Automatic control system and computer control system on request.
4.Commonsteam pressure 0.2-0.8Mpa(2-8 bar).
5.For CT-C-I, electric heated, rated power consumption:15Kw, real consumption : 5-8Kw.
6.For operation temperature of over 140 or less than 60, please indicate when order.
7.The ovens and baking trays made by our factory are uniform in dimensions, and can be exchanged each other.
Customers visiting
Please contact us without hesitation!
Technical Parameter
| Parameter | Power/Specification | Remarks |
| Dryer Length | 6.6 Meter | |
| Dryer Width | 1.45 Meter | |
| Belt Width | 1.2 Meter | |
| Belt Type | Teflon Belt | |
| In-feed | 0.75 Meter | |
| Out-feed | 1.05 Meter | 4 cooling fans on exit |
| Total Oven | 2 Pcs | |
| Total Oven Length | 4.8 Meter | |
| Each Oven Length | 2.4 Meter | 11 Tubes/ Oven |
| Total Tubes | 22 Pcs | |
| Tube Type | Ceramic | |
| Tube Power | 1300 W each | |
| Working Power | 3 Phase- 380V/50Hz | |
| Belt Motor Power | 90W- 5IK90RGU-CF | Brand- OTG/VTV- 220V/50Hz AC |
| Contactor | 90 Amp- 2 Sets | Brand- Chint/Delixi |
| Temp Range | 0- 250 Degree C | |
| Temp Tolerance | +/- 5 Degree C |
Manufacturing process
Application
This drying oven is suitable for the material and product hot solidification and dry de-watering in the pharmaceutical, chemical, food, farming,side-product,aquatic product,light industries,heavy industries and others industries.Such as: raw material medicine,crude drug,Chinese medicine herbs, extract,powder,particle,Potions,pill,packingbottle,pigment,dyestuff,dehydrated vegetables,dried fruit piece,sausage,plastic sresin,electric components,baking varnish and etc.
Description
Hot air circulating drying oven is made by a low noise anti-high temperature axial flow fan and automatic control temperature system.
The whole circulation system is fully enclosed to make that the heat efficiency of the drying oven increase from 3-7% of the traditional drying oven to 35-45% of the present one. The highest heat efficiency can reach to 50%.
Features and advantages
1.Options of heat source: steam, electricity, or far infrared, or both steam electricity.
2.Drying temperature: steam heating 50-130 degree , Max.140 degree .
3.Electricity and far infrared:50-300degree. Automatic control system and computer control system on request.
4.Commonsteam pressure 0.2-0.8Mpa(2-8 bar).
5.For CT-C-I, electric heated, rated power consumption:15Kw, real consumption : 5-8Kw.
6.For operation temperature of over 140 or less than 60, please indicate when order.
7.The ovens and baking trays made by our factory are uniform in dimensions, and can be exchanged each other.
Customers visiting
Please contact us without hesitation!
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
2013
Overseas Office
Yes
Factory Size
5,000-10,000 square meters
