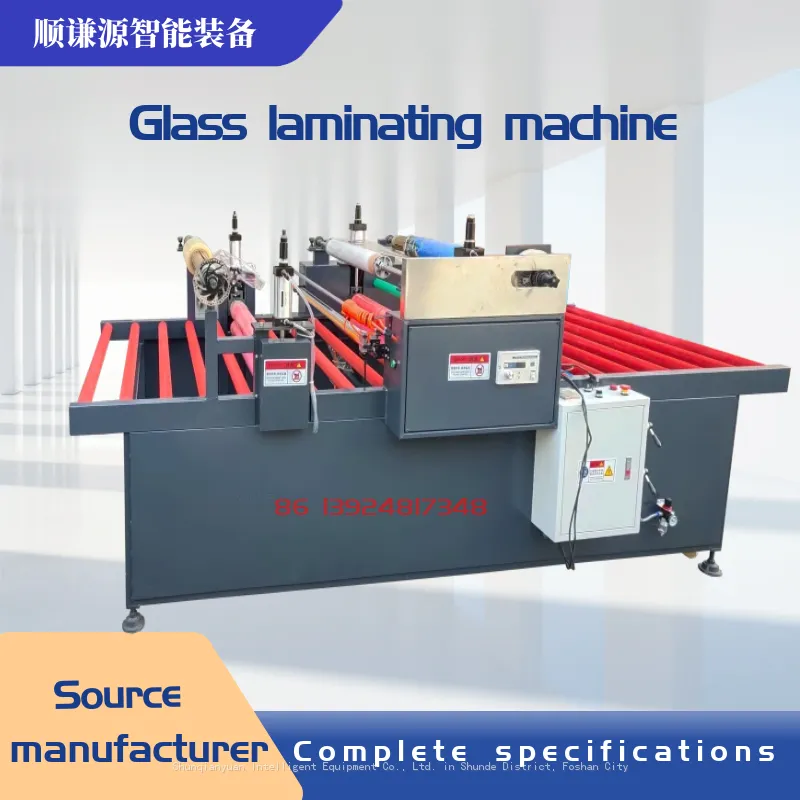

Glass coating equipment

Main performance characteristics of the laminating machine:

1. Use a rubber roller with moderate hardness, with even pressing force;

2. The roller table is not easy to scratch the product

3. Using a governor for speed regulation;

4. There is a forward and backward function, which can ensure that the product is backed out when needed;

5. The pressure is automatically adjusted, and the thickness of the lamination product can be adjusted.

6. Equipped with foot switches that are convenient for operators to use.

7. Full body steel frame structure

8. Cylinder lifting and pressure regulation

Model: 1300B

Working voltage: 220V

Working pressure: 0.6-0.8mpa

Overall power: 1.3KW

Film width: within 1220mm

Film height: 2-30, mm adjustable (other thicknesses can be customized), optional automatic alignment: optional

Inching/linkage: supports optional installation

Machine size: 1400 * 1900 * 1300mm

Machine size: 2600 * 1900 * 1300

Sales market: China (all provinces have distributors), International (Europe, America, Southeast Asia)

WeChat/WhatsAPP 86 13924817348

We will do our best to provide you with high-quality products and perfect after-sales service!
