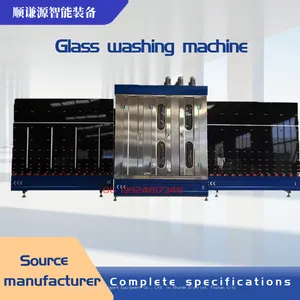

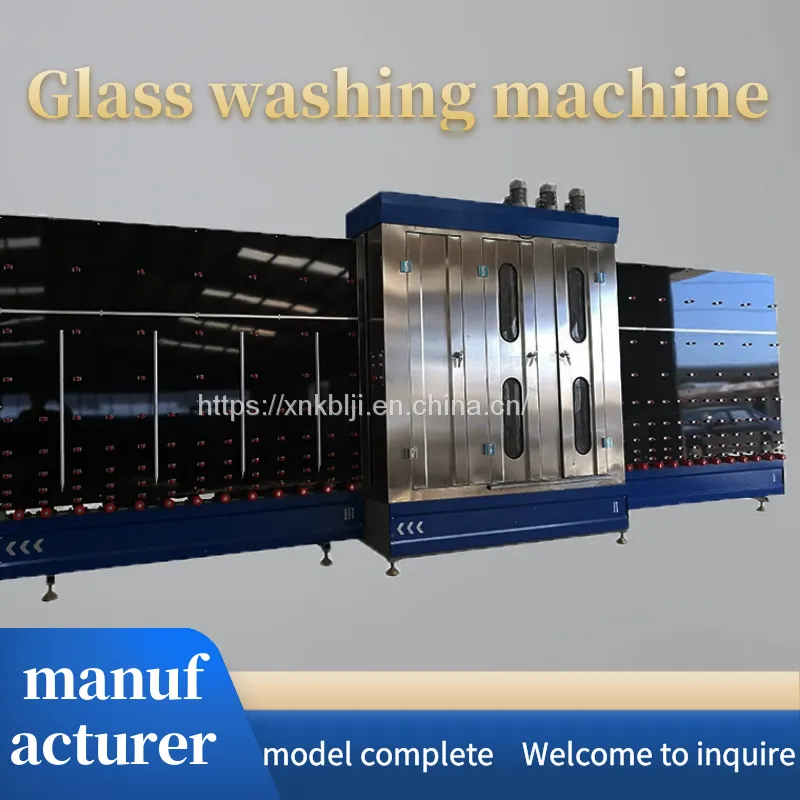

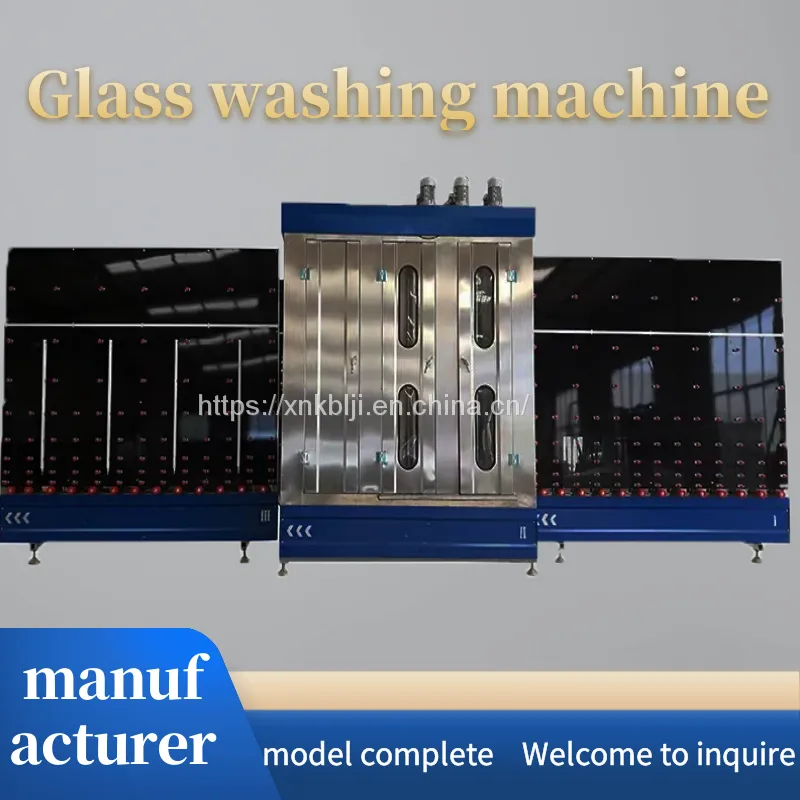

Vertical glass cleaning machine
- 10 Set / Sets per Month
- guangzhou
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 10 days
- Glass beveling machine edging machine small piece glass beveling machine background wall mosaic lighting crystal triangular beveling machine
- Vertical glass drilling machine/automatic glass drilling machine
- Horizontal glass cleaning machine
- Belt grinding machine/Glass Edging Machine
- Glass Loading Table automatic glass loading table
- CNC glass drilling machine
Product Details
After-sales Service Provided: | Engineers available to service machinery overseas | Warranty: | 1 | Condition: | New |
Product Description
This machine adopts world leading Italian technology:
1. All sheet metal in contact with water in the cleaning department is made of stainless steel material. The cleaning box is made of thickened stainless steel welded as a whole, with high strength and no deformation.
2. (Three pairs of brush configuration) Six 160mm diameter high-temperature resistant wire brushes+four sprays, clean the glass and fast (8-10m per minute). The first brush is equipped with two hard bristles and a cylinder for lifting.
3. The stainless steel spring can automatically adjust the thickness of the cleaning glass by 3-20mm.
4. The components and screws in contact with water in the cleaning box are made of stainless steel, copper, waterproof aluminum, nylon, and other materials, which will not rust during long-term use and are easy to maintain.
5. The glass support frame of the air drying box is uniformly welded with stainless steel, and the equipment is rust free after long-term use, which will not cause secondary glass pollution.
6. Two pairs of stainless steel wind blades, with strong wind force and good drying effect, equipped with a heating system. The unique circulating air glass drying system saves energy and has low noise (no heating required in winter, the air temperature can reach 40 degrees).
Technical parameters:
Maximum glass height: 2500mm
Minimum glass specification: 500mm × 500mm (limited to single row placement on both sides)
Glass thickness 3mm -19mm
Speed range:
Glass thickness within 5mm Vmax=7m/min
Glass thickness is 8mm -12mm, V ≤ 5 m/min
Glass thickness is 15mm -19mm, V ≤ 3m/min
Main transmission speed adjustment method: average speed
Table height: (750 ± 20) mm
Total power: 20KW
Water source: self circulating, tap water (in compliance with domestic water standards) and deionized water replenishment (deionized water equipment is provided by the demander).
Power supply: 380V 50Hz
Overall dimensions (length × wide × High) approximately 7200 × two thousand and five hundred × four thousand and one hundred
Weight 2200K
Sales market: China (all provinces have distributors), International (Europe, America, Southeast Asia)
WeChat/WhatsAPP 86 13924817348
We will do our best to provide you with high-quality products and perfect after-sales service!
