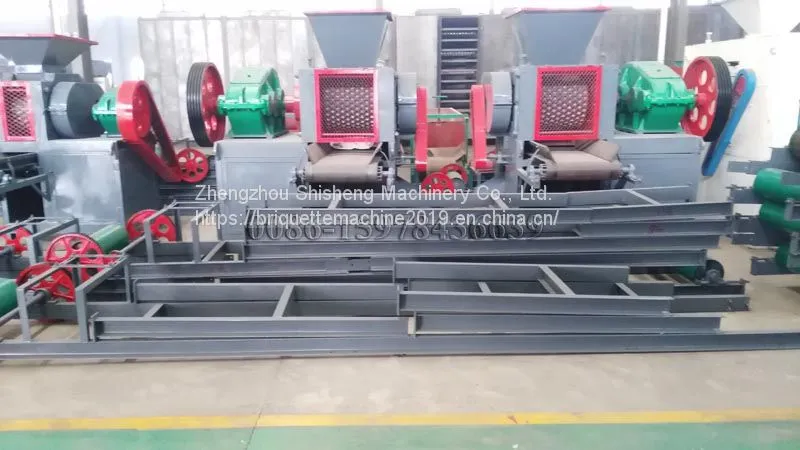

Carbon Black Roller Press
Carbon Black Roller Press Introduction:
Carbon Black Roller Press is also named of dry powder high pressure briquette machine, it is used for briquetting powder material with little moisture or without water and additive.
Carbon Black Roller Press mainly apply to metallurgical industry powder material molding, the raw material range is like lime powder, cryolite, aluminum oxide, magnesium, bauxite and nonferrous metal industry powder, auxiliary material, refractory industry powder, in particular, high additional value material is much more suitable.
The purpose of briquetting process is to reduce dust pollution, control volume, wastage recycling, convenient transport, etc. In steel plant, lime plant, metallurgy, refractory furnace burden, magnesium plant calcine white powder molding etc. are widely used.
Carbon Black Roller Press Hydraulic System:
Our company designed and produced hydraulic pressure and constant pressure Carbon Black Roller Press, the pressure is more bigger, the adaptability of production and running is more stronger. This structure takes hydraulic system working in normal production. But if hydraulic system happens failure or on cold day oil pump couldn’t be started, at the time, can convert hydraulic pressure into constant pressure to continue work. In normal working also can repair hydraulic system, after repair, then convert into hydraulic system working(alpine region winter long time operation must convert into constant pressure).
XM Series Coal Briquetting Machine
| Model | Reducer | Ratio | Roller Size(mm) | Main Shaft Speed(r/min) | Matched Power(kw) | Capacity(t/h) | Pressure Type |
| XM290 | ZQ350 | 1:31.5 | 290*200 | 12-14 | 5.5 | 0.9-1.0 | Constant Pressure |
| XM360 | ZQ350 | 1:31.5 | 360*250 | 12-14 | 7.5 | 1.5-2.0 | Constant Pressure/Hydraulic Pressure |
| XM400 | ZQ400 | 1:31.5 | 400*250 | 12-14 | 7.5 | 2.5-3.5 | |
| XM430 | ZQ400 | 1:31.5 | 430*250 | 12-14 | 11 | 3.5-4.5 | |
| XM500 | ZQ650 | 40.17 | 500*470 | 10-12 | 37 | 7.5-8.5 | |
| XM650 | ZQ850 | 40.17 | 650*470 | 9-11 | 45 | 9-10 | |
| XM750 | ZQ1000 | 40.17 | 750*570 | 9-11 | 90 | 13-14 | |
| XM850 | ZQ1250 | 50 | 850*570 | 8-10 | 110 | 15-17 | |
| Remarks: Above capacity is based on material specific gravity 0.8, briquette size: φ50*33mm | |||||||
| Roller material is 65Mn, high chrome alloy and 9Cr2Mo | |||||||
| According to different material adjust machine parameter to meet customer production | |||||||
KF Series Mineral Powder Briquetting Machine
| Model | Reducer | Ratio | Roller Size | Main Shaft Speed(r/min) | Matched Power(kw) | Capacity(t/h) | Pressure Type |
| KF500-371-280 | ZQ500 | 40.17 | 370*280 | 8-10 | 11 | 6.5-7.5 | Constant Pressure/Hydraulic Pressure |
| KF650-500-300 | ZQ650 | 40.17 | 500*300 | 8-10 | 37 | 8.5-9.5 | |
| KF850-650-300 | ZQ850 | 40.17 | 650*300 | 8-10 | 55 | 10.5-11.5 | |
| KF1250-750-350 | ZS1250 | 50 | 750*350 | 7-9 | 110 | 13.5-14.0 | |
| KF1450-850-350 | ZS1450 | 50 | 850*350 | 7-9 | 132 | 15.0-16.0 | |
| KF560-1000-350 | ZSY560 | 50 | 1000*350 | 7-9 | 150 | 17.0-20.0 | |
| Remarks: Above Capacity is based on material specific gravity 2, briquette size:φ50*33mm | |||||||
| Roller material is 65Mn, high chrome alloy and 9Cr2Mo. | |||||||
| According to different material adjust machine parameter to mmet customer production | |||||||

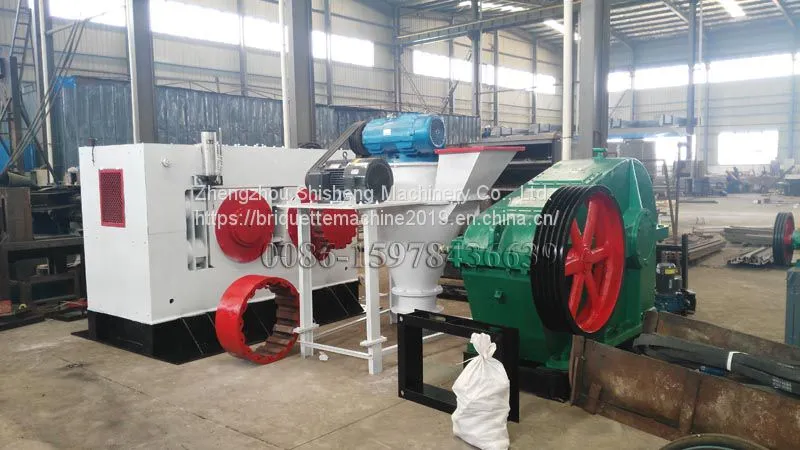

YHG Series Dry Powder High Pressure Briquetting Machine
| Model | YHG-0.5 | YHG-1.5 | YHG-3.0 | YHG-5.0 | YHG-8.0 | YHG-10.0 |
| Roller Diameter(mm) | φ299 | φ367 | φ522 | φ738 | φ760 | φ858 |
| Roller Width(mm) | 180 | 183 | 196 | 210 | 225 | 300 |
| Capacity(t/h) | 0.5 | 1.2-1.4 | 2.5-3.0 | 4.5-5.5 | 7.5-8.5 | 8.0-9.5 |
| Main Reducer | ZQ650 | ZQ850 | ZS1250 | ZS1450 | ZS1650 | ZS1650 |
| Main Motor | 18.5 | 37 | 55 | 75 | 90-110 | 110-132 |
| Pre-pressure Motor(kw) | 7.5 | 11 | 15 | 18.5 | 18.5 | 22 |
| Pre-pressure Reducer | WHC-125 | WHC-160 | WHC-200 | WHC-210 | WHC-210 | WHC-250 |
| Remarks: Above capacity is based on material specific gravity 1.3, briquette size: φ35*30*20mm | ||||||
| Roller material adopts 9Cr2Mo | ||||||
| Pre-pressure motor is speed motor | ||||||
