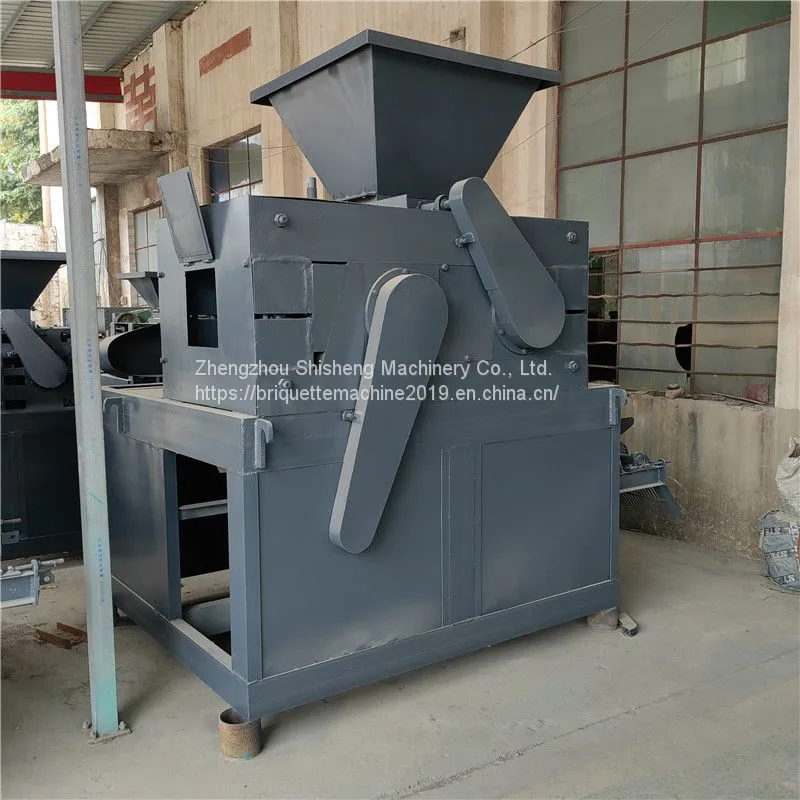

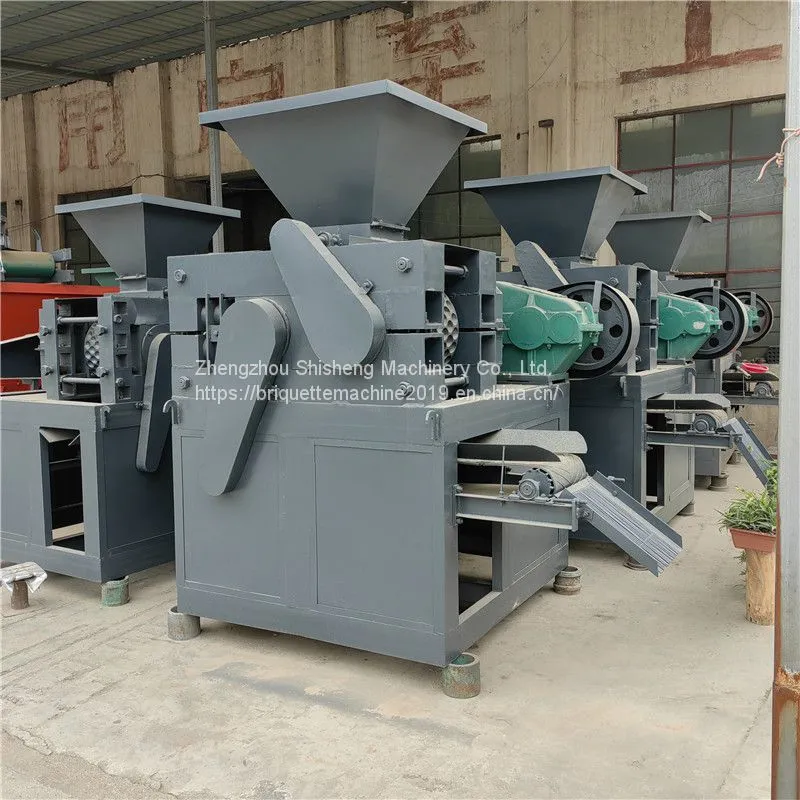

Briquettes Machine of Carbon Black
US$ 4500 - 5500
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Shisheng Machinery
Place of Origin:
China
Model Number:
XM500
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
25 days
Related Products
-
Briquette Machines SuppliersUS$ 4500 - 5500MOQ: 1 Set -
Carbon Black Pellet MachineUS$ 3500 - 4000MOQ: 1 Set
-
Fuel Briquettes Make From Carbon Black PowderUS$ 3500 - 4500MOQ: 1 Set
-
Hs Code Roller Press Machine manufacturer Industrial WasteUS$ 5000 - 6500MOQ: 1 Set
-
Electric Roller Die Press Machine China SuppliesUS$ 3500 - 4000MOQ: 1 Set
Brand Name
Shisheng Machinery
Place of Origin
China
Model Number
XM500
Certification
ISO, CE
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
1 year
Dimension(L*W*H)
1840*1650*1860mm
Production Capacity
5-6t/h
Condition
New
Power(W)
30kw
Motor Type
AC Motor
Briquettes Machine of Carbon Black Introduction:
(1) Briquettes Machine of Carbon Black is mainly used for anhydrous materials of nonferrous and carbon black powder briquetting machine /ball making system before the smelting furnace.
(2) Raw material ranges from coal, coke powder, coking coal, coal ash, coal mud, iron ore concentrates, chromate ore concentrates, mgo power, copper power, chrome ore power, Lead Zinc Ore, steel slag, aluminum ash, Si Mn mineral powder, bauxite refractory, nonferrous metal power, refractory matter, ceramic filter sand and metallurgical powder cold pellet making industry.
XM Series Coal Briquettting Machine
| Model | Reducer | Ratio | Roller Size(mm) | Main Shaft Speed(r/min) | Matched Power(kw) | Capacity(t/h) | Pressure Type |
| XM290 | ZQ350 | 1:31.5 | 290*200 | 12-14 | 5.5 | 0.9-1.0 | Constant Pressure |
| XM360 | ZQ350 | 1:31.5 | 360*250 | 12-14 | 7.5 | 1.5-2.0 | Constant Pressure/Hydraulic Pressure |
| XM400 | ZQ400 | 1:31.5 | 400*250 | 12-14 | 7.5 | 2.5-3.5 | |
| XM430 | ZQ400 | 1:31.5 | 430*250 | 12-14 | 11 | 3.5-4.5 | |
| XM500 | ZQ650 | 40.17 | 500*470 | 10-12 | 37 | 7.5-8.5 | |
| XM650 | ZQ850 | 40.17 | 650*470 | 9-11 | 45 | 9-10 | |
| XM750 | ZQ1000 | 40.17 | 750*570 | 9-11 | 90 | 13-14 | |
| XM850 | ZQ1250 | 50 | 850*570 | 8-10 | 110 | 15-17 | |
| Remarks: Above capacity is based on material specific gravity 0.8, briquette size: φ50*33mm | |||||||
| Roller material is 65Mn, high chrome alloy and 9Cr2Mo | |||||||
| According to different material adjust machine parameter to meet customer production | |||||||

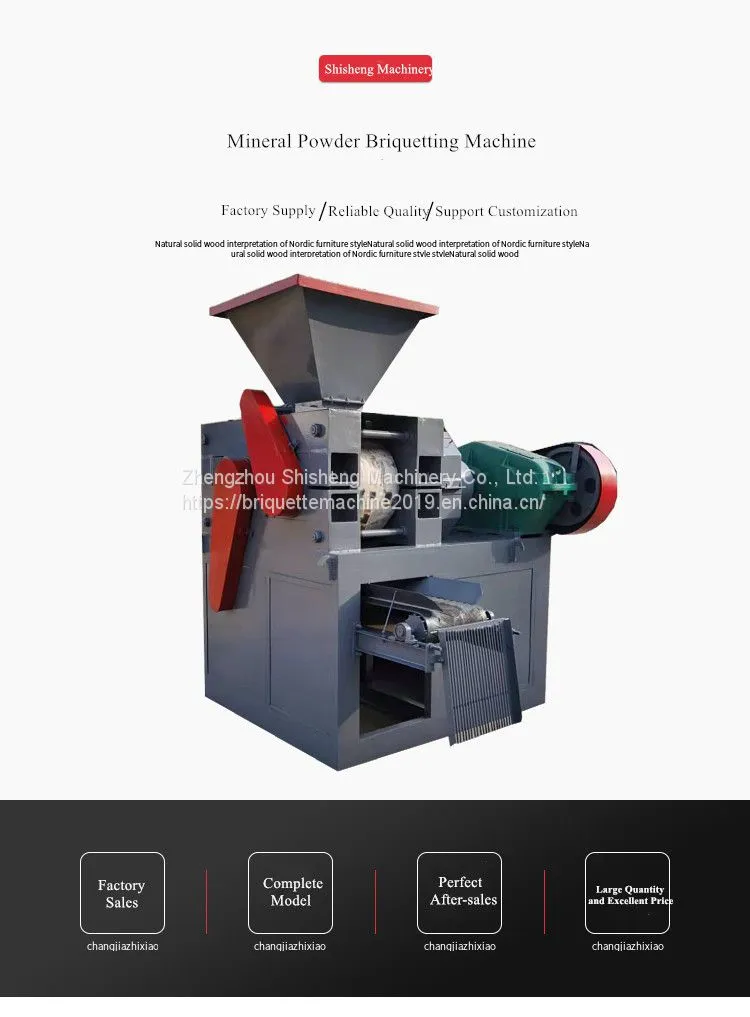

KF Series Mineral Powder Briquetting Machine
| Model | Reducer | Ratio | Roller Size | Main Shaft Speed(r/min) | Matched Power(kw) | Capacity(t/h) | Pressure Type |
| KF500-371-280 | ZQ500 | 40.17 | 370*280 | 8-10 | 11 | 6.5-7.5 | Constant Pressure/Hydraulic Pressure |
| KF650-500-300 | ZQ650 | 40.17 | 500*300 | 8-10 | 37 | 8.5-9.5 | |
| KF850-650-300 | ZQ850 | 40.17 | 650*300 | 8-10 | 55 | 10.5-11.5 | |
| KF1250-750-350 | ZS1250 | 50 | 750*350 | 7-9 | 110 | 13.5-14.0 | |
| KF1450-850-350 | ZS1450 | 50 | 850*350 | 7-9 | 132 | 15.0-16.0 | |
| KF560-1000-350 | ZSY560 | 50 | 1000*350 | 7-9 | 150 | 17.0-20.0 | |
| Remarks: Above Capacity is based on material specific gravity 2, briquette size:φ50*33mm | |||||||
| Roller material is 65Mn, high chrome alloy and 9Cr2Mo. | |||||||
| According to different material adjust machine parameter to mmet customer production | |||||||
YHG Series Dry Powder High Pressure Briquetting Machine
| Model | YHG-0.5 | YHG-1.5 | YHG-3.0 | YHG-5.0 | YHG-8.0 | YHG-10.0 |
| Roller Diameter(mm) | φ299 | φ367 | φ522 | φ738 | φ760 | φ858 |
| Roller Width(mm) | 180 | 183 | 196 | 210 | 225 | 300 |
| Capacity(t/h) | 0.5 | 1.2-1.4 | 2.5-3.0 | 4.5-5.5 | 7.5-8.5 | 8.0-9.5 |
| Main Reducer | ZQ650 | ZQ850 | ZS1250 | ZS1450 | ZS1650 | ZS1650 |
| Main Motor | 18.5 | 37 | 55 | 75 | 90-110 | 110-132 |
| Pre-pressure Motor(kw) | 7.5 | 11 | 15 | 18.5 | 18.5 | 22 |
| Pre-pressure Reducer | WHC-125 | WHC-160 | WHC-200 | WHC-210 | WHC-210 | WHC-250 |
| Remarks: Above capacity is based on material specific gravity 1.3, briquette size: φ35*30*20mm | ||||||
| Roller material adopts 9Cr2Mo | ||||||
| Pre-pressure motor is speed motor | ||||||
