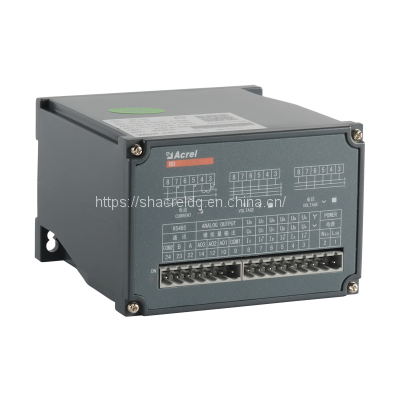

Acrel BD-3I3 Three Phase Current CE Certified Transducer Sensor and Electrical Transducer With RS485 Modbus-RTU Optional
US$ 84 - 120
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Acrel
Place of Origin:
China
Model Number:
BD-3I3
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
3-phase 3-wire AC Current 35mm DIN Rail Active Power Factor Current Electrical Transducer Sensor Device DC 4-20mA / 0-10V OutputUS$ 84 - 120MOQ: 1 Piece -
BD Electrical Transducer Power Supply 85~265V AC 50Hz Current Transducer With Voltage 420ma Output for Industrial AutomationUS$ 37.1 - 53MOQ: 1 Piece
-
AC Current Transducer BD-AI Power Supply 85~265V AC 35mm DIN Rail/Screw Fixed CE Certificate 1-phase 2-wireUS$ 37.1 - 53MOQ: 1 Piece
-
AC Current Transducer BD-AI 1-phase 2-wire Input 0~1A AC 0~5A AC Din Rail DC Current Transducer With 420ma OutputUS$ 37.1 - 53MOQ: 1 Piece
-
Acrel BD AI Electrical Transducer Input AC 0-1/5A Output 4-20mA Power AC/DC 85-270VUS$ 37.1 - 53MOQ: 1 Piece
Brand Name
Acrel
Place of Origin
China
Model Number
BD-3I3
Usage
Magnetic Sensor
Theory
Current Sensor
Output
Analog Sensor
Products Description

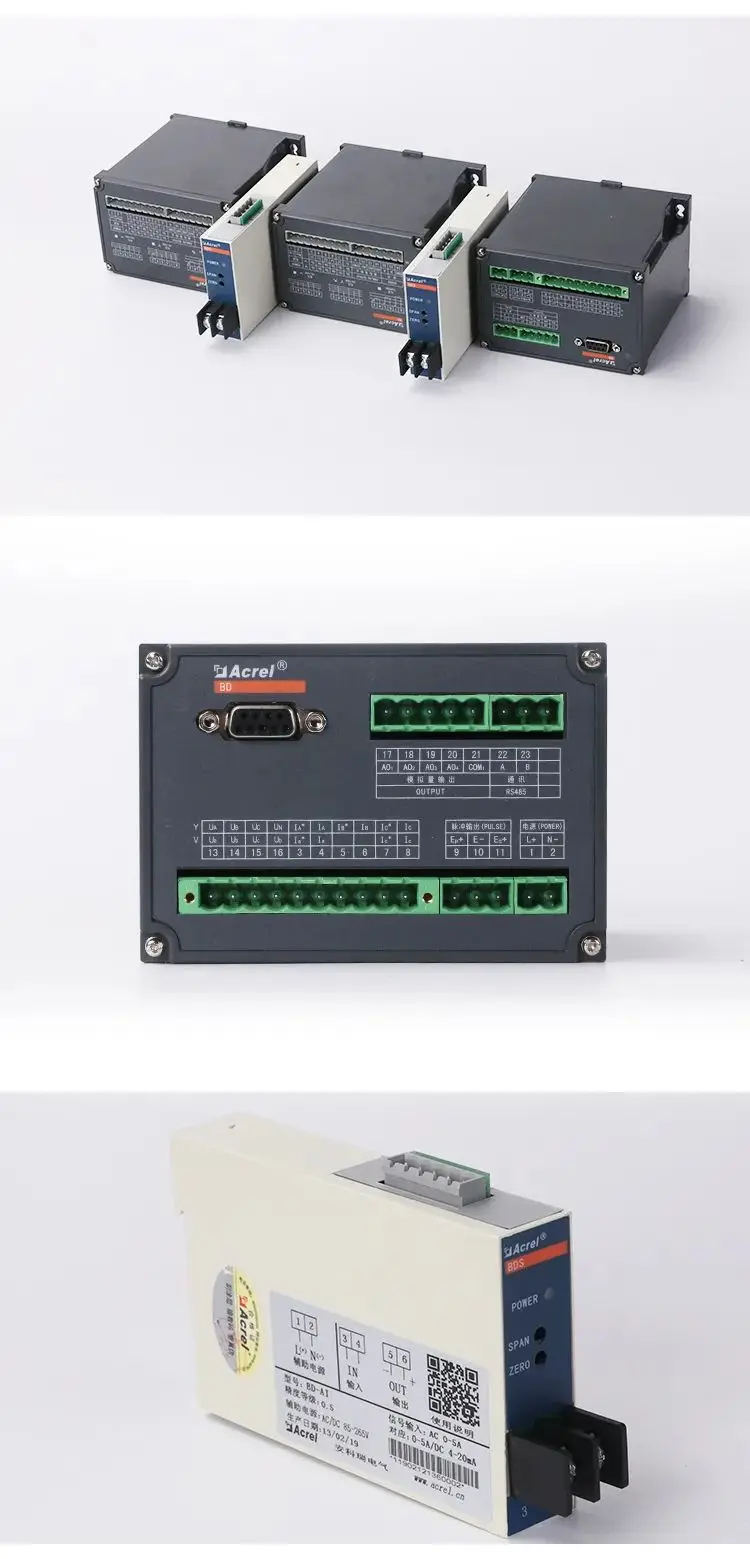

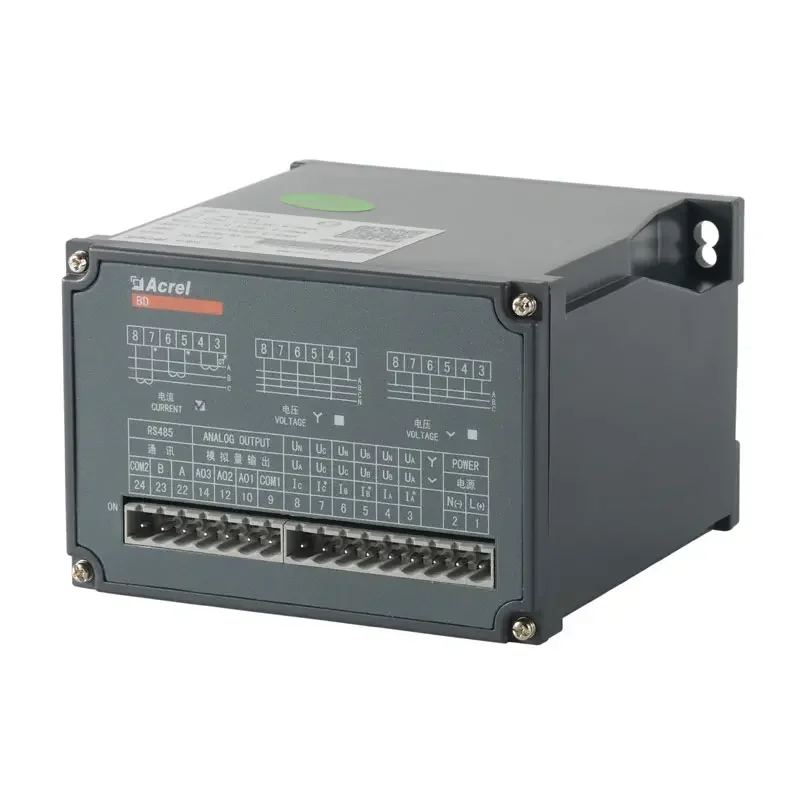

AC Current Transducer BD-3I3 (3-phase 3-wire)

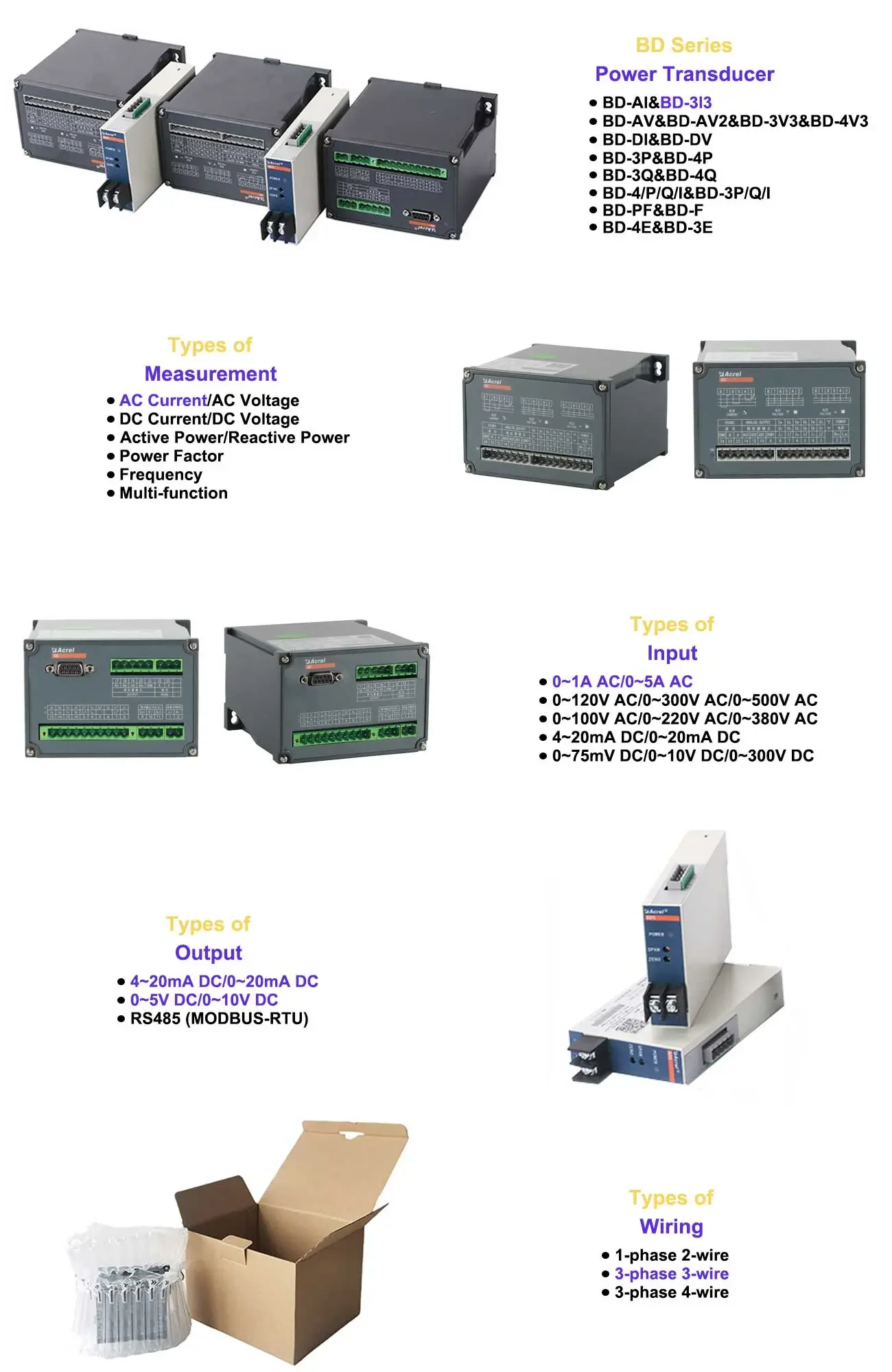

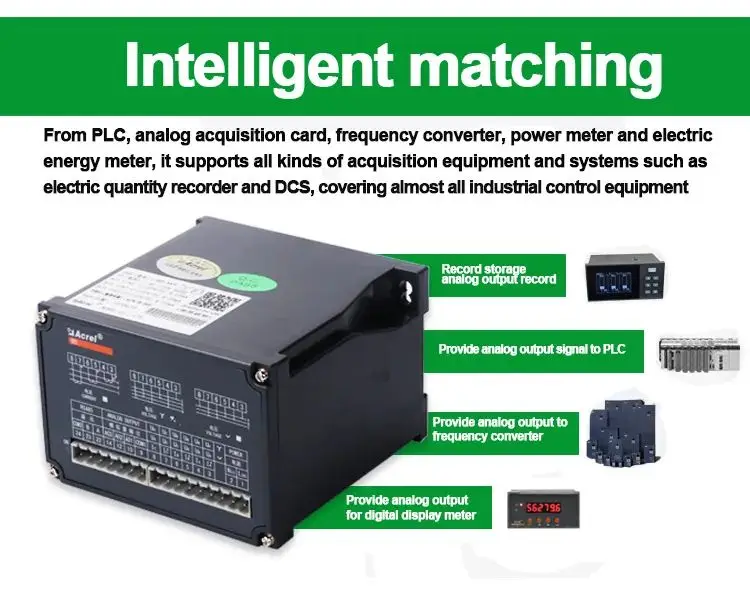

BD series electric transducer is a kind of device which can isolate and transmit electric parameters such as current, voltage frequency, power, power factor or temperature, resistance and so on non-electrical parameters, into linear DC analog signal or digital signal. They can directly connect with the pointer table, digital meters, also can connected with automatic control devices (eg PLC), a variety of A / D converter, and the computer system.

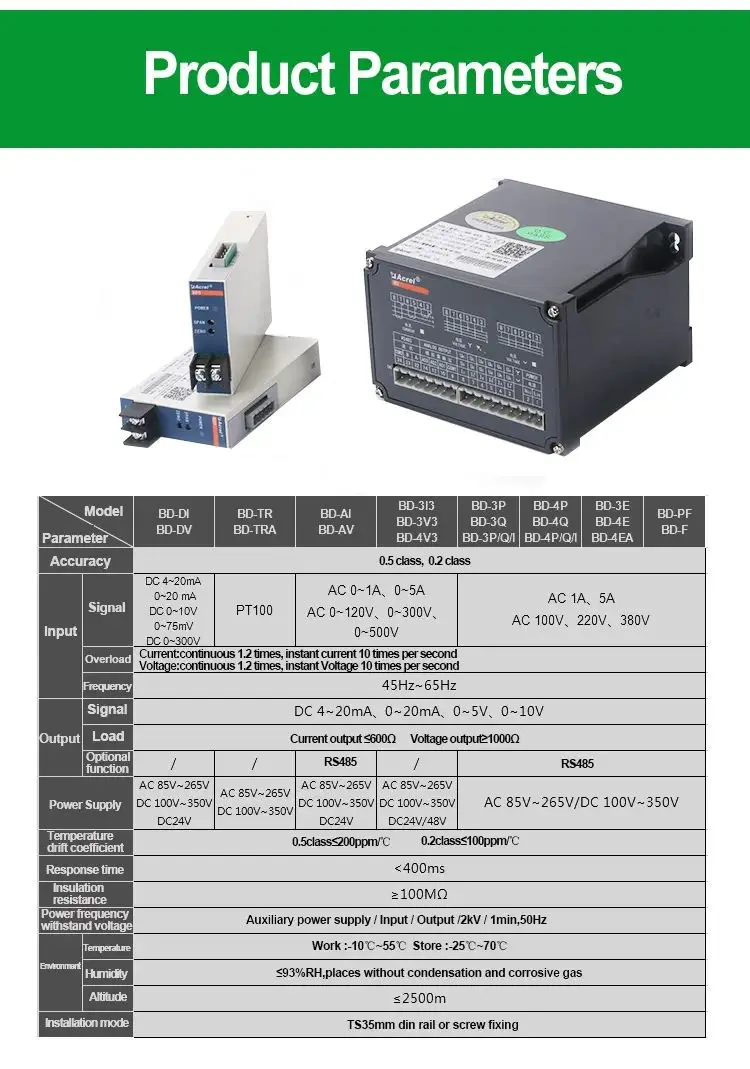

● Measurement: 3-phase AC Current
● Accuracy: Class 0.5
● Input: 0~1A/0~5A AC
● Output: 4~20mA/0~20mA DC or 0~5V/0~10V DC
● Power Supply: 85~265V AC(50Hz) or 100~350V DC or 24V/48V DC

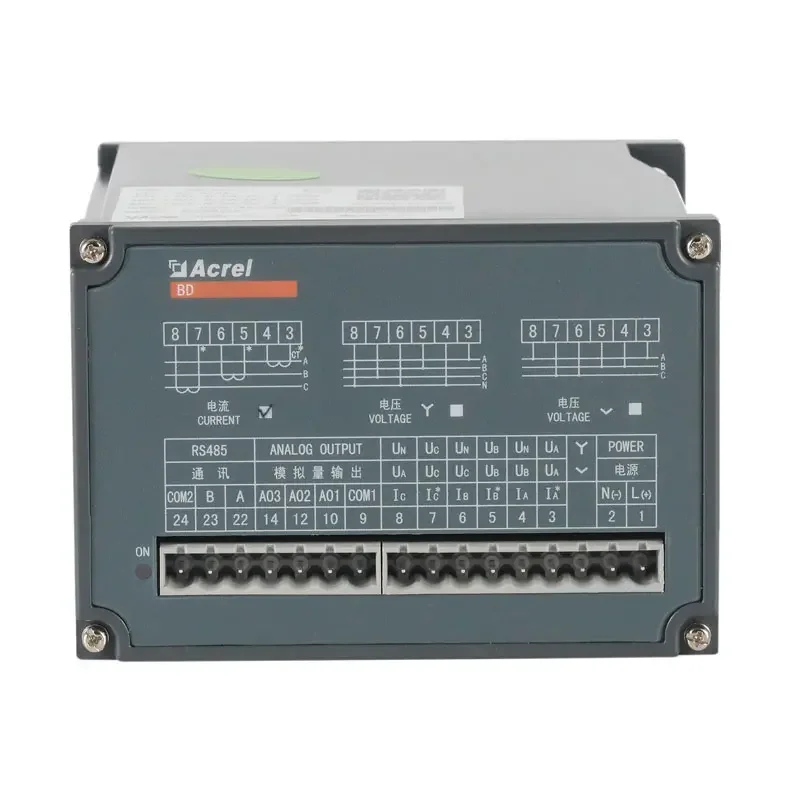

● Wiring: 3-phase 3-wire
● Applicaiton: Paired with PLC for Industrial Automation; Used for Metering
● Response Time: ≤400ms

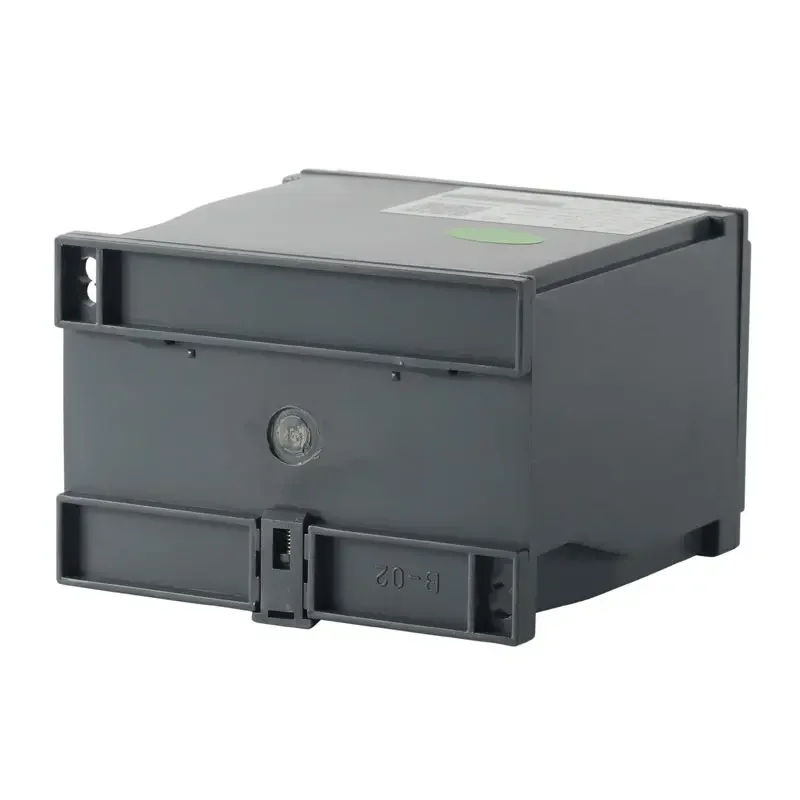

● Installation: 35mm DIN Rail/Screw fixed
● Standard&Certificate: CE
● Accuracy: Class 0.5
● Input: 0~1A/0~5A AC
● Output: 4~20mA/0~20mA DC or 0~5V/0~10V DC
● Power Supply: 85~265V AC(50Hz) or 100~350V DC or 24V/48V DC
● Wiring: 3-phase 3-wire
● Applicaiton: Paired with PLC for Industrial Automation; Used for Metering
● Response Time: ≤400ms
● Installation: 35mm DIN Rail/Screw fixed
● Standard&Certificate: CE
Product overview
Company Profile
Acrel Co., Ltd. [Stock Code : 300286. SZ] is a high-tech enterprise concentrating on research, production, sales and services. It mainly provides systemic solutions of energy efficiency management and electrical safety for users. ‘Acrel’ is equipped with the complete production lines from cloud platform software to sensors. Until now, it has more than 8000 sets systemic solutions used in China to help users to realize energy visual management ,supply energy data services and improve electrical efficiency and safety. ‘Acrel’ has maintained steady growth since its listing in 2012. The company will adhere to the concept of ‘innovation,high-efficiency,unity and honesty’ and it provides more high-quality solutions,products and service for power system users and micro-grid.
