Acrel BD AI Electrical Transducer Input AC 0-1/5A Output 4-20mA Power AC/DC 85-270V
US$ 37.1 - 53
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Acrel
Place of Origin:
China
Model Number:
BD-AI
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
AC Current Transducer BD-AI Power Supply 85~265V AC 35mm DIN Rail/Screw Fixed CE Certificate 1-phase 2-wireUS$ 37.1 - 53MOQ: 1 Piece -
Acrel Transmitter AC/DC85-270V 1 Channel Analog Output 4-20mA BD-4P Active PoweUS$ 95.2 - 95.2MOQ: 1 Piece
-
Acrel BD-4EA Transmitter 2 Channels Energy Impulse Output Rs485 Modbus-RTU Multi-power DigitalUS$ 174 - 174MOQ: 1 Piece
-
Acrel BD-4E Multi-power Digital Transmitter 2 Channels Energy Impulse Output Rs485 Modbus-RTUUS$ 151 - 151MOQ: 1 Piece
-
Acrel Active Power Transmitter AC/DC85-270V 1 Channel Analog Output BD-3PUS$ 95.2 - 95.2MOQ: 1 Piece
Brand Name
Acrel
Place of Origin
China
Model Number
BD-AI
Usage
Other, Current Transducer
Theory
Current Sensor
Output
Digital Sensor
Products Description

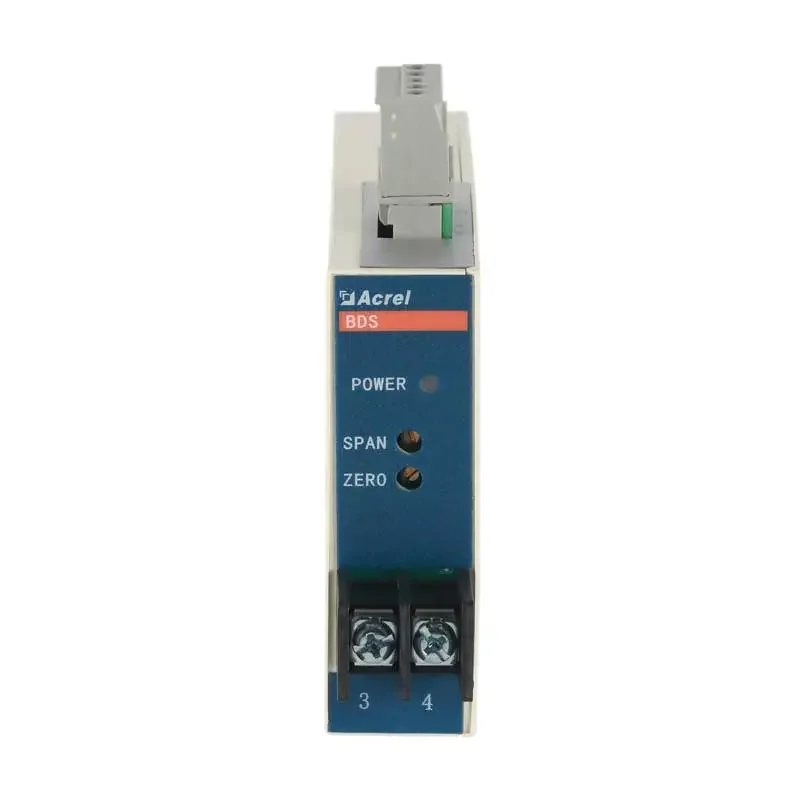

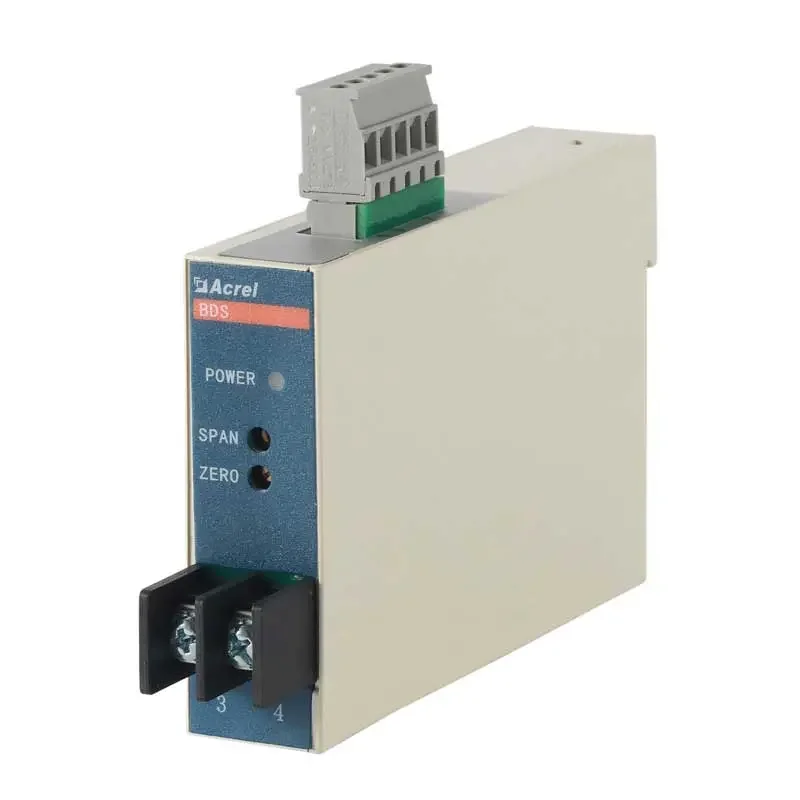

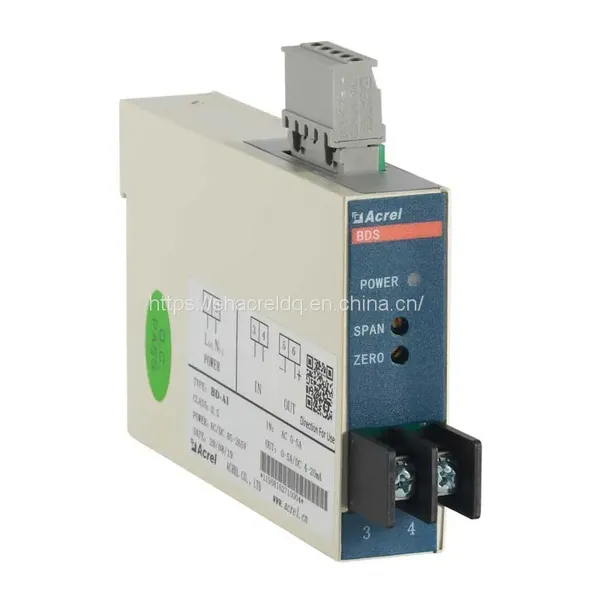

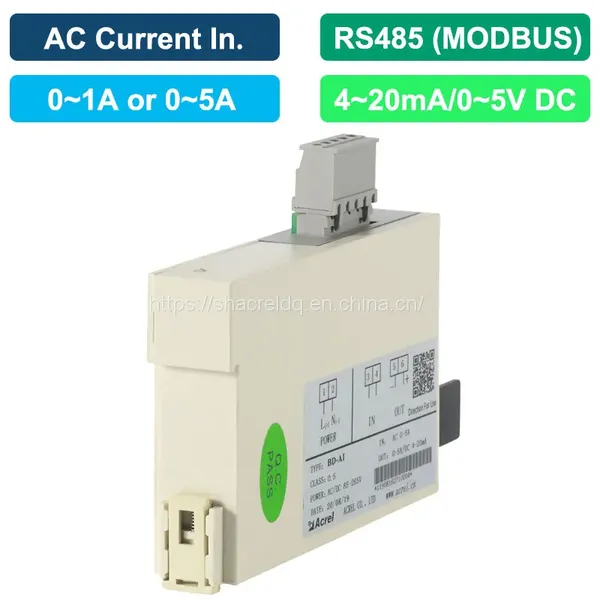

AC Current Transducer BD-AI (1-phase 2-wire)
BD series electric transducer is a kind of device which can isolate and transmit electric parameters such as current, voltage frequency, power, power factor or temperature, resistance and so on non-electrical parameters, into linear DC analog signal or digital signal. They can directly connect with the pointer table, digital meters, also can connected with automatic control devices (eg PLC), a variety of A / D converter, and the computer system.
● Measurement: 1-phase AC Current
● Accuracy: Class 0.5
● Input: 0~1A AC/0~5A AC
● Output: 4~20mA/0~20mA DC or 0~5V/0~10V DC or RS485(MODBUS-RTU)
● Power Supply: 85~265V AC(50Hz) or 100~350V DC or 24V DC
● Wiring: 1-phase 2-wire
● Applicaiton: Paired with PLC for Industrial Automation; Used for Metering
● Response Time: ≤400ms
● Installation: 35mm DIN Rail/Screw fixed
● Standard&Certificate: CE
● Accuracy: Class 0.5
● Input: 0~1A AC/0~5A AC
● Output: 4~20mA/0~20mA DC or 0~5V/0~10V DC or RS485(MODBUS-RTU)
● Power Supply: 85~265V AC(50Hz) or 100~350V DC or 24V DC
● Wiring: 1-phase 2-wire
● Applicaiton: Paired with PLC for Industrial Automation; Used for Metering
● Response Time: ≤400ms
● Installation: 35mm DIN Rail/Screw fixed
● Standard&Certificate: CE
