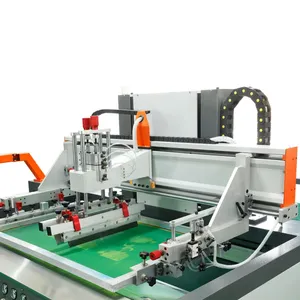

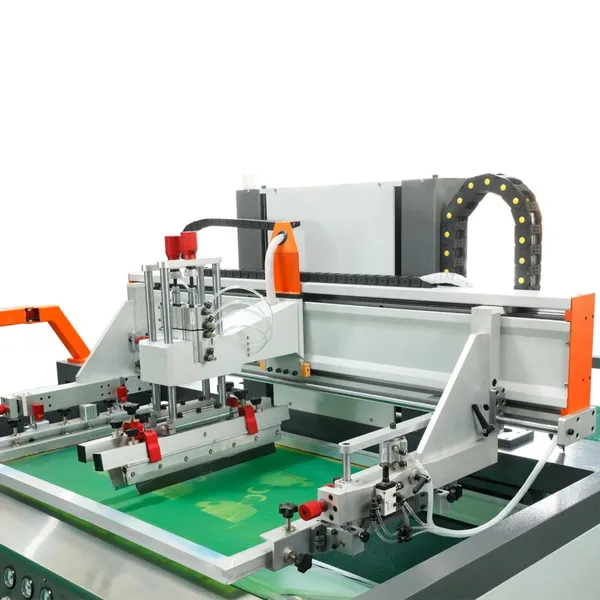

Cellophane Automatic Screen Printing Kit

Name: Cellophane Automatic Screen Printing Kit
Brand: Tamprinter
Price: Negotiable

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 20 Set / Sets per Month
Port Shenzhen
Payment Terms:T/T L/C Credit Card PayPal Cash Escrow
Delivery Detail:15 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	Tamprinter	Place of Origin:	China	Model Number:	TM-ZF-5070A
Type:	Conventional Plate Processor	Certification:	CE Certificate	After-sales Service Provided:	Overseas third-party support available
Warranty:	1 Year	Condition:	New	Automatic Grade:	Semi-Automatic

Packaging Details

plywood

Product Description

Product Description

UV Silk Screen Printing Varnish UV Crystal Varnish Fully Auto Screen Printing Machine

tamprinter printing machine simulation working :

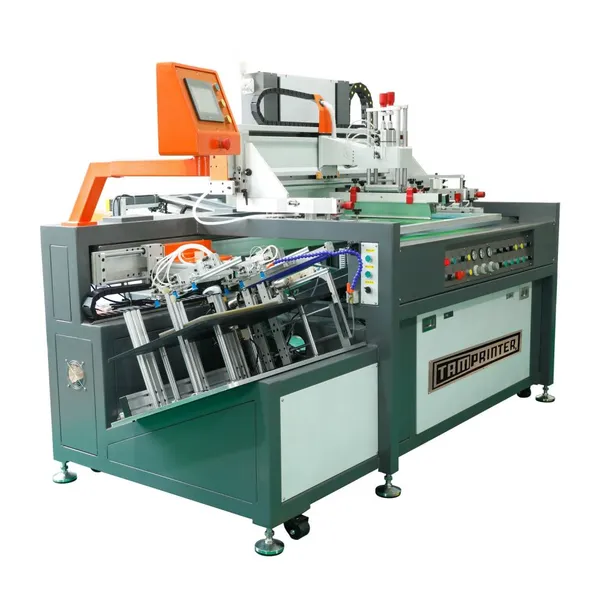

tamprinter printing machine Whole body visit :is suitable for the automatic high-precision screen printing of reflective film materials and paper, and realizes automatic feeding, automatic printing, and automatic unloading.

Device model	TM-ZF-5070A	Air pressure	0.4-0.6Mpa
Equipment size	LWH:215012501800mm	power supply	380V/3p/50Hz
Work table size	700X850mm	Air consumption	15L/min
Maximum printing area	500x700mm	power	5KW
Maximum frame size	850x1150mm	Printing accuracy	±0.03mm
Printing thickness	0.1-3mm	Machine capacity	800P/h
Stack height	250mm	equipment weight	800KG
Suction area of platen	500X700mm	Control method	Touch screen operation
Platen flatness	±0.05mm	Printing direction	Printing from left to right
Height of work surface from ground	1100mm	Print head drive mode	Servo motor drive
Suction aperture of platen	1.2mm	Targeting	Servo oblique push three-point positioning
Net washing height	150mm	Opening and closing drive mode of table plate	Frequency conversion geared motor drive
Squeegee back ink knife angle	±20° adjustable	Up and down pressure control of squeegee/return ink knife	Mechanical + air pressure
Frame thickness range	25-50mm	Screen fixing method	Pneumatic + Mechanical
Printing head walking speed	0-1000mm/s	Cantilever fixing method of screen frame	Handle screw fixed
Printing itinerary	100-750mm adjustable	Screen frame parallelism adjustment method	Screw adjustment
Cutting method	Manipulator grip reclaiming	Work surface material	Polished stainless steel
Loading and unloading drive mode	Servo motor drive	Emergency stop switch	Button emergency stop switch

1. Adopting invert motor for side lifting printing table, servo motor drive the printing head by horizontal movement. Specifications

2. Printing head and screen frame are driven independently, servo motor controls the printing.

3. Printing knife drive by pneumatic control, independent digital control for stroke.

4. Operation model: manual/semi-auto/full-auto

5. Digital control for Printing suspended time.

6. The lifting of printing head can be independently adjusted for convenience of cleaning Scraper and covering ink blade and screen mesh.

7. Easy to adjust the position of screen frame with the pneumatic and mechanical fixture.

8. Adopting digital control technology controlled the servo motor for stability and precision of feeding and delivering. 9.PLC programming, touching screen, simple to operate, easy to use.

Advantages:

1. Automatic operating, save labour 2~3 operator

2. High precise printing with overprinting colors

3. Easy operate, Plc+ touch screen rotary gimbal mounting

4. Anti-static and dust remove are available for clean printing

5. Excellent design, suitable for soft materials, hard materials, up to 5mm thickness

6. New comer can learn to operate in two hours.

7. Improve working style to replace physical

8 . Cheaper price than stop cylinder screen printer, but more versatile

Features: Four sets of servo drives respectively drive lifting, printing, loading and unloading, coordinated actions, efficient and reliable.

The wind drawing gauge is equipped with a pressing and warping edge mechanism, which highly imitates the manual positioning action, has a wide range of adaptability and accurate positioning.

The printing pressure is uniform and adjustable, which can be adapted to the different needs of various inks.

The unique screen synchronization and off-network mechanism avoids sticking to the network.

The constant pressure control system ensures the pressure balance of the squeegee and the uniforming knife to ensure high printing quality.

Powerful suction motor, unique blowing and suction control, so that the substrate is firmly adsorbed and released in time.

Cantilever vertical lifting mode, independent lifting of the printing head, easy to operate.

The air blowing system cooperates with the paper separating pick to reliably separate the printing substrate.

Precise fine-tuning mechanism, fine-tuning of the XY direction of the screen, convenient for plate registration.

Chinese man-machine interface operation, reliable and durable, easy to adjust, accurate setting and complete functions.

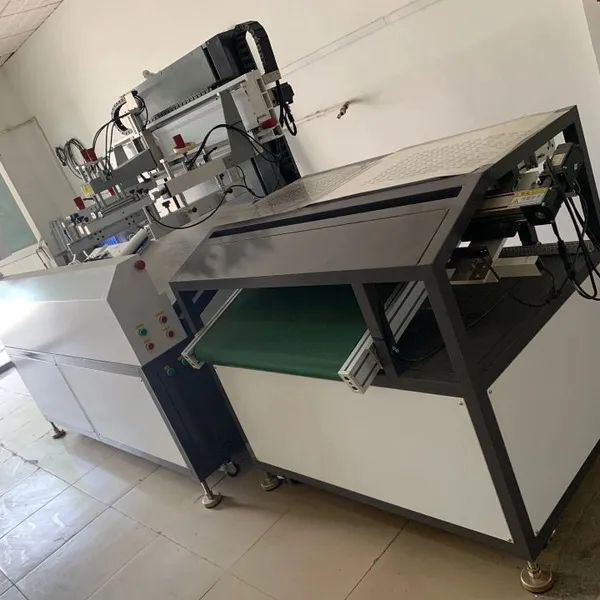

It can be installed along the drying tunnel or perpendicular to the drying tunnel to meet the needs of different sites.
