Automatic Screen Printing Machines With UV Dryer System
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Tamprinter
Place of Origin:
China
Model Number:
TM-Z2
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
15 days
Related Products
-
Screen Printing Machine With UV Tunnel Curing MachineUS$ 1 - 800MOQ: 1 Piece -
A4 Thin EL Panels UV Ink Auto Screen Printing MachinesNegotiableMOQ: 1 Set
-
Paper Automatic Screen Printing KitNegotiableMOQ: 1 Piece
-
Plastic Sheet Clean Room Screen Printing EquipmentUS$ 1 - 800MOQ: 1 Set
-
Membrane Switch Auto uv Screen Printing MachineNegotiableMOQ: 1 Set
Brand Name
Tamprinter
Place of Origin
China
Model Number
TM-Z2
Type
Conventional Plate Processor
After-sales Service Provided
Overseas third-party support available
Condition
New
Automatic Grade
Semi-Automatic
Product Description
3/4 automatic screen printing machines with uv dryer for transfer paper printingTechinical parameters:

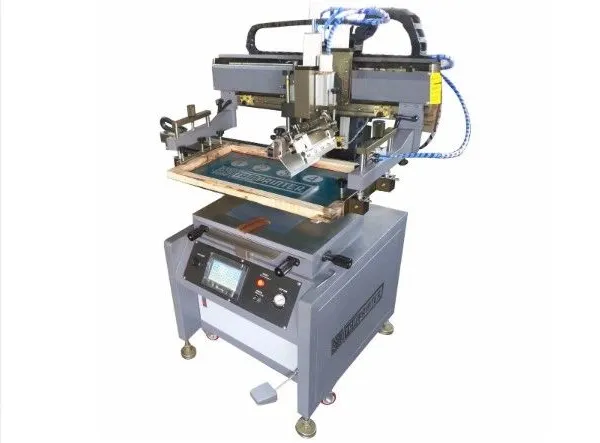

Screen printer:
| Item | Description |
| TM-3045Z Vertical screen printer with robot arm |
Worktable area: 400X450mm Max printing area: 300X450mm Max screen fame size : 550X720mm Substrate thickness (mm):less than 40mm Printing speed (pcs/h):900 Working pressure(Mpa):4.0-6.0 Machine size(mm): 980X820X1580mm 2CBM weight:280kg Rated voltage(P/V/Hz) 3/380/50 Source power: 380V/1.5kw Free fitting clamp 300mm--1pcs,tinge 320mm---1pcs; clamp 450--1pcs,tinge 470mm--1pcs. Tool box |
UV Dryer
| TM-UV400-L varnish Machine |
Conveyorbelt width(mm) 380 Effective range (mm) 400 Max thickness of cured (mm) 40 Conveyor speed (m) 2~20 Power(P/V/Hz) 3/380/50 UV lamp(KW/2pcs)5.6 Driving power(W) 60 Total power(KW) 13 Dimension(L*W*H) 4200*700*1200 5.2CBM Weight(kg) 350 Free fitting - 1 X speed regulator |
Performance & Features

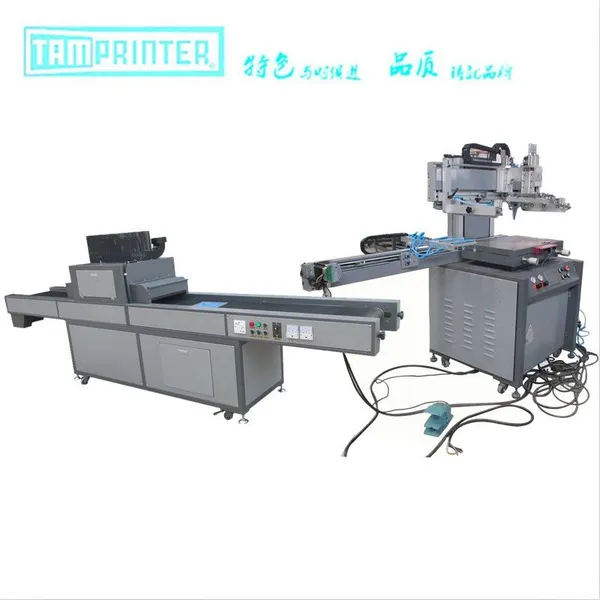

1. This line is composed of vertical screen printer, UV dryer and collecting device.
2. It is a fully automatic production line which takes off material automatically.
3. After printing finished, robot arm will suck and pull out the printing material, then send it to next working procedure (drying and products collecting).
4. It can not only save human labor, but also improve working efficiency of printing machines.
5. It applies to printing on membrane switch, sheet metal, plastic, plastic film etc.
Application:
It has been widely used in the printing of membrane switch,thermal transfer,water transfer ,PCB,LED,SMT,solder paste,plastic cement,glass,ceramics,keyboard,metal,leather,textile.
