AM2SE Protection Relay
● A complete set of protection, related to the application; ● 4 current input, 3 voltage input, 8DI, 5DO; ● Auxiliary power supply adapts with AC220V, DC220V, DC110V, AC110V, DC48V, DC24V; ● 1 RS485 serial communication, IEC60870-5-103 and Modbus-RTU; ● more than 200 sequence of event records, more than 400 system logs, and more than 10 seconds tripping context records; ● Powerfulgraphic programmable Logic.

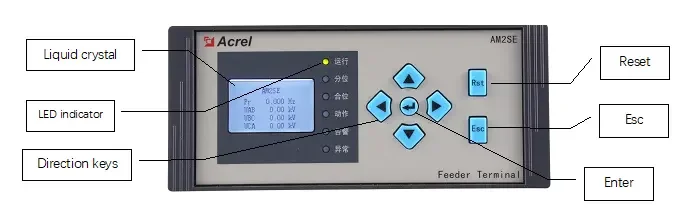

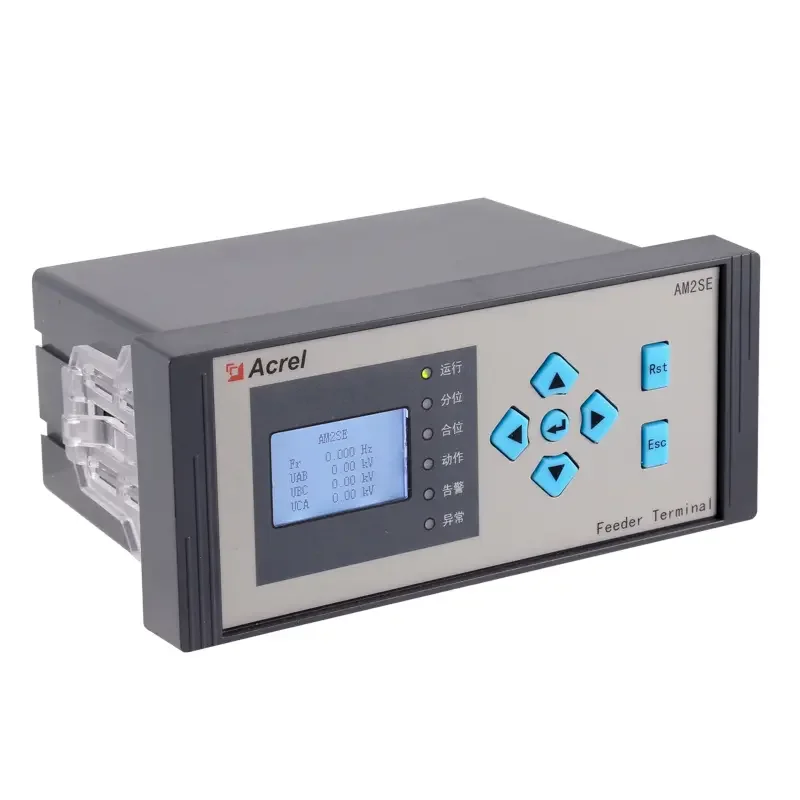

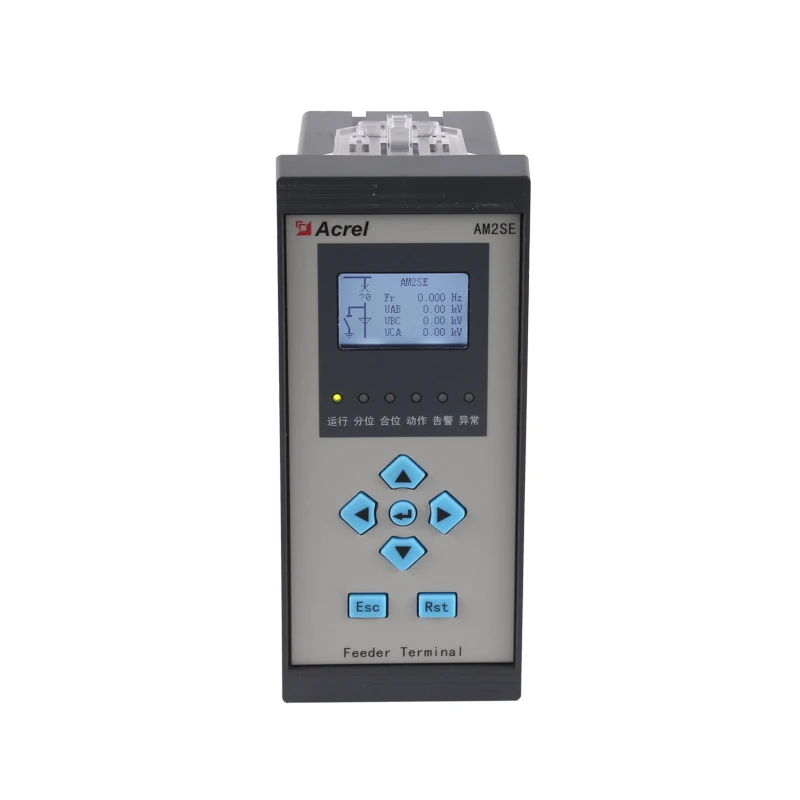

AM2SE-H（Horizontal version）

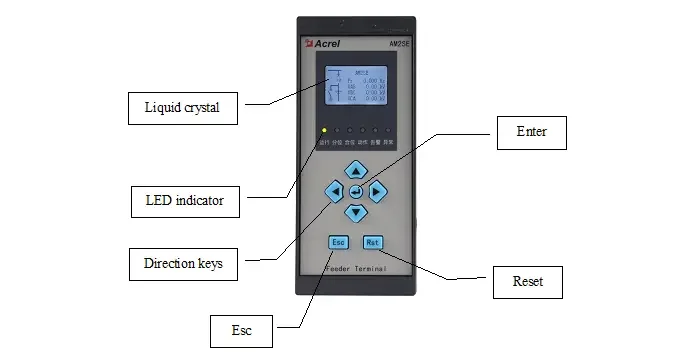

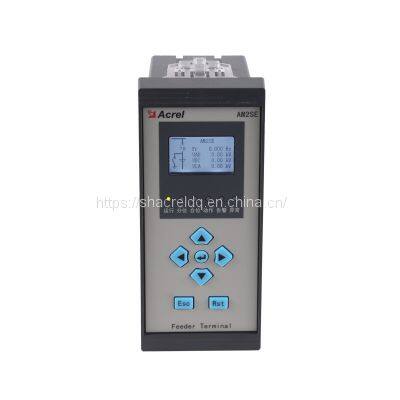

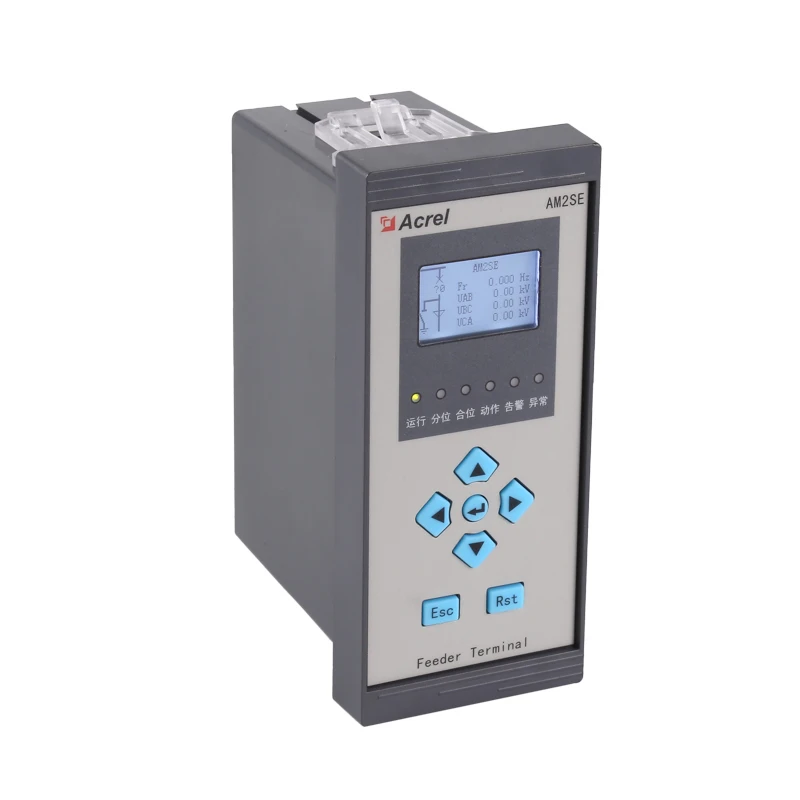

AM2SE-V（Vertical version）




Function & Parameter
Protection Functions


Protection Functions
AM2SE-

V
H
Overcurrent ( 3 stages, IDMT )
■
Earth fault ( 3 stages, IDMT )
■
Negative sequence overcurrent ( 2 stages, IDMT )
■
Auto-reclose
■
Overload ( trip/alarm )
■
Under frequency
■
Post-accelerated overcurrent
■
I0 Post-accelerated overcurrent
■
Overvoltage ( trip )
■
Undervoltage ( trip )
■
Self-produced over zero-voltage ( trip )
■
Residual overvoltage ( trip )
■
FC block
■
Trip and close circuit supervision ( alarm )
■
Non-electricity ( trip/alarm )
■
Undervoltage ( alarm )
■
Overvoltage ( alarm )
■
Residual overvoltage ( alarm )
■
PT supervision ( alarm )
■
Self-produced over zero-voltage ( alarm )
■
Rear ports
V
H
RS485
■
Protocols
V
H
Modbus serial
■
IEC 60870-5-103
■

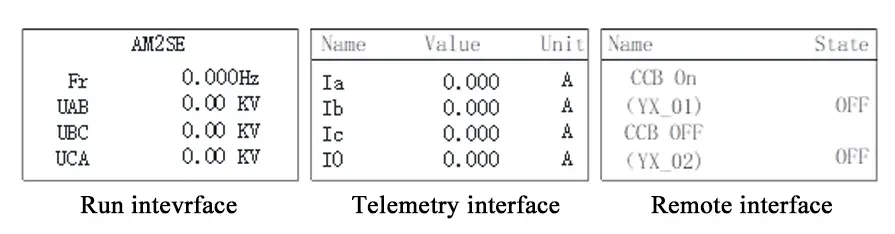

Measurement
V
H
Electric parameter
U, I, P, Q, PF, Fr, Ep, Eq, Es
Input current
4
Input voltage
3

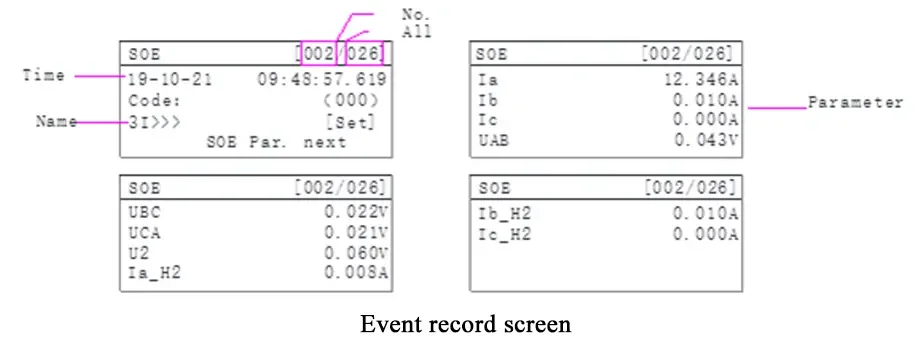

Logs and Records
V
H
Fault recorder
■
Sequence of event record
■
Monitoring Functions
V
H
Anti-pumping circuit
Optional
Remote control
■

Technical Parameter


DC rated voltage
220V, 110V, 48V
permissive variation
-20%~+15%
Ripple coefficient
not larger than 5% rated voltage
AC rated voltage
220V
permissive variation
-10%~+10%
Ripple coefficient
not larger than 5%
Rated voltage input
AC100V or 100/√3V
Rated current input
AC 5A/1A
Frequency
50Hz
Operation time
-25℃~+55℃
Relative humidity
5%~95%(No condensation and freeze inside)
Atmospheric pressure
66kpa ~ 106Kpa

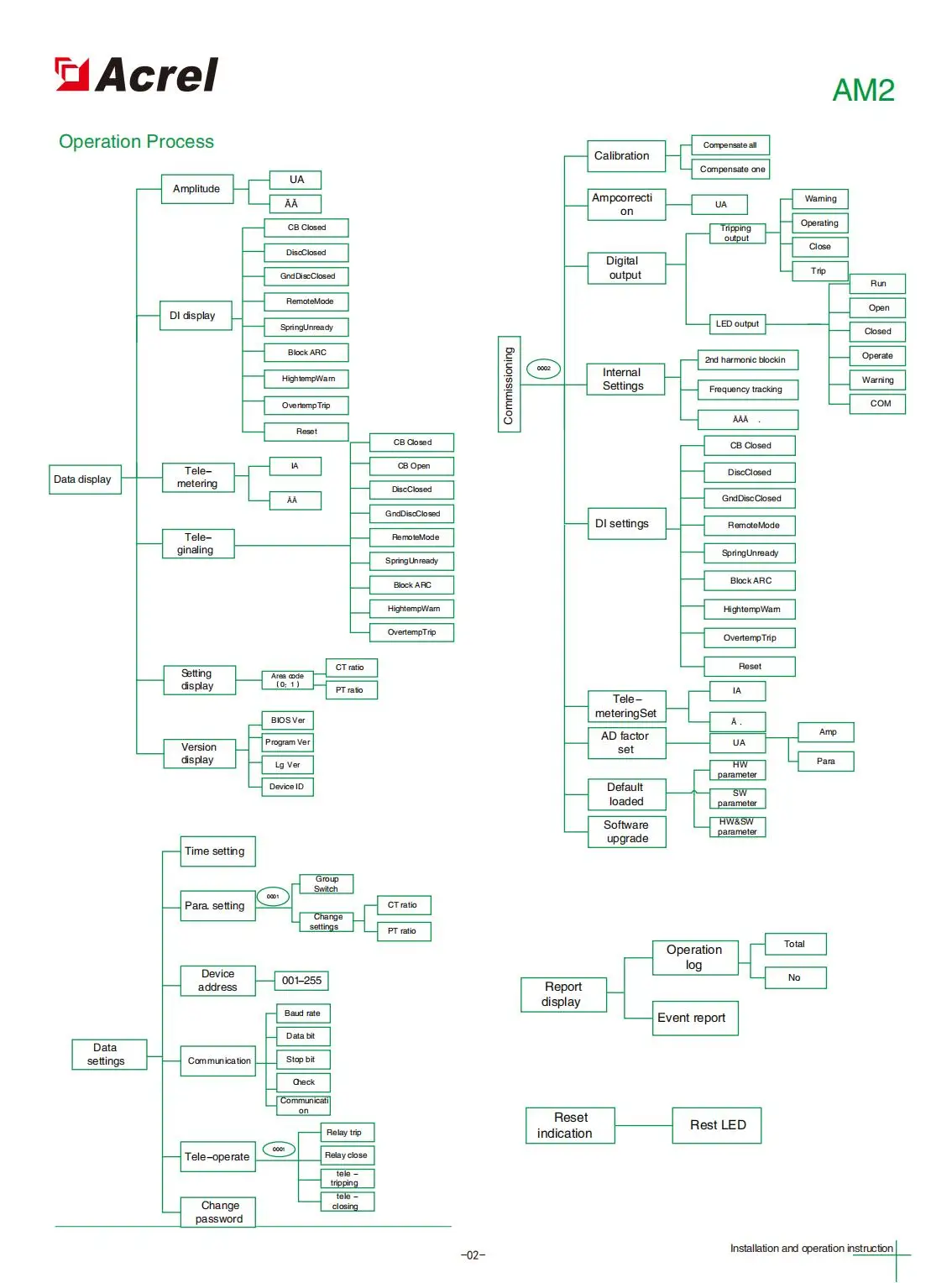

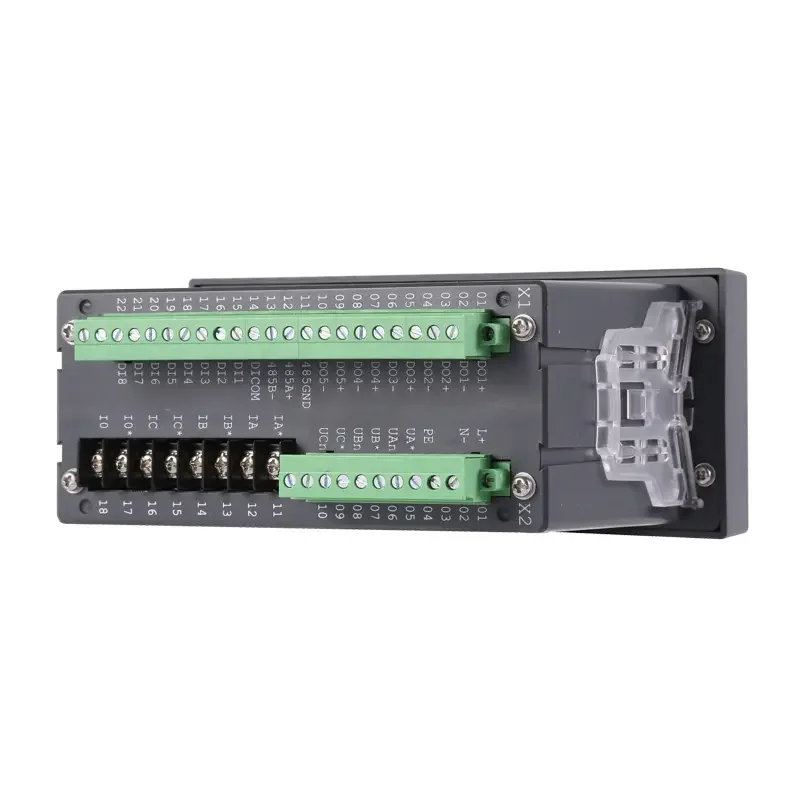

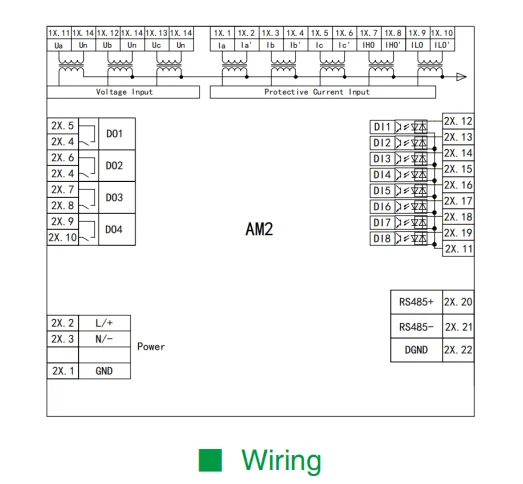

Wiring&Installation

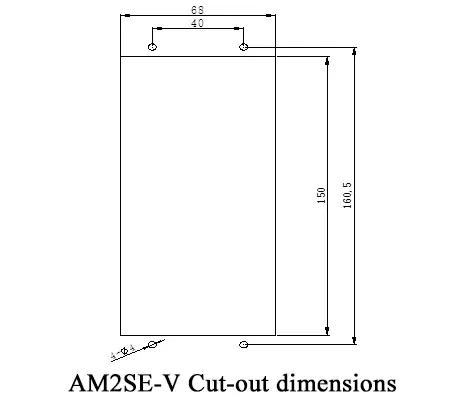

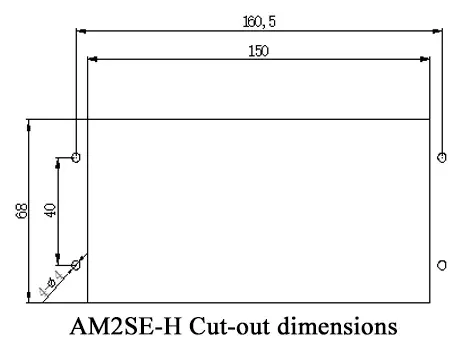

Dimension and Packaging

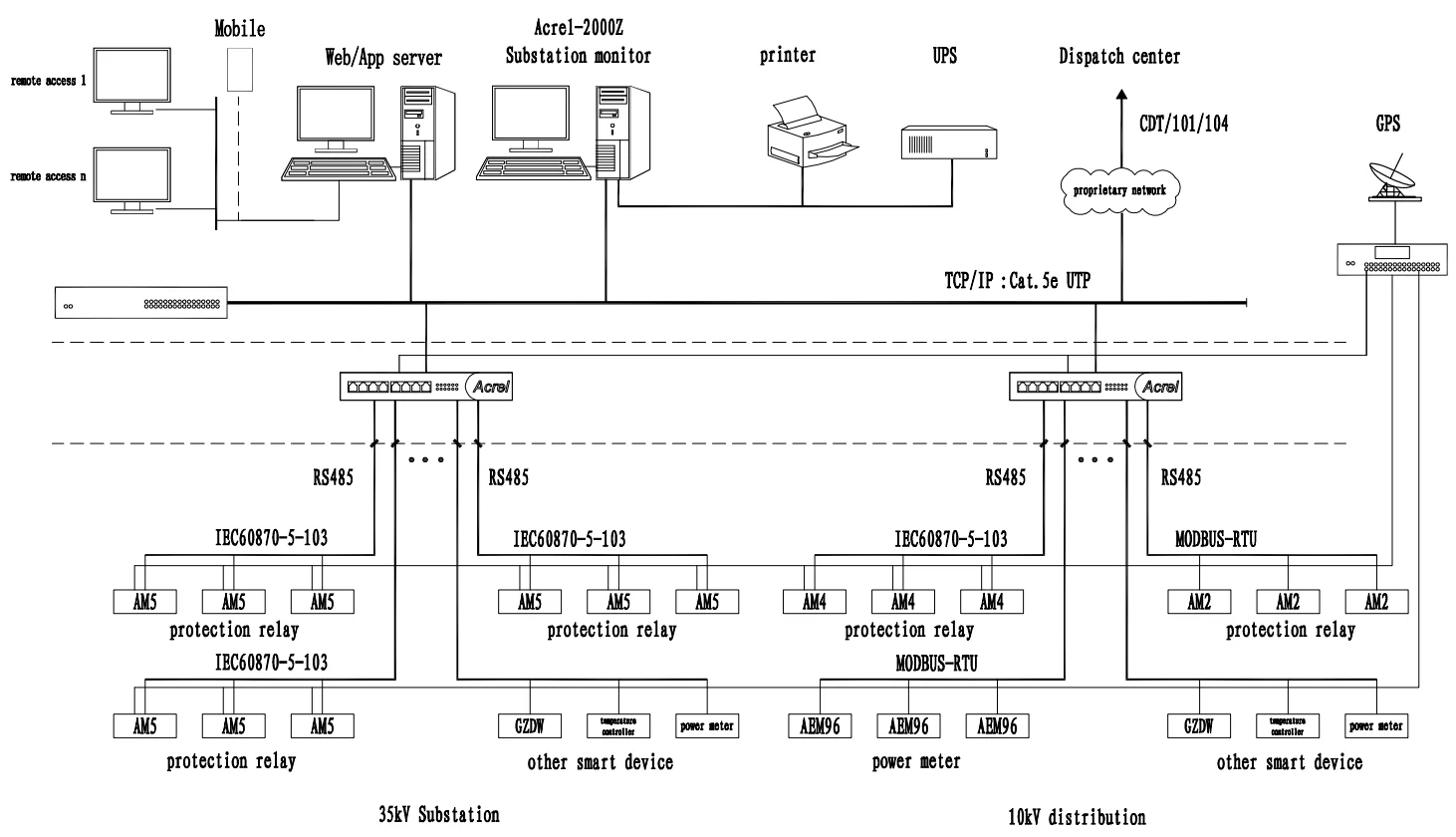

Solution Structure
