Metal Recycling Machines for Industrial Scrap
- Qingdao
- T/T L/C Other
- 20 days
You May Like
Product Details
| Brand Name | Shisheng Machinery | Place of Origin | China | |
| Model Number | XM290 | Certification | ISO9001/CE | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 12 month | |
| Weight | 750kg | Dimension(L*W*H) | 1400*1300*1650mm | |
| Condition | New | Voltage | 380V | |
| Power(W) | 5.5kw |
Product Description
Metal Recycling Machines for Industrial Scrap
Metal Recycling Machines for Industrial Scrap Introduction:
Metal Recycling Machines for Industrial Scrap is mainly used to briquette charcoal leftover, small pieces of charcoal, charcoal waste, etc. and make them be fully used to increase its economic value. The final briquette shape and size both can be customized from 25-60mm with oval, pillow and square shape as well as other favorite shapes in market. according to special requirement. In addition, the raw material range is very widely, like coal powder, fertilizer, salt, iron powder, and gypsum, chrome, copper, etc.
Metal Recycling Machines for Industrial Scrap Structure:
(1) We offer three types of pressure: spring disc, wedge block and hydraulic
Hydraulic type has larger pressure, even some uneasy shaping materials, such as dry powder, fertilizer, salt, etc, can also press in good shape, the pressure can be adjusted according to different raw material.

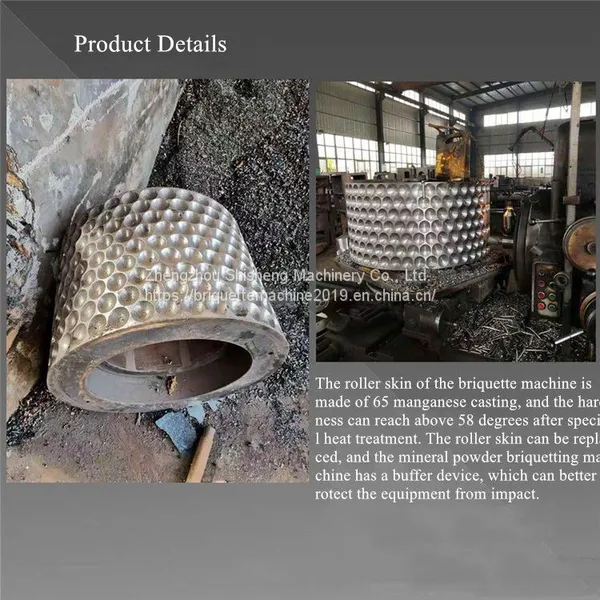

(2) Because charcoal powder is just a little light, easy to be molded. The roller material adopts 65Mn is enough. Normally, this kind of roller can use 8-10 month.
(3) We also produce Metal Recycling Machines for Industrial Scrap: in order to reduce density between charcoal powder and make best quality charcoal briquettes, we design four rollers charcoal briquette machine, which can press charcoal powder two times.
XM Series Coal Briquetting Machine
| Model | Reducer | Ratio | Roller Size(mm) | Main Shaft Speed(r/min) | Matched Power(kw) | Capacity(t/h) | Pressure Type |
| XM290 | ZQ350 | 1:31.5 | 290*200 | 12-14 | 5.5 | 0.9-1.0 | Constant Pressure |
| XM360 | ZQ350 | 1:31.5 | 360*250 | 12-14 | 7.5 | 1.5-2.0 | Constant Pressure/Hydraulic Pressure |
| XM400 | ZQ400 | 1:31.5 | 400*250 | 12-14 | 7.5 | 2.5-3.5 | |
| XM430 | ZQ400 | 1:31.5 | 430*250 | 12-14 | 11 | 3.5-4.5 | |
| XM500 | ZQ650 | 40.17 | 500*470 | 10-12 | 37 | 7.5-8.5 | |
| XM650 | ZQ850 | 40.17 | 650*470 | 9-11 | 45 | 9-10 | |
| XM750 | ZQ1000 | 40.17 | 750*570 | 9-11 | 90 | 13-14 | |
| XM850 | ZQ1250 | 50 | 850*570 | 8-10 | 110 | 15-17 | |
| Remarks: Above capacity is based on material specific gravity 0.8, briquette size: φ50*33mm | |||||||
| Roller material is 65Mn, high chrome alloy and 9Cr2Mo | |||||||
| According to different material adjust machine parameter to meet customer production | |||||||
KF Series Mineral Powder Briquetting Machine
| Model | Reducer | Ratio | Roller Size | Main Shaft Speed(r/min) | Matched Power(kw) | Capacity(t/h) | Pressure Type |
| KF500-371-280 | ZQ500 | 40.17 | 370*280 | 8-10 | 11 | 6.5-7.5 | Constant Pressure/Hydraulic Pressure |
| KF650-500-300 | ZQ650 | 40.17 | 500*300 | 8-10 | 37 | 8.5-9.5 | |
| KF850-650-300 | ZQ850 | 40.17 | 650*300 | 8-10 | 55 | 10.5-11.5 | |
| KF1250-750-350 | ZS1250 | 50 | 750*350 | 7-9 | 110 | 13.5-14.0 | |
| KF1450-850-350 | ZS1450 | 50 | 850*350 | 7-9 | 132 | 15.0-16.0 | |
| KF560-1000-350 | ZSY560 | 50 | 1000*350 | 7-9 | 150 | 17.0-20.0 | |
| Remarks: Above Capacity is based on material specific gravity 2, briquette size:φ50*33mm | |||||||
| Roller material is 65Mn, high chrome alloy and 9Cr2Mo. | |||||||
| According to different material adjust machine parameter to mmet customer production | |||||||
YHG Series Dry Powder High Pressure Briquetting Machine
| Model | YHG-0.5 | YHG-1.5 | YHG-3.0 | YHG-5.0 | YHG-8.0 | YHG-10.0 |
| Roller Diameter(mm) | φ299 | φ367 | φ522 | φ738 | φ760 | φ858 |
| Roller Width(mm) | 180 | 183 | 196 | 210 | 225 | 300 |
| Capacity(t/h) | 0.5 | 1.2-1.4 | 2.5-3.0 | 4.5-5.5 | 7.5-8.5 | 8.0-9.5 |
| Main Reducer | ZQ650 | ZQ850 | ZS1250 | ZS1450 | ZS1650 | ZS1650 |
| Main Motor | 18.5 | 37 | 55 | 75 | 90-110 | 110-132 |
| Pre-pressure Motor(kw) | 7.5 | 11 | 15 | 18.5 | 18.5 | 22 |
| Pre-pressure Reducer | WHC-125 | WHC-160 | WHC-200 | WHC-210 | WHC-210 | WHC-250 |
| Remarks: Above capacity is based on material specific gravity 1.3, briquette size: φ35*30*20mm | ||||||
| Roller material adopts 9Cr2Mo | ||||||
| Pre-pressure motor is speed motor | ||||||
