Super five six shielding network cable Large square large current power cable Zero buoyancy integrated cable salt water proof cable
Zero buoyancy integrated line application range:
Large square large current power cord can be selected 16, 20, 25, 30, 35, 50, 70, 90, 120 square, the specific specifications can be selected according to user requirements. Network cable can choose super five or six types of high-flexibility shielding network cable, network cable and power line together will have interference, the general network cable needs to do separate shielding, shielding method has a separate aluminum foil shielding and aluminum foil tinned copper mesh shielding, the latter anti-electromagnetic interference effect is better. Anti-seawater cable is used for underwater monitoring, mapping, exploration, such as underwater robots, underwater unmanned gliders, all kinds of submersible motors, etc., for the investigation of offshore oil resources, as the special requirements of offshore oil drilling platforms cable use, as the use of warships and ships cable
Zero buoyancy integrated line Product features:
Zero buoyancy anti-seawater cable has a light weight, using the new improved production process, the cable has a smaller outside diameter, bending radius is smaller, can be suitable for more complex applications. In addition, the tensile strength of the cable is high, the tensile strength can be customized according to user requirements, and the high-density tinned copper mesh braided shielding has the anti-interference effect of the cable.

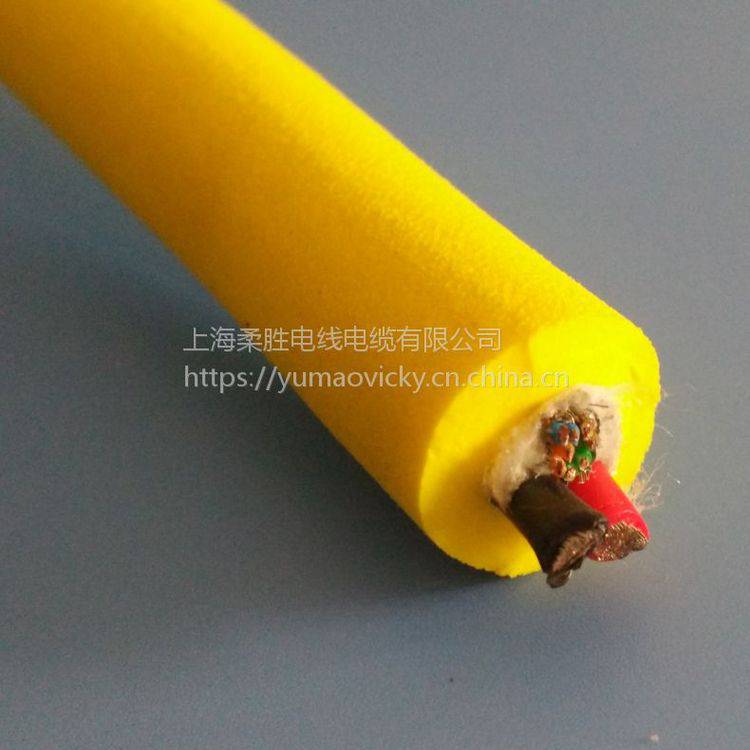

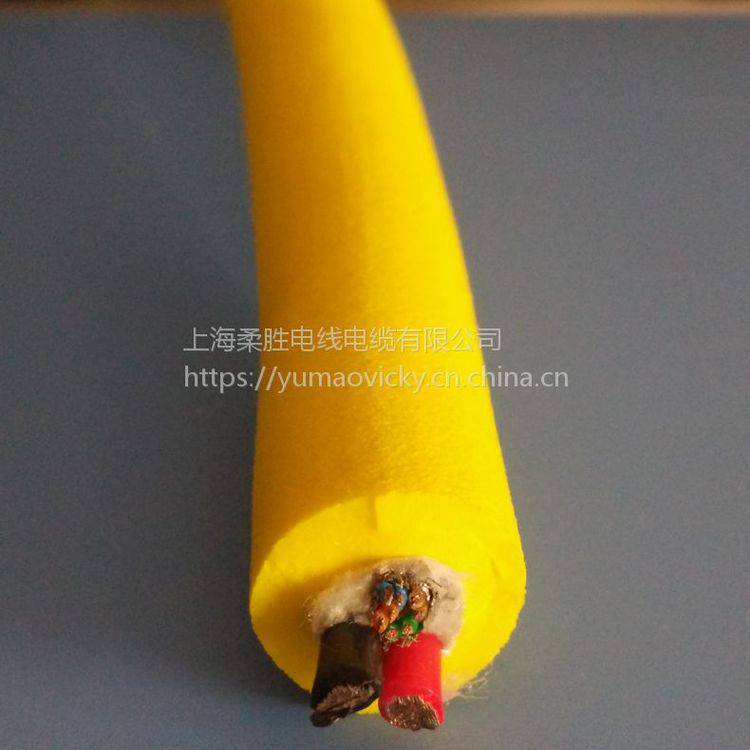

Zero buoyancy integrated line structure:
Conductor: multi-strand ultrafine stranded oxygen-free copper wire
Insulation: special waterproof PE material
Color: core line color separation or number separation, yellow and green lines are optional
Shielding: tinned copper wire textile shielding
Density: more than 85%
Sheath: Foamed polyurethane (PUR)
Color: Black, gray, orange
Rated voltage: 300/300V
Test voltage: 2500V
Operating temperature range:
Fixed installation -30℃ to +85℃
Mobile installation: -20℃ to +85℃
Bending radius:
Fixed installation: 5 x cable diameter (D)
Mobile installation: when the travel is less than 10 meters, the bending radius is 7.5×d; When the stroke is ≥10 meters, the bending radius is 10×D
Product customization description:
We can customize various types and specifications of special purpose wire and cable according to customer requirements, customers provide samples or design drawings, our company can process according to the drawing and sample, and inform the user in time, for the need to optimize our company will communicate and negotiate with the user in time, if it can not be processed, we will inform the user in time and return the sample. Technical support, Mr. Gong, tel: 13482197396, Q2939591145, WEIXIN13482197396.
