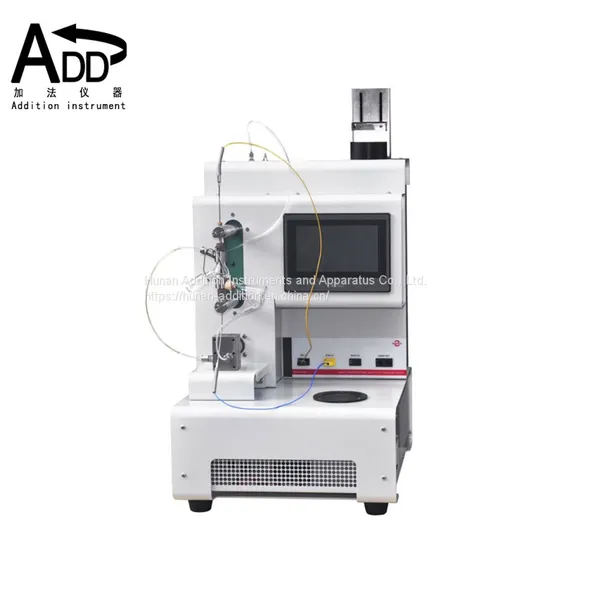

ASTM D7097 MHT Engine Oil High Temperature Oxidation Deposit Tester

Engine Oil High Temperature Oxidation Deposit Tester (MHT)

Product Model: JF0750

Product Introduction

The instrument is used for the thermal oxidation simulation test of engine oil. The mixture of the sample and catalyst is fully mixed evenly, and a quantitative amount of air is introduced. The sample flows down the metal coil on the deposition rod, and circulates for 24 hours. Deposit bars to evaluate the tendency of engine oils to form deposits under high temperature oxidizing conditions.

Technical Parameter

1. Applicable standard: ASTM D7097

2. Test temperature: Rt～500℃±2℃

3. Test time: 24 hours

4. Sample size: 8.4 grams

5. Pump flow rate: 0.25 g/min

6. Gas flow rate: 10ml±0.2ml

7. Working power supply: AC220V 50Hz

8. Instrument size: 450*450*560mm

9. Net Weight:55kg

  Main Feature

1. The instrument can replace similar products at home and abroad;

2. The main components are made of high-quality products (temperature controller, deposition rod, gear pump, flow sensor, etc.);

3. The instrument can set the working time, and it will automatically stop after the test;

4. The instrument can be tested by ASTM D6335, SH/T0750 method by adding parts;

5. The instrument is equipped with a catalyst magnetic mixing device, which can set the mixing time and mixing speed;

6. Automatic electronic flow controller, accurately control the gas flow 10ml±0.2ml/min;

7. All parameter settings can be performed on the touch screen, and the test can be started with one key after completion.
