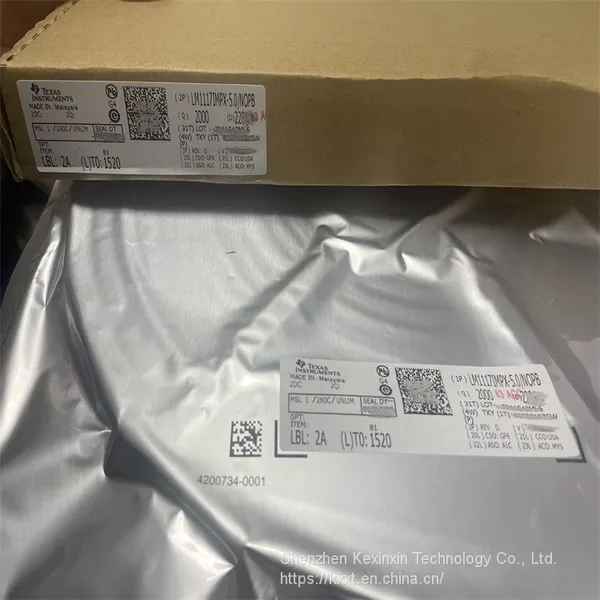

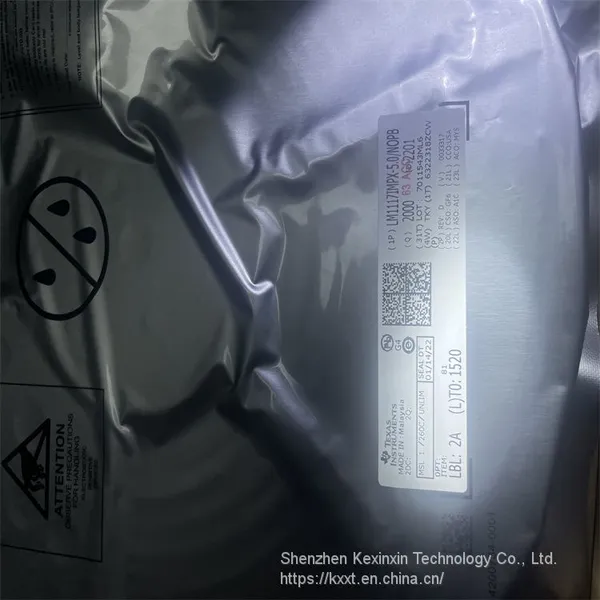

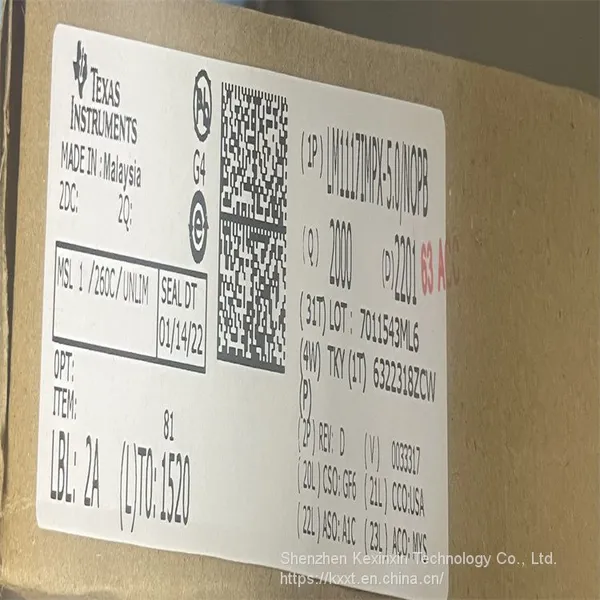

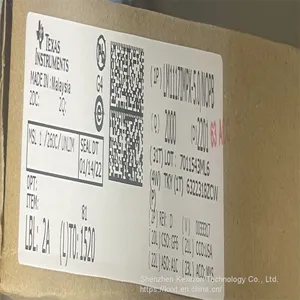

Help CenterLM1117IMPX-5.0/NOPB Texas Instruments LDO Voltage Regulators 800mA LDO Linear Reg
Related Products
-
RT9193-33GB 300mA, Ultra-Low Noise, Ultra-Fast CMOS LDO Regulator RichtekUS$ 0.06 - 0.2MOQ: 10 Pieces -
SPX1117M3-L-3-3/TR Maxlinear LDO Voltage Regulators 800mALOW DROPOUTUS$ 0.06 - 0.3MOQ: 10 Pieces
-
6206-2.8v 250mA Low Voltage Differential Linear Regulator YongyutaiUS$ 0.005 - 0.3MOQ: 10 Pieces
-
RT9193-33GB Richtek LDO Voltage Regulators 300mA, Ultra-Low Noise, Ultra-Fast CMOS LDO RegulatorUS$ 0.07 - 0.44MOQ: 10 Pieces
-
MD5350 SOT-89-3 Low Voltage Differential Low-power LDO CMOS Voltage Stabilizing CircuitUS$ 0.05 - 0.4MOQ: 10 Pieces
Mfr. #:
LM1117IMPX-5.0/NOPB
Manufacturer: Texas Instruments
Product Category: LDO Voltage Regulators
RoHS: Details
Mounting Style: SMD/SMT
Package / Case: SOT-223-4
Output Voltage: 5 V
Output Current: 800 mA
Number of Outputs: 1 Output
Polarity: Positive
Quiescent Current: 15 mA
Input Voltage, Min: 2.6 V
Input Voltage, Max: 15 V
PSRR / Ripple Rejection - Typ: 75 dB
Output Type: Fixed
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 125 C
Dropout Voltage: 1.2 V
Series: LM1117
Packaging: Reel
Packaging: Cut Tape
Packaging: KXXReel
Brand: Texas Instruments
Dropout Voltage - Max: 1.3 V at 100 mA, 1.35 V at 500 mA, 1.4 V at 800 mA
Ib - Input Bias Current: 5 mA
Line Regulation: 1 mV
Load Regulation: 1 mV
Operating Supply Current: 5 mA
Operating Temperature Range: - 4
Product: Linear Regulators
Product Type: LDO Voltage Regulators
factory pack quantiy: 2000
Subcategory: PMIC - Power Management ICs
Type: Low Dropout Positive Regulator
Voltage Regulation Accuracy: 1 %
Unit Weight: 0.010229 oz
Send Inquiry to This Supplier
